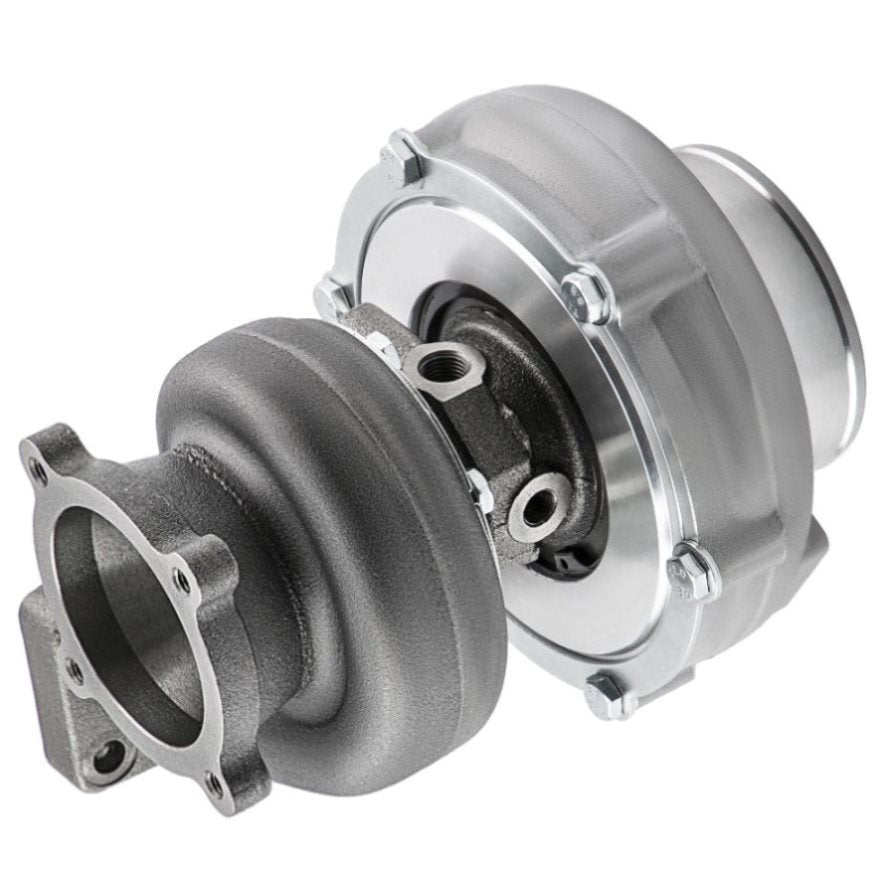

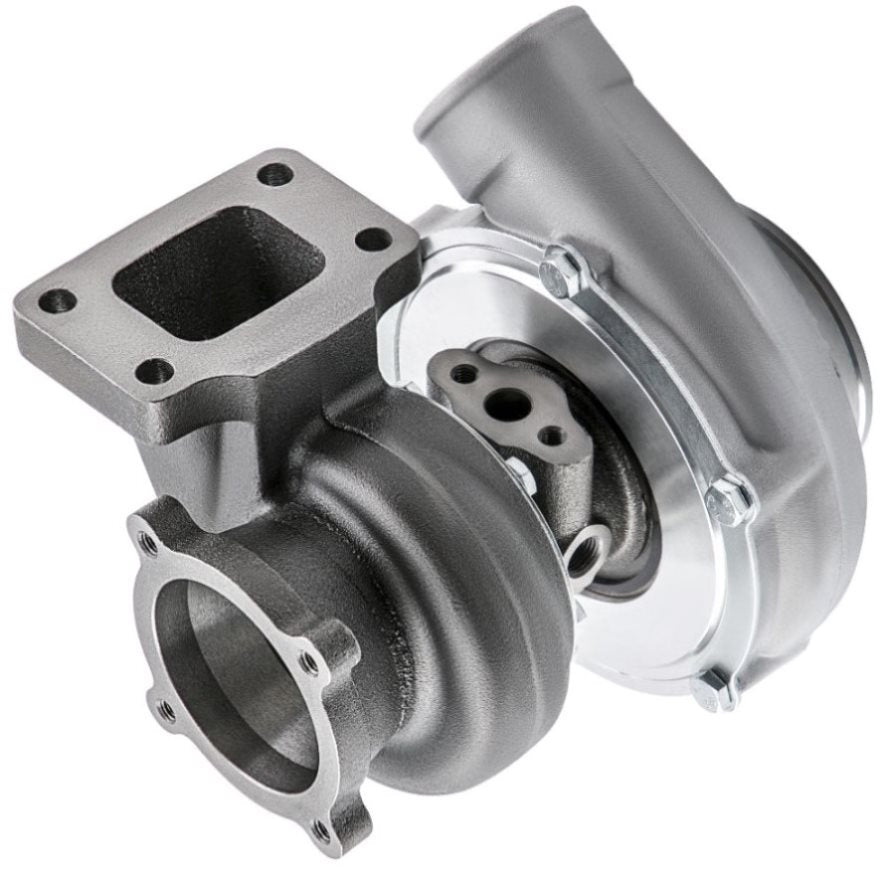

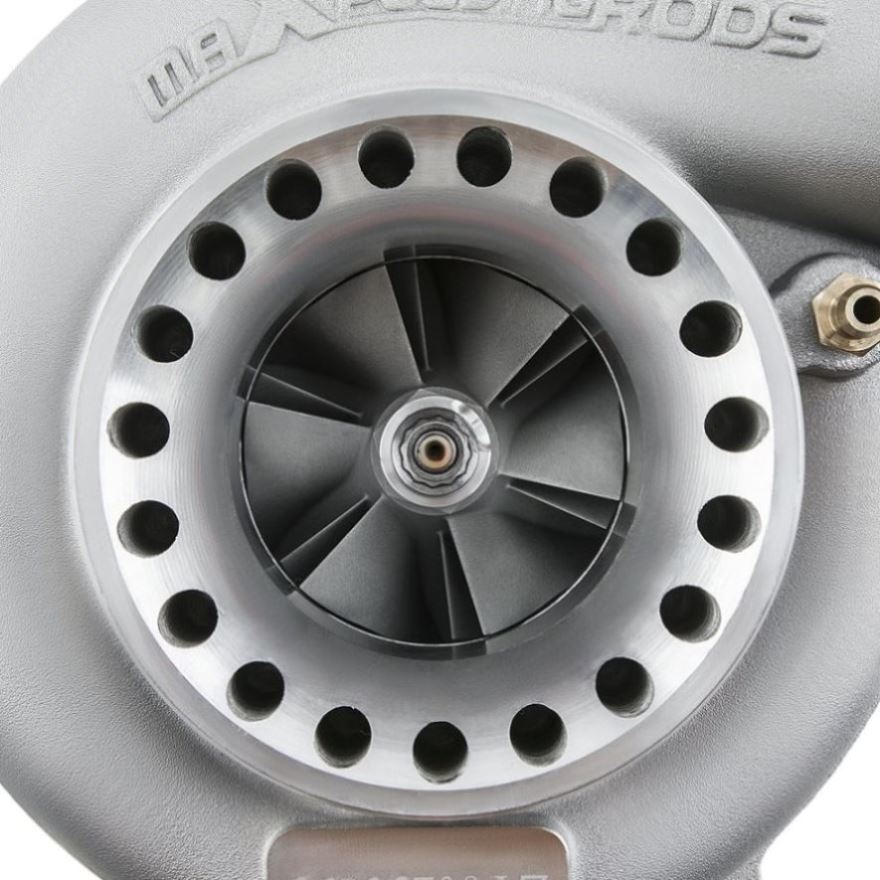

FIT for T3 GT3582 GT35 type A/R 0 .63 0.7 Anti Surge Turbocharger anti surge housing 83750531
Application
Perfect fit for all 4/6 cylinder and 2.5L-6.0L engines
Horse Power: Capable of Boosting Horse Power up to 600HP
*Notice: Please confirm that there is enough space in your car to install this turbo before purchasing.
Specification

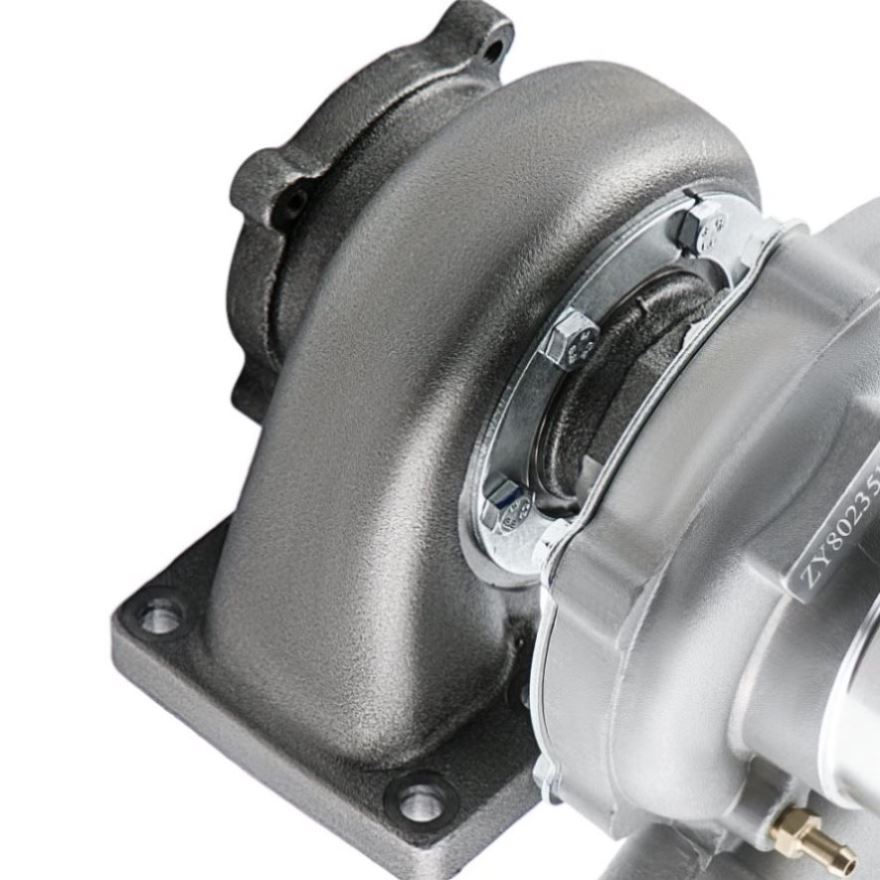

Turbine Side:

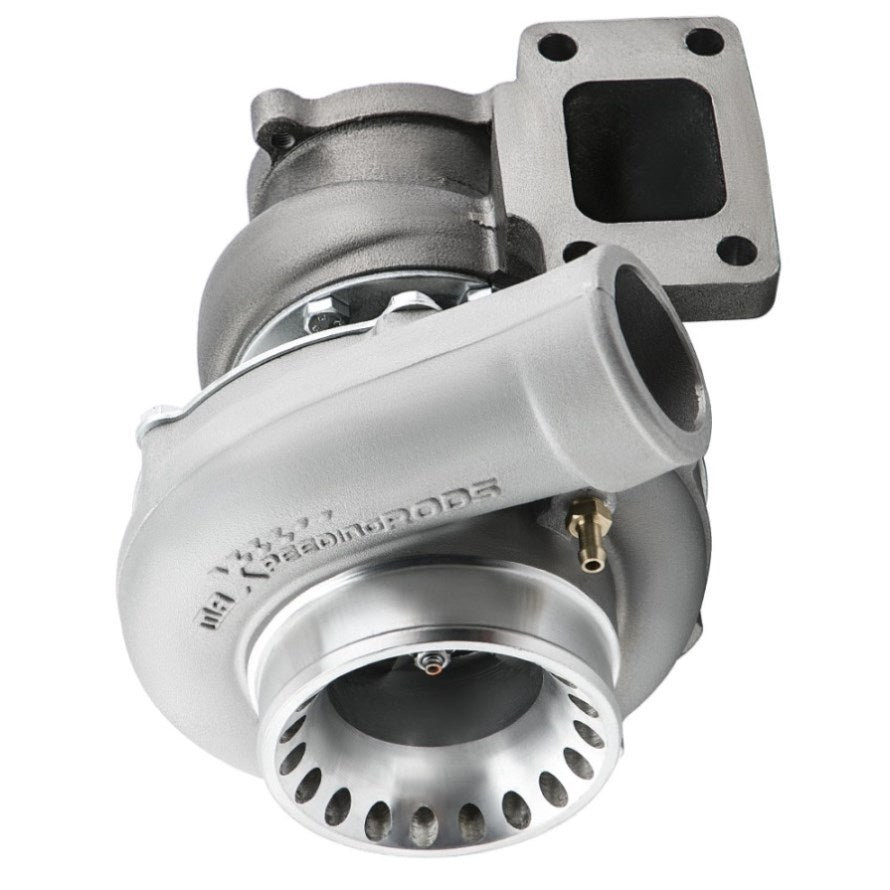

Exhaust Inlet Flange: T3 Flange

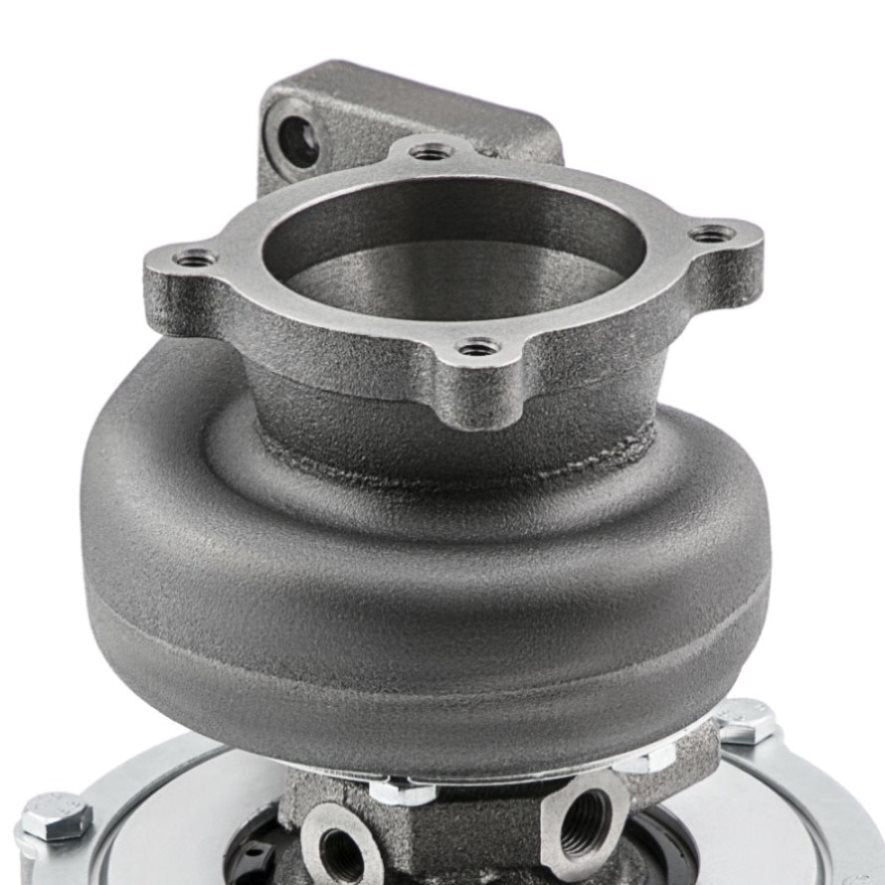

Exhaust Outlet Flange: 4-Bolt
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm

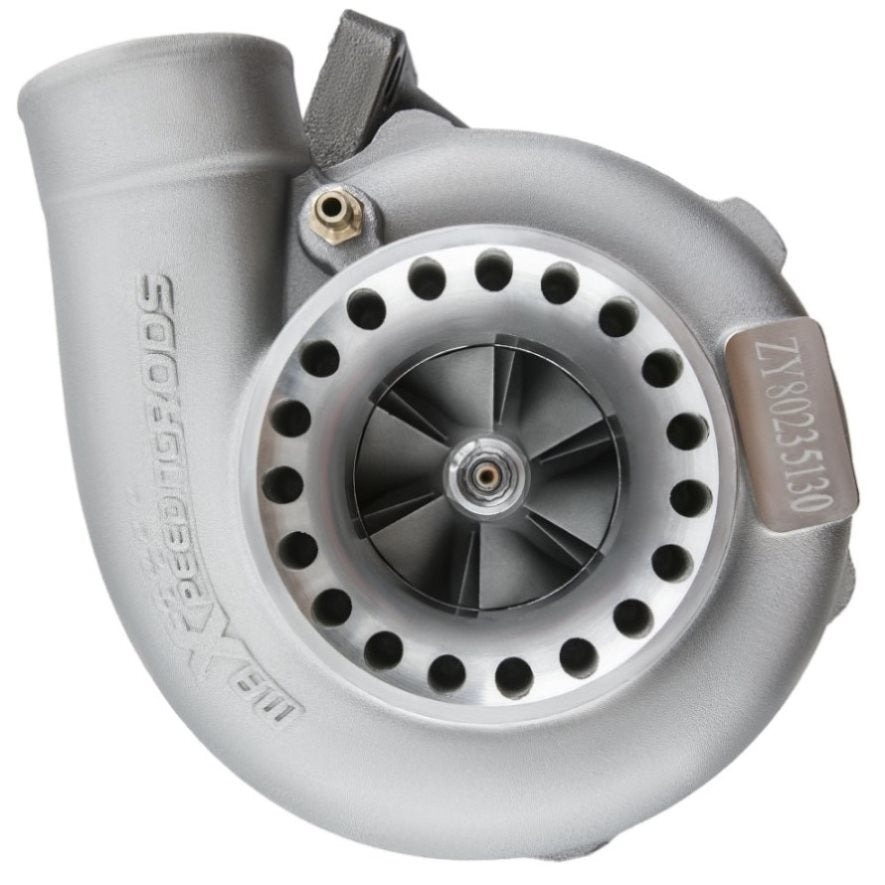

Compressor Side:
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)
Bearing Type: Floating/Journal Bearing
Thrust bearing: 270 degree
Cooling Type: Water + Oil Cooling
Horse Power: Up to 600HP
Turbo Type: Individual
Wastegate: W/O Wastegate
Oil feed/inlet: M10*7/16-24
Oil drian/outlet: M14.1 & 2*M8*1.25
Water inlet/outlet: M14* 1.5
Maximum PSI: 22
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Pakage Size: 26 x 25 x 23 cm
Pakage Weight: 8350g
Package included
1 xTurbocharger
2 x Flange gaskets
2 x Oil feed/drain gaskets
Features
Product Material:
1. Turbine housing : Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius

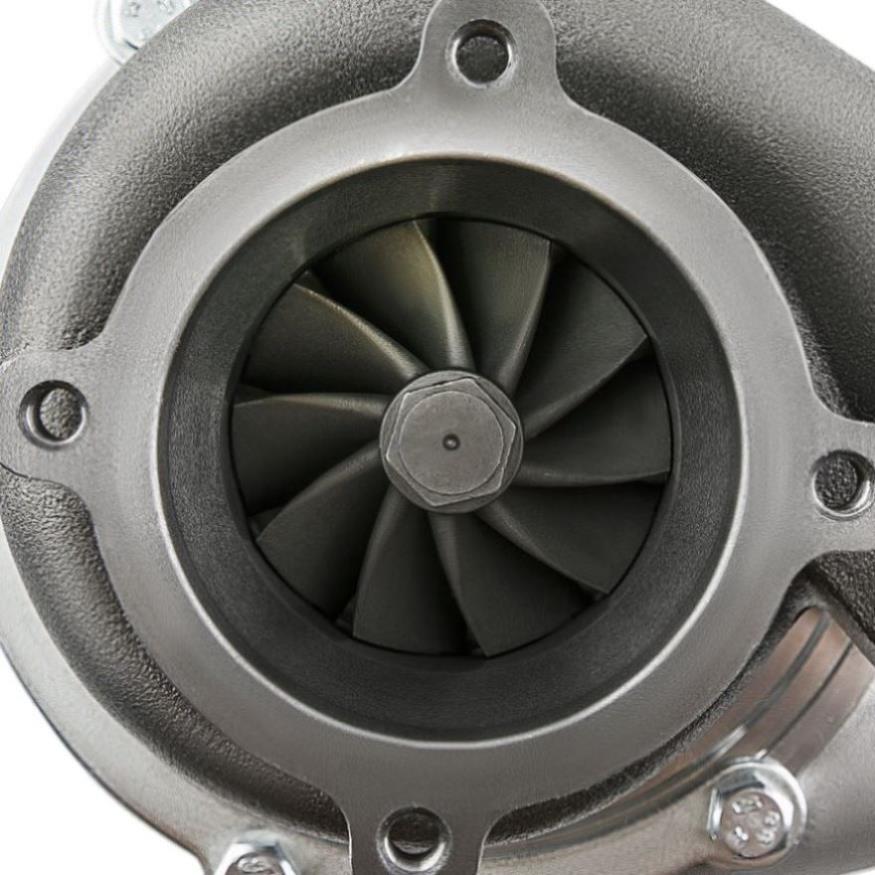

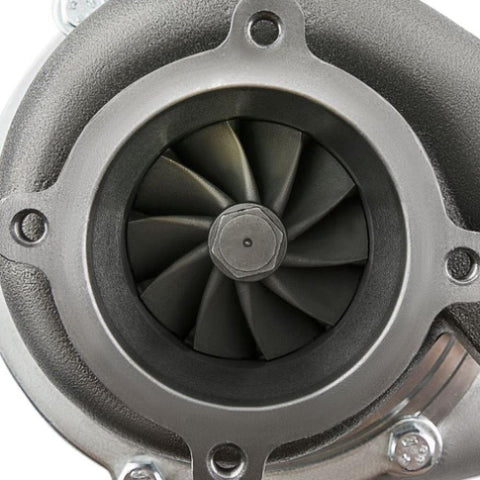

2. Steel Turbine Wheel: Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius
3. Compressor housing: ZL104 aluminum
4. compressor wheel/blades: Cast aluminium with good gas tightness and corrosion resistance
5. Max HP: UP to 600hp
product Feature:
*Product Material
1. Turbine housing : Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
*Product Features
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Installation Notice
We highly recommend you make sure the points below before installing:
1.Replace the air filter: if the if the air filter is not replaced may cause the compressor wheel damage.
2.Replace the engine oil: Because floating bearing and turbocharger will be damaged by impurities in the old oil.
3.After large overhaul, the engine cannot be replaced with a new turbocharger because there are too much impurities in oil after overhauling which will damage the replacement turbocharger immediately.
Please run the old turbocharger for 7-10 days and then replace to new turbocharger and new engine oil.
