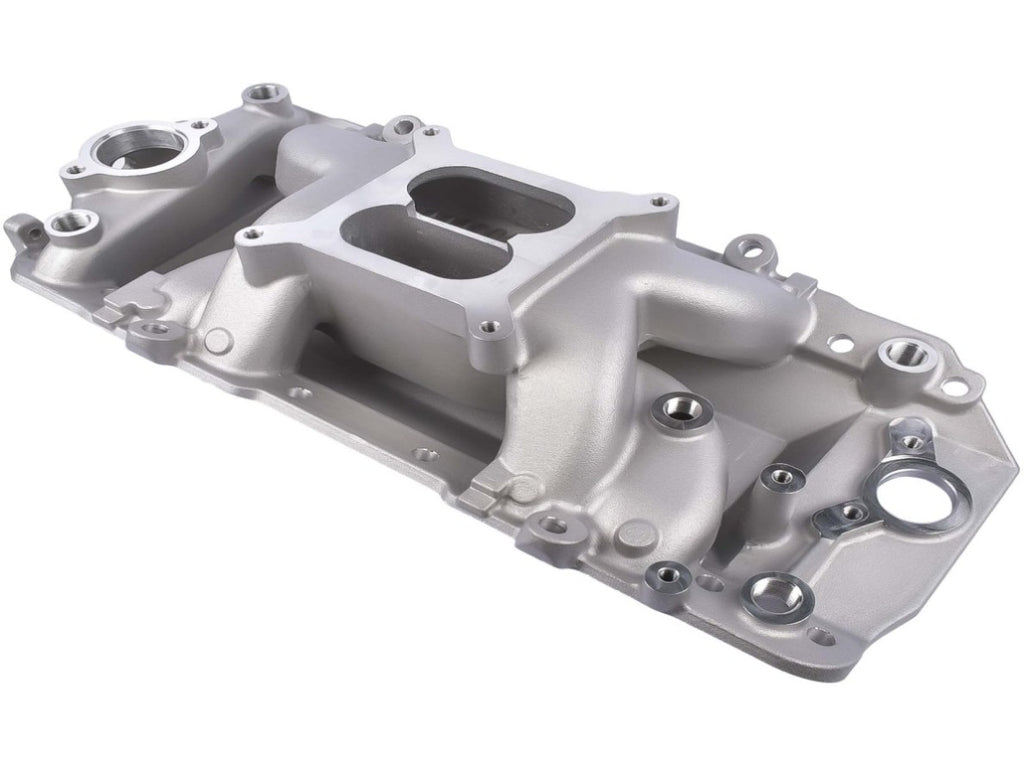

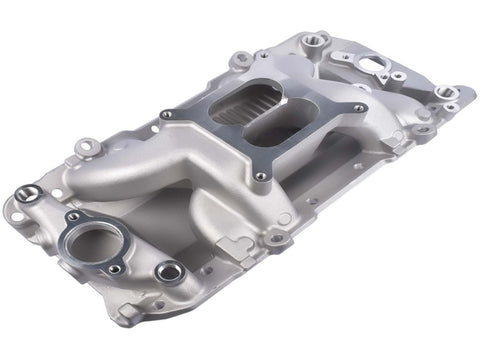

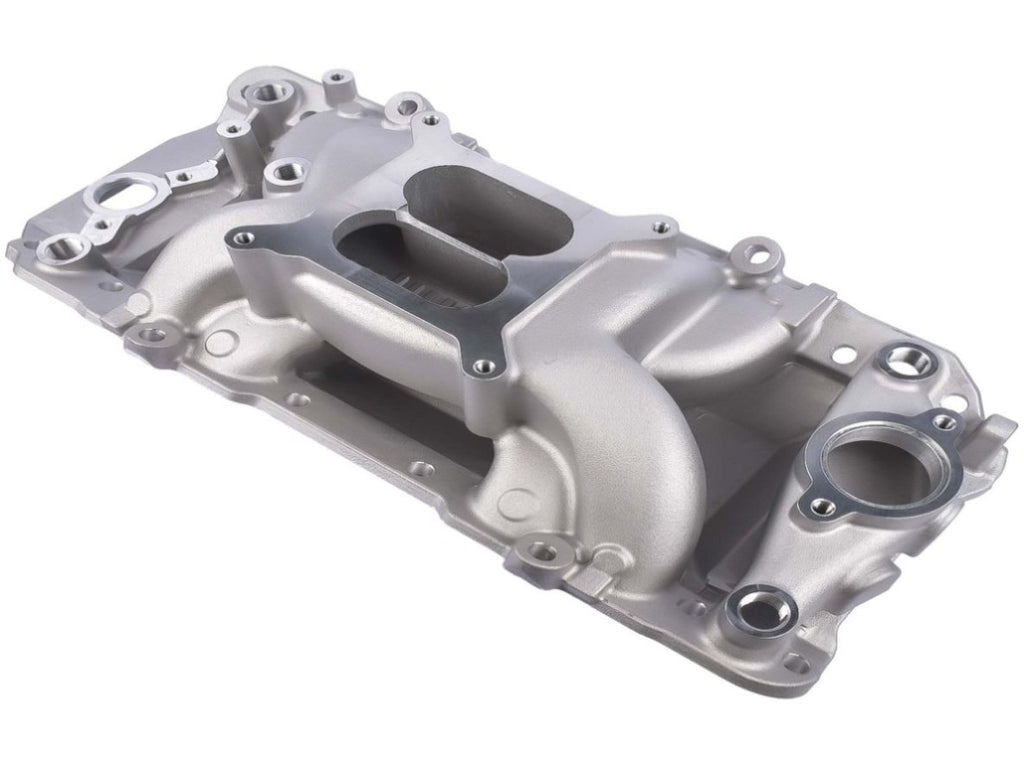

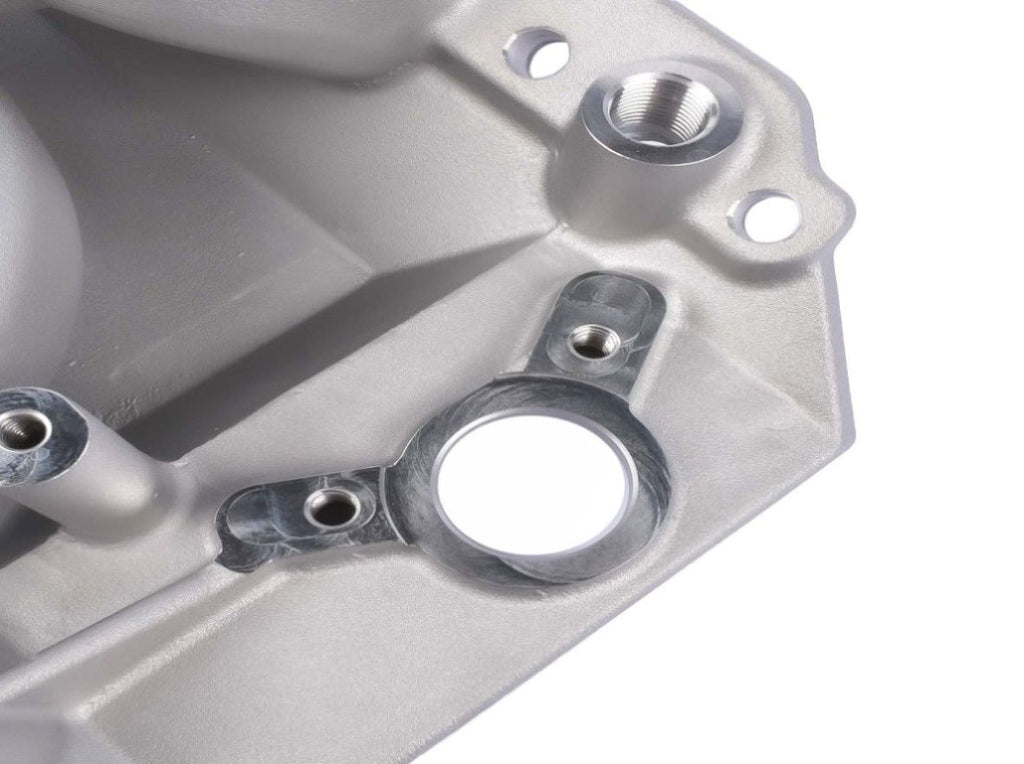

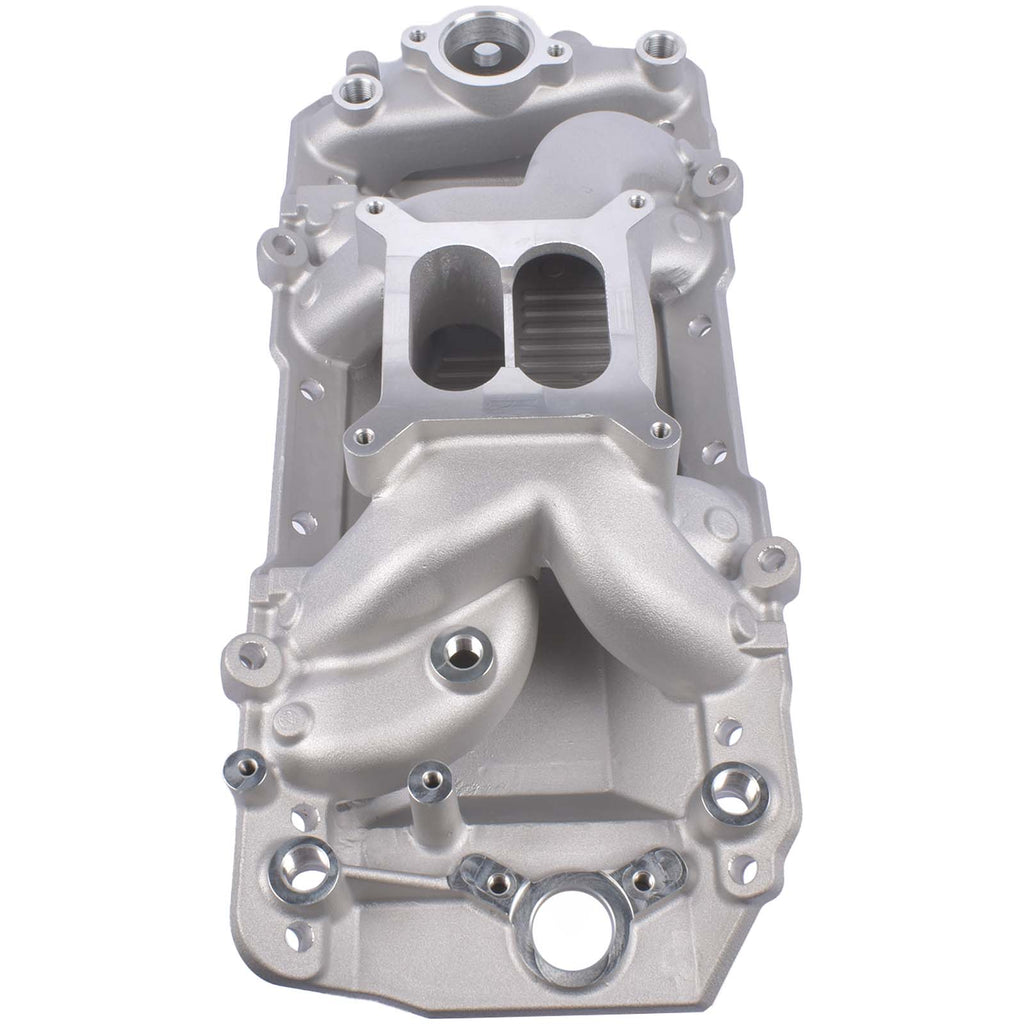

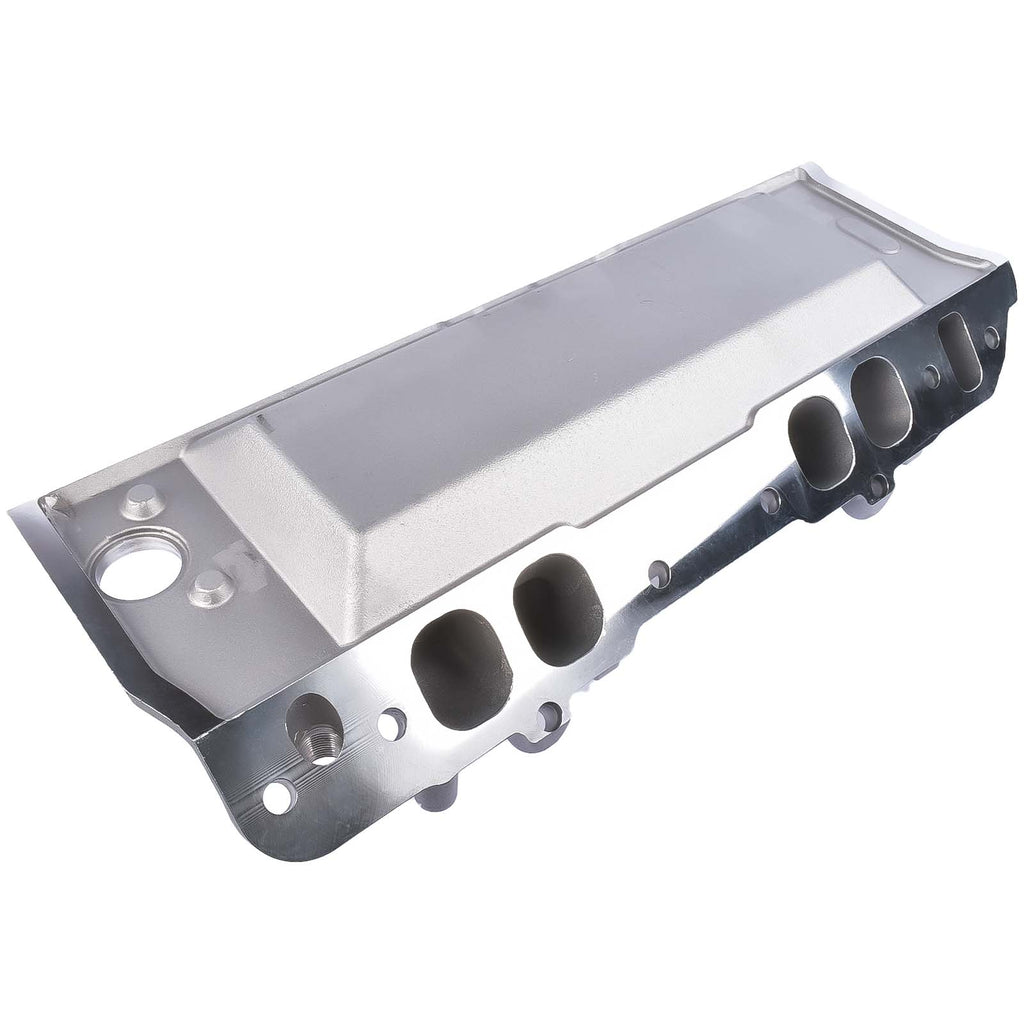

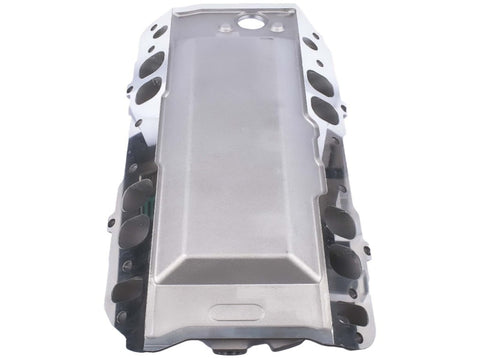

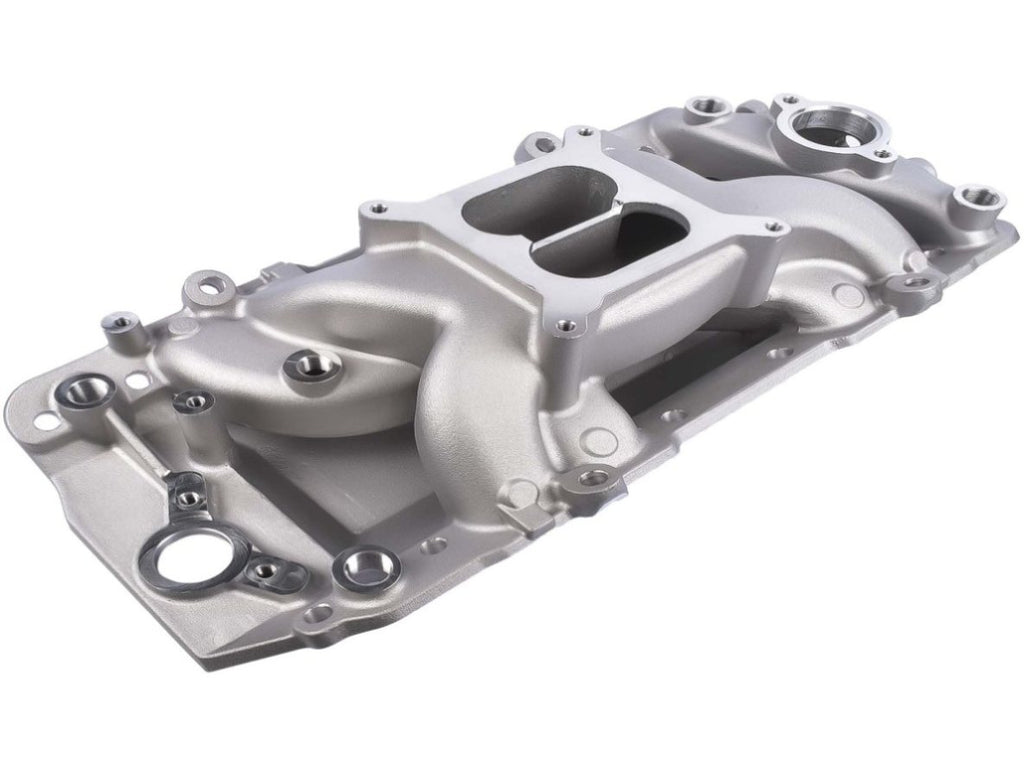

Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793

Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793
Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793
Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793
Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793
Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793
Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793
Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793
Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793
Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793
Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793
Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793
Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793
Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793
Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793
Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793
Fits for Chevy Big Block V8 396 402 427 454 4-barrel Bore Oval port Dual Plane Intake Manifold Air 76555793
SKU: GT-76555793
  • Sale
  • $284.75
Tax is calculated at next step but shipping is free.

OEM Part Number

1-147-019, PCE147.1034, 53026



Fit For the Following Models

Fits for Chevrolet 1965-1970 ▪Chevy Big Block, V8, 6.5L/396
Fits for Chevrolet 1970-1972 ▪Chevy Big Block, V8, 6.6L/402
Fits for Chevrolet 1966-1969 ▪Chevy Big Block, V8, 7.0L/427
Fits for Chevrolet 1970-2000 ▪Chevy Big Block, V8, 7.4L/454



Product Specifications:
Condition: New
Intake Material: Aluminum
Intake Style: Dual Plane
Carburetor Mounting: 4-barrel spuare bore
Cylinder Head Style: Oval port

Package Includes:

1x Intake Manifold

Manifold Features:

  • Satin finish
  • Oval port intake
  • 180° dual plane high rise design for outstanding power from 1500 to 6500 RPM
  • Cast-in bosses on intake runners can be drilled & tapped for use w/ nitrous injectors
  • Square bore carb bolt pattern for the 4150/4160 style carburetor
  • Ideal port position - allows custom porting for maximum power
  • Dual distributor hold-down provisions for  extra protection against distributor  rotation
  • Four corner water outlets

 180° high rise design, big power over a wide RPM range. For use with square bore style carbs. No provision for exhaust heated choke or exhaust crossover. Provides standard bosses and tapped holes for street accessories such as A/C and alternator brackets. Not EGR equipped.
