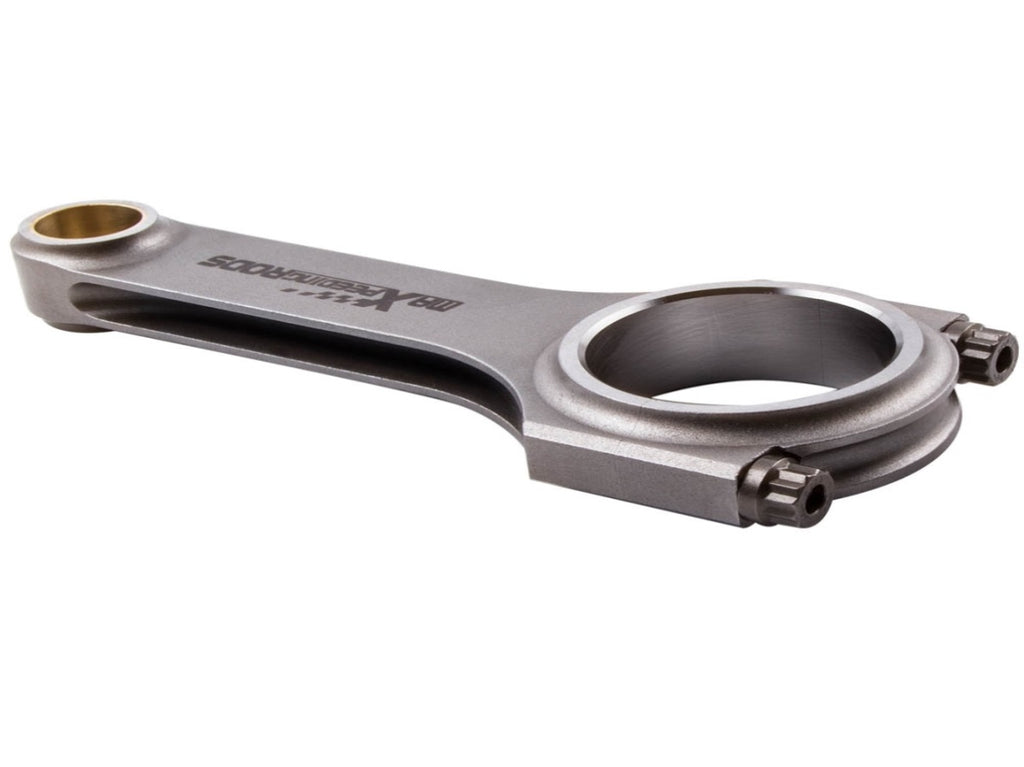

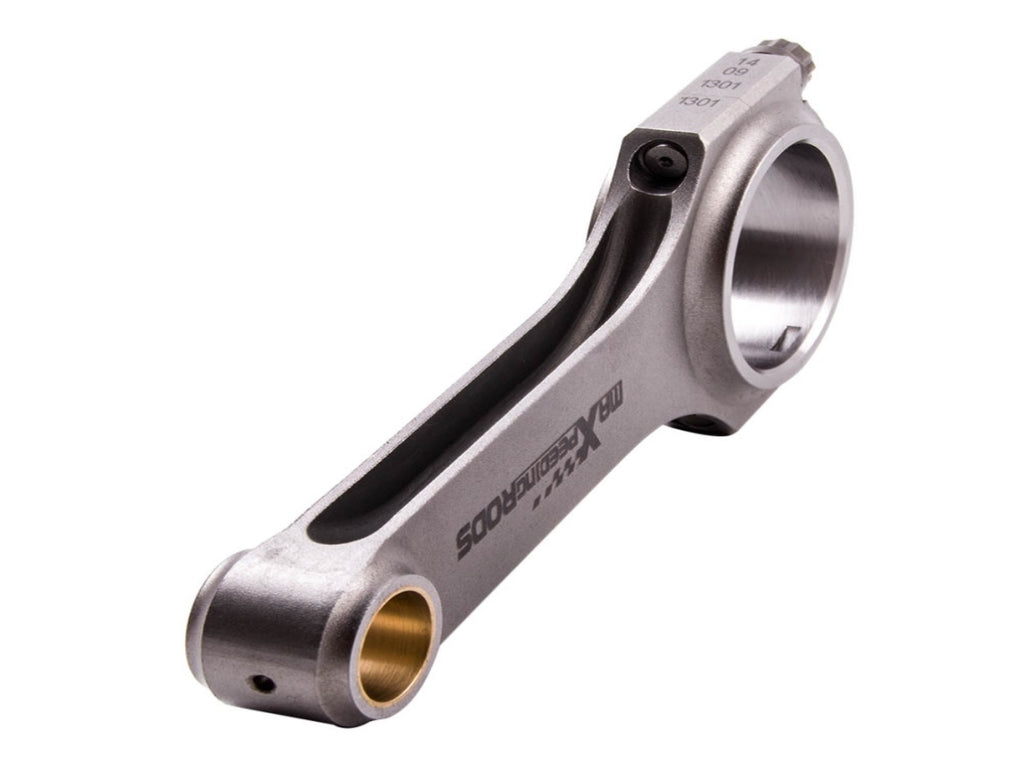

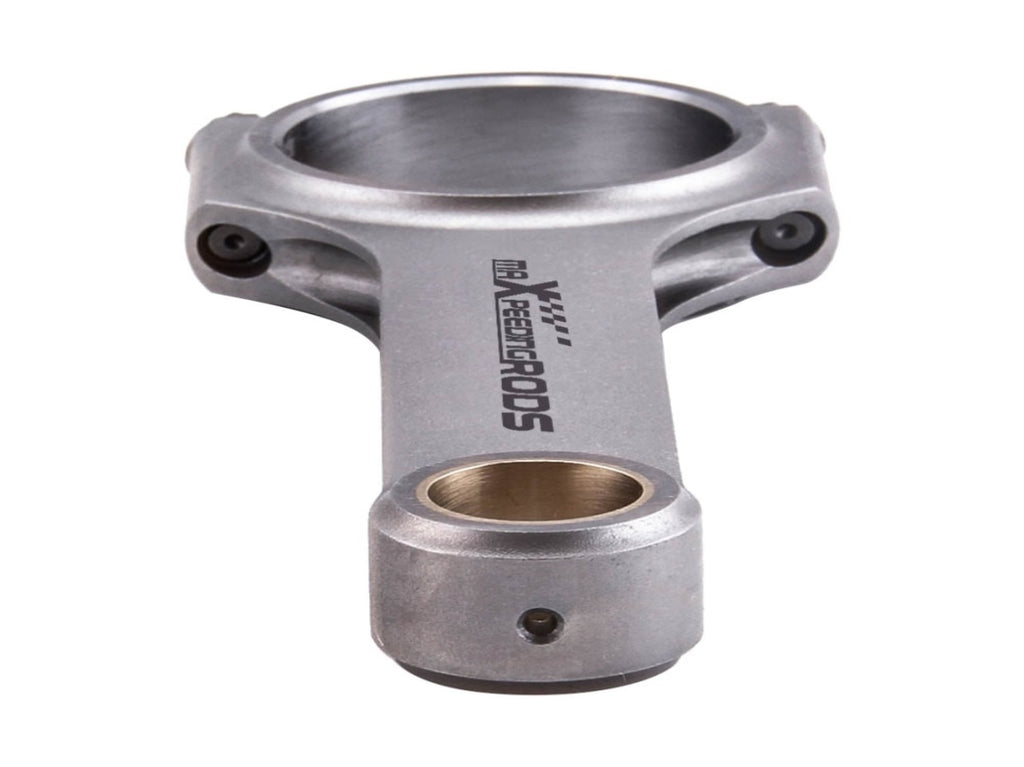

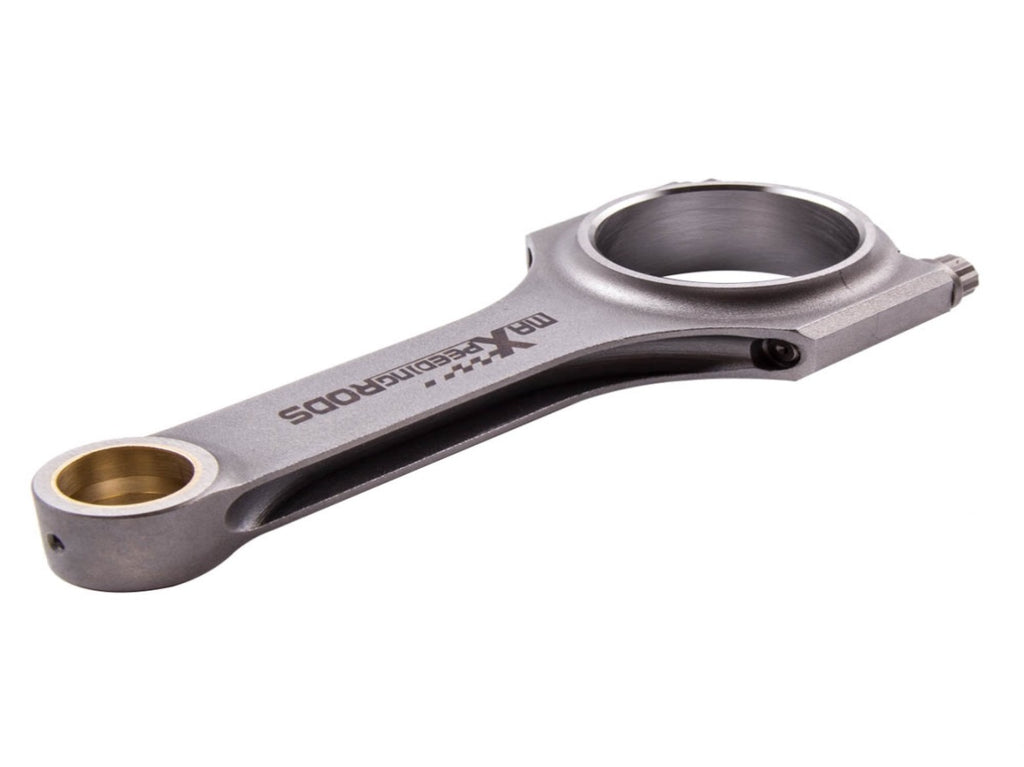

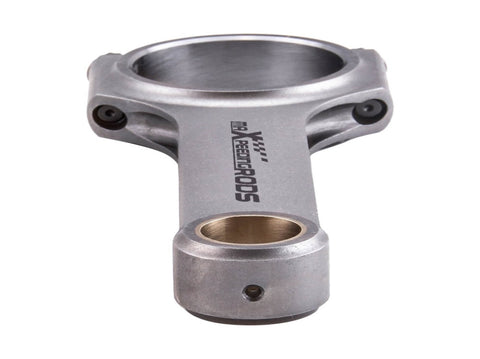

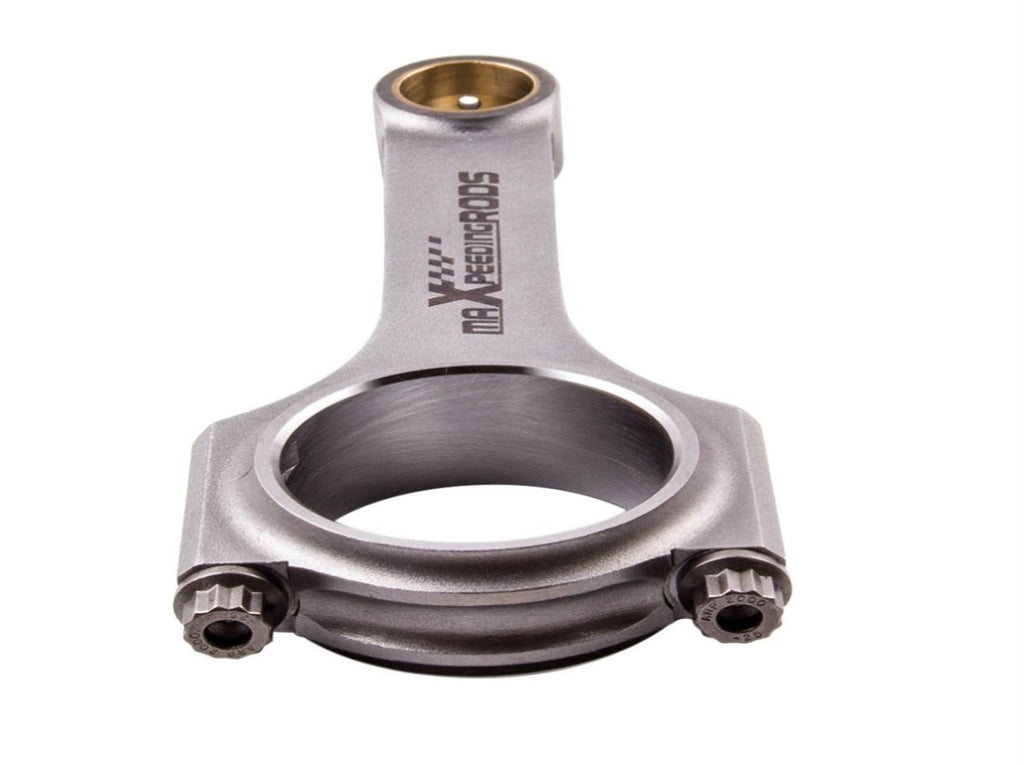

Forged 4340 Connecting Rods fit for Subaru Impreza Legacy EJ20 EJ25 Conod ARP Bolts 83035472

Application

Fits fit for Subaru EJ Series Engines: EJ20, EJ22, EJ25, EJ205, EJ207, EJ255, EJ257

Dimension

Connecting Rod Length Center to Center: 130.50mm/5.137in
Approximate Connecting Rod Weight: 571g
Big End Bore Diameter: 55.00mm/2.165in
Pin End Bore Diameter: 23.00mm/0.905in
Big End Width: 21.40mm/0.843in
Small End Width: 21.40mm/0.843in
Pin Type: Floating Pin Piston

Specification

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced fit for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

Performance Ratings

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9,000rpm

Packaging

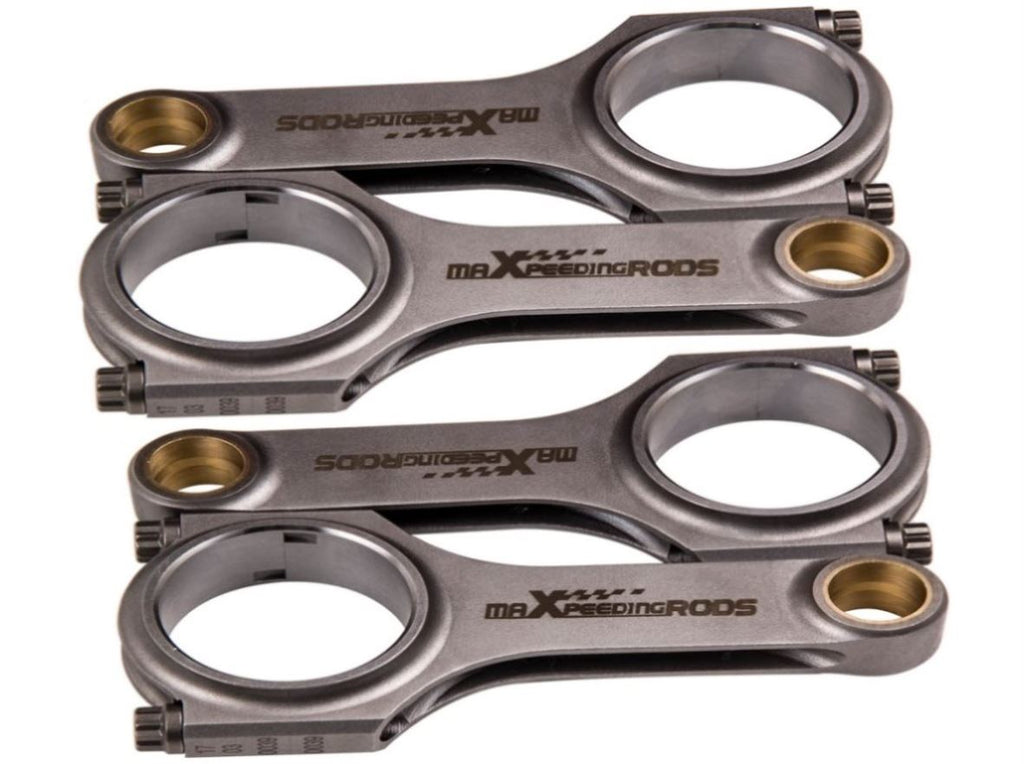

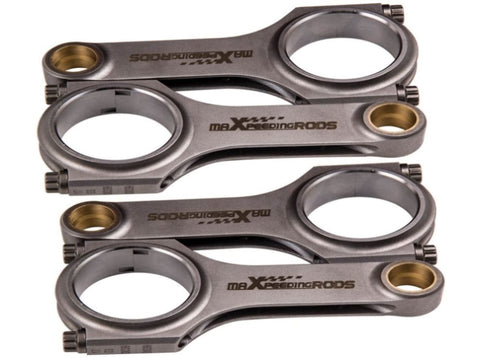

Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM
