Front & Rear Coilover Lowering Kit Fit For Toyota Corolla E90 19871992 Fit For Toyota Corolla E100 94465977

Introducation:

MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

Key Features:

1. Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance

2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

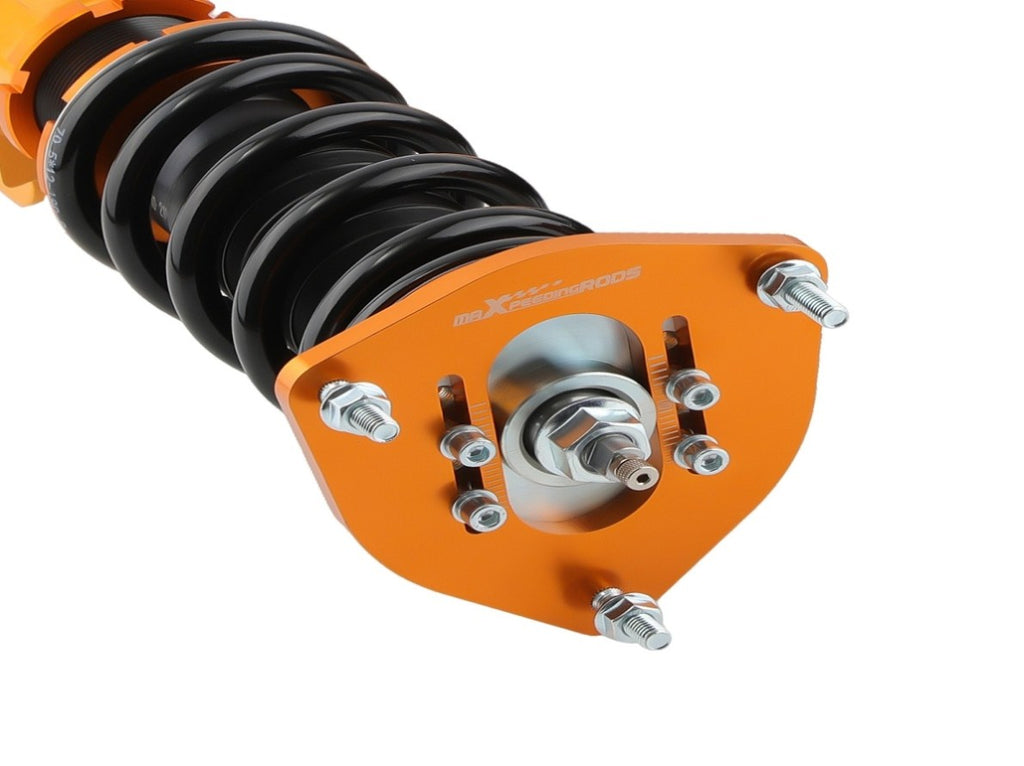

4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)

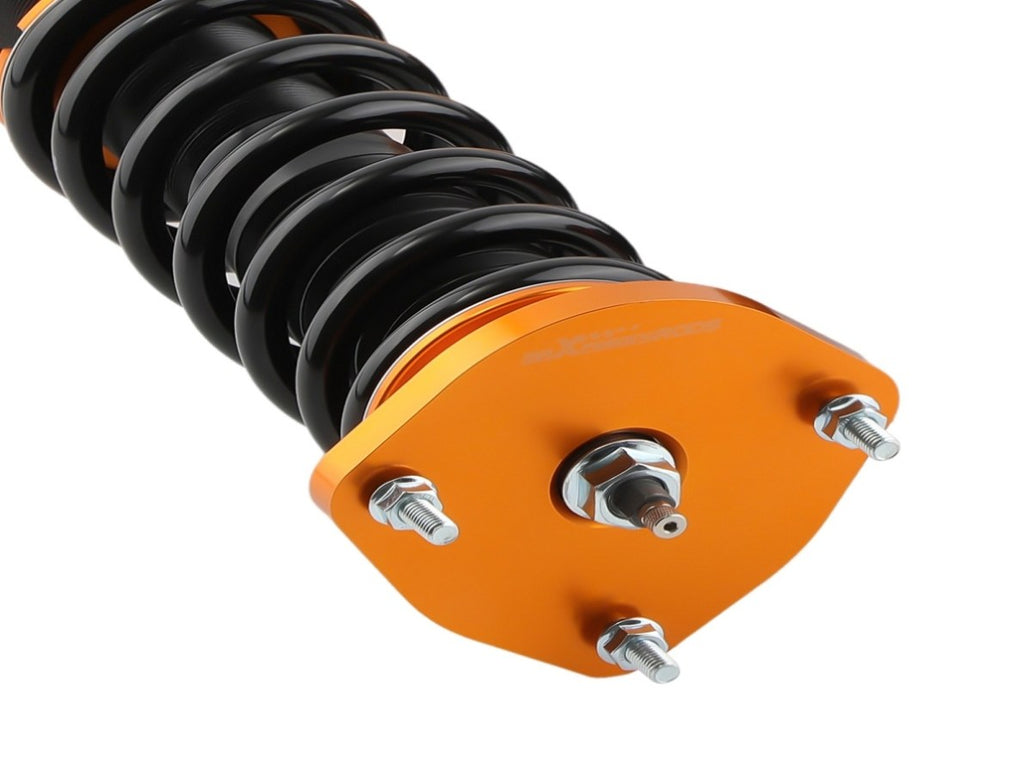

5. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

7. High tensile spring---  600,000 times continuously test to assure its high tensile strength.

8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Specification:

Damping adjustable: Available, 24 levels of rebound damping force

Camber adjustable: Available, front only

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Front spring inner diameter: 70.5mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 180mm

Spring length Rear: 230 mm

Spring Preload advised: 7-10 mm

Color: Golden body with black spring

Application:

Fit For Toyota Corolla E90  1987–1992

Fit For Toyota Corolla E100 1991–1998

Fit For Toyota Corolla E110  1995-2002

Fit For Toyota Corolla AE92  1987-1991

Fit For Toyota Corolla AE101 1992-1998

Fit For Toyota Corolla AE111 1988-2002

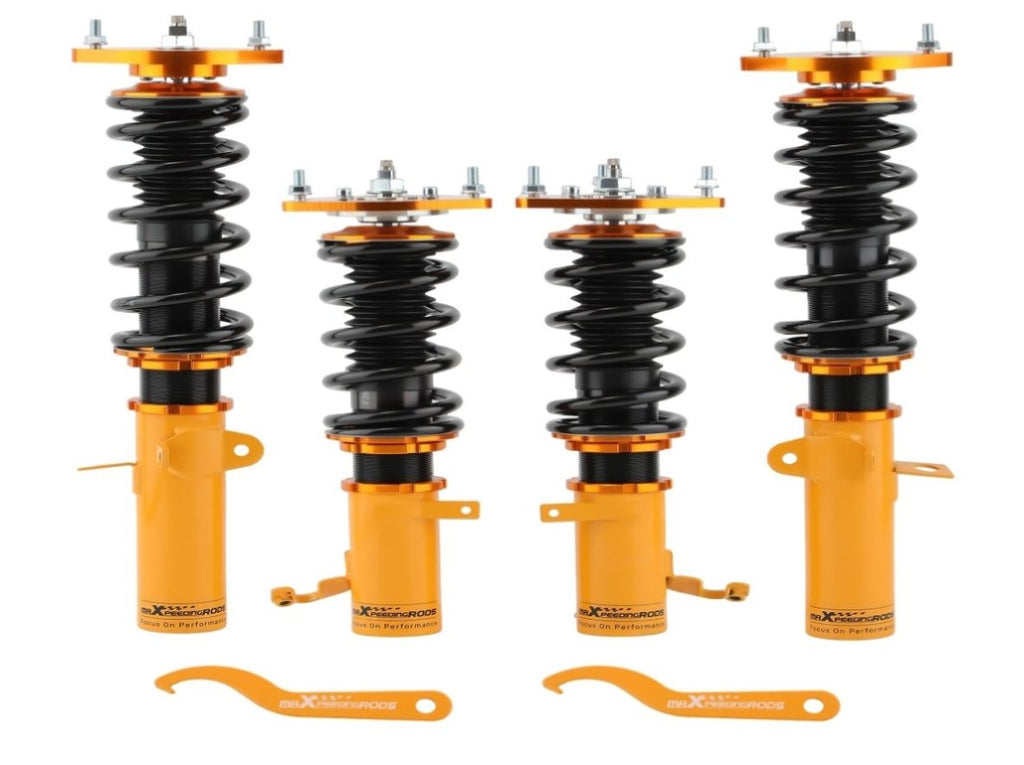

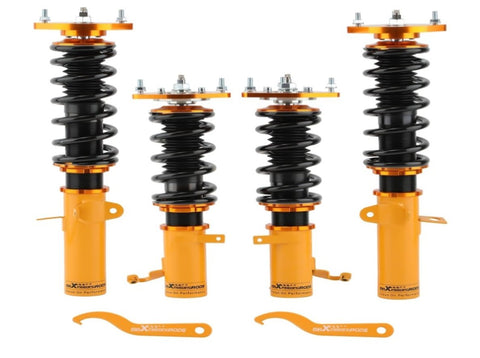

Package included:

2x front coil-overs

2x rear  coil-overs

2x C spanners

Dimension:

Gross weight: 27450g

Package size: 63*50*20cm

Notice:

The coilovers kit will "Lower your car" and does not keep to the original ride height.
