Front & Rear Cover Oil Pan Alignment Tool Fits fit for LS Engine 4.8 5.3 5.7 6.0 27905041

To help align the front and rear engine covers to make sure the cover is centered.

[Application]:

Applicable to all LS series engines - 4.8 5.3 5.7 6.0 LS1 LS2 LS3 LS6 L99 LS4 LS9 LSA LQ4 LQ9 L76 L92.

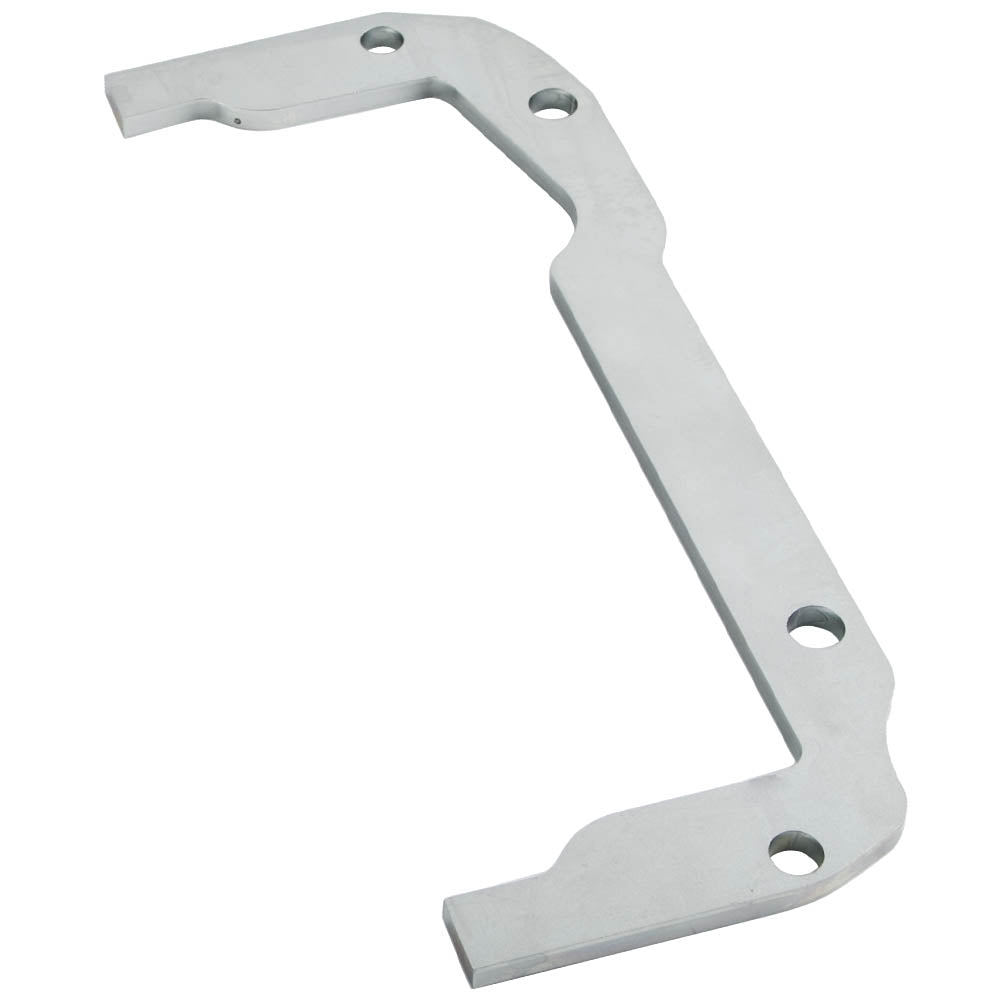

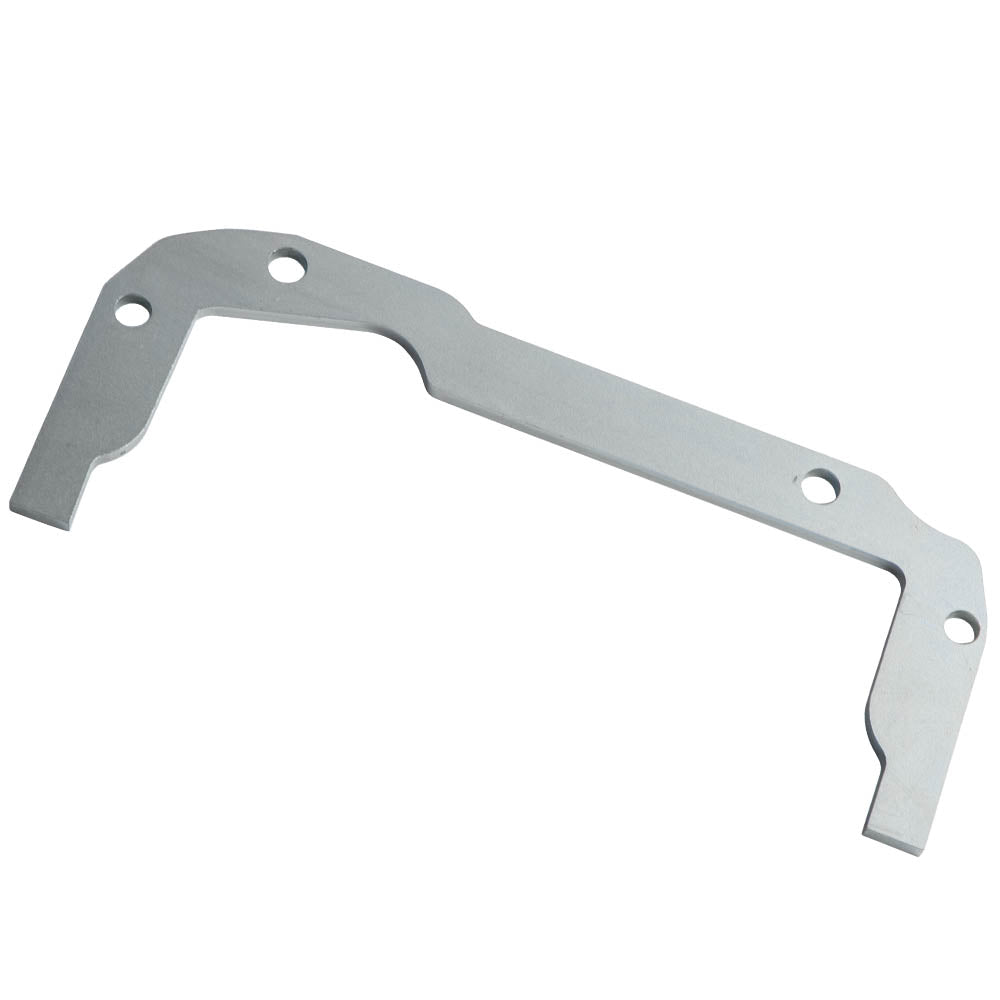

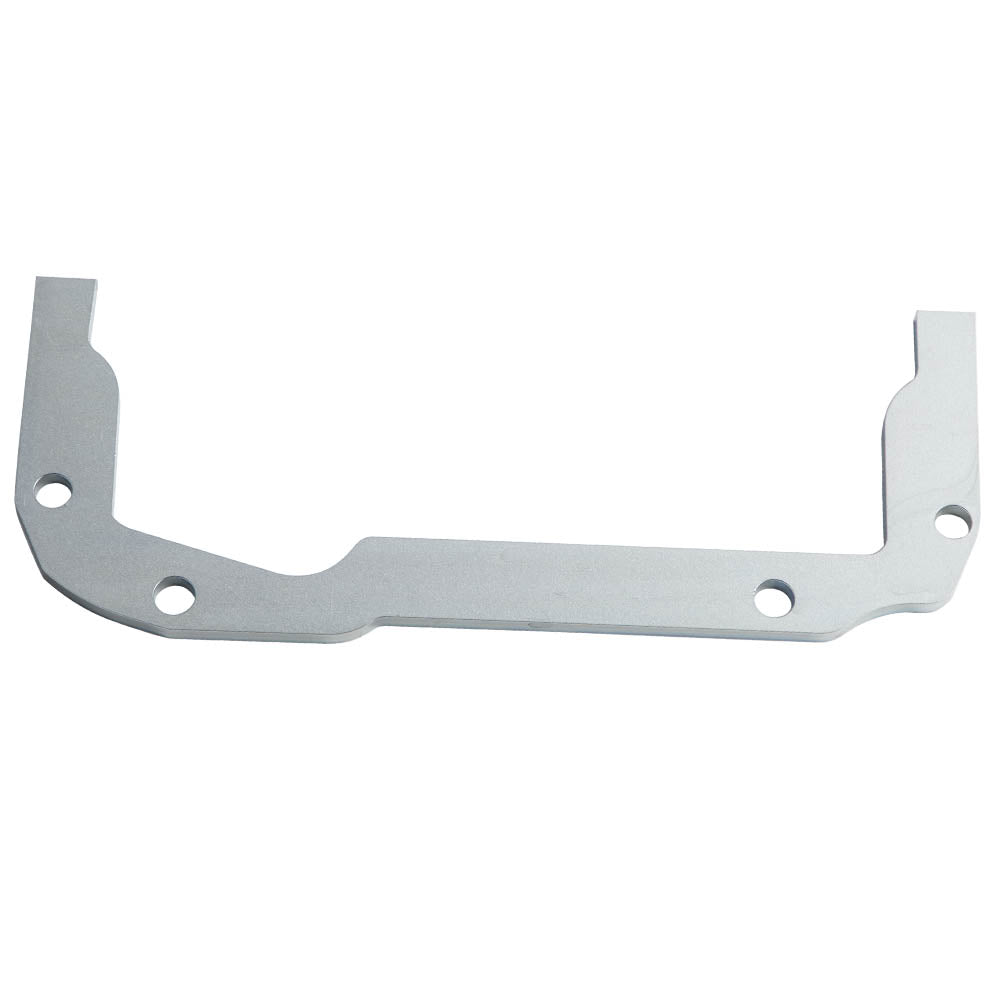

1.fit for LS oil pan positioning tool: This tool simulates the oil pan and can provide the alignment of the key oil pan and the front cover.

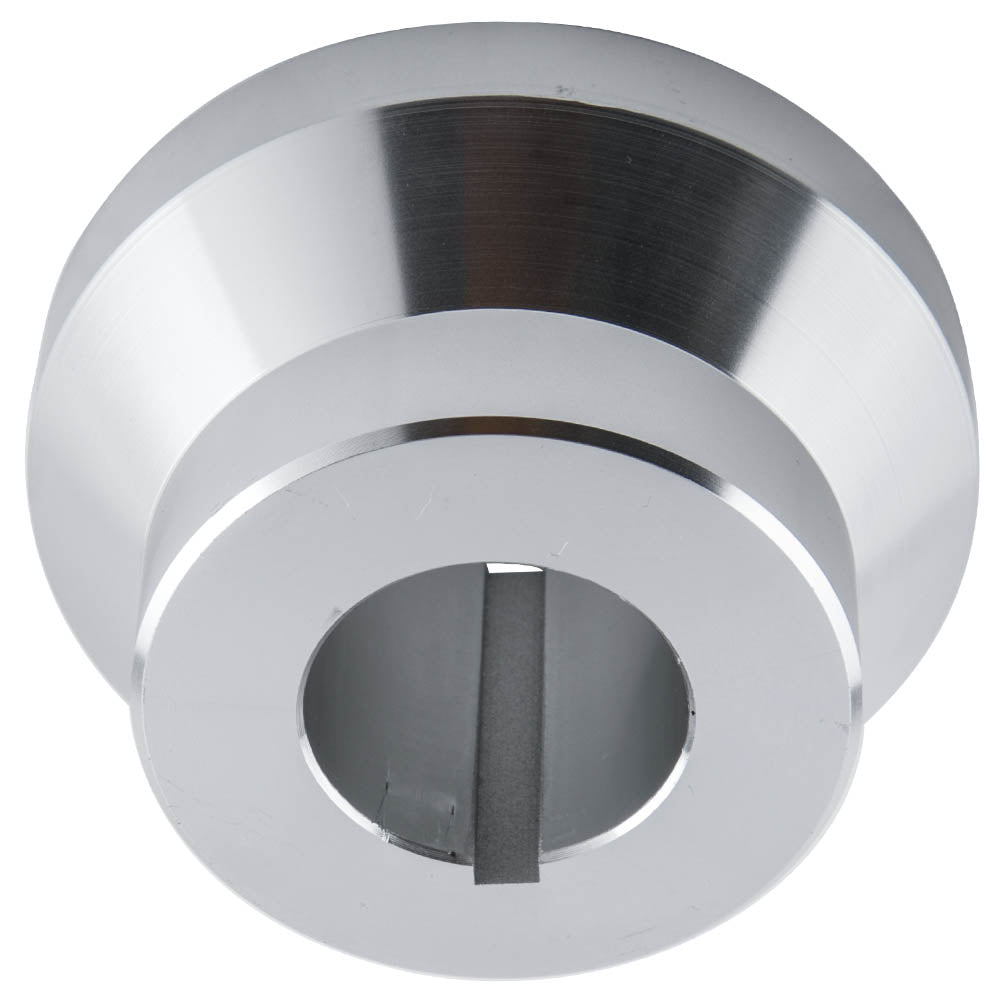

2.fit for LS front cover positioning tool. This tool will align the front cover to ensure that the front main seal is installed correctly.

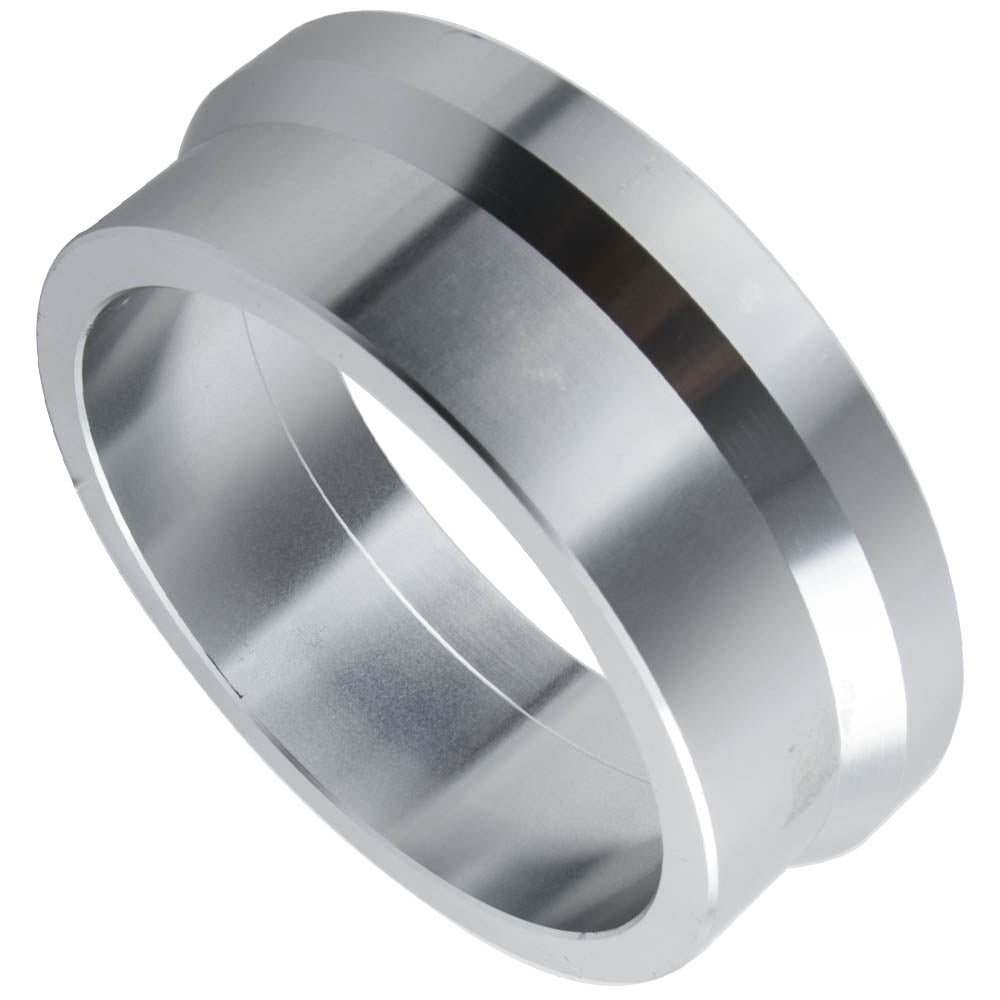

3.fit for LS rear cover positioning tool, which can completely concentric the seal with the front diameter

[Function]:

It can help to align the front and rear hood to the greatest extent, so as to effectively ensure the hood is centered. The central cover means that the possibility of seal leakage is relatively small.


[Design aspect]:

The cover alignment tool imitates the balancer, and places the cover in the center of the front seal, or on the ID of the seal hole in the cover, without installing the seal; The oil pan alignment tool simulates the oil pan to provide critical alignment between the oil pan and the front cover.


[Material]:

It is made of billet aluminum and high-quality steel, with good durability and tight tolerance, and can achieve perfect alignment. Suitable fit for engine manufacturers and machinists to replace the front or rear main seals of fit for GMC LS series engines


Instructions:
* This Front and Rear Cover Alignment Tool Kit is used to install the front cover on any fit for GMC LS engine.
* Align the seal with the front diameter and rear sealing surface of the balancer hub completely concentrically to achieve proper sealing function and service life.
*You must be very careful to align the cover horizontally with the oil pan.

Feature:

1. The oil pump, timing chain, oil pan gasket and front oil seal can be replaced;
2. Use this tool to align the front seal.
3. The seals are aligned and completely leak-free.
4. It helps to align the front and rear engine covers, so as to achieve the correct sealing function. In addition, the seal must be completely concentric with the front diameter of the sealing surface of the balancer hub.
5. The cover alignment tool simulates the balancer so that the cover is centered on the front seal or on the ID of the seal hole in the cover without the seal installed. The oil pan alignment tool simulates the oil pan, thus providing the key alignment between the oil pan and the front cover.

How to install the Front Cover (the seal is not installed in the front cover):
* Loosely install the front cover;
* Install the big end of the sealing tool on the nozzle of the crankshaft;
*Check the alignment with the oil pan;
*Install the balancer lip seal.

Package Includes:

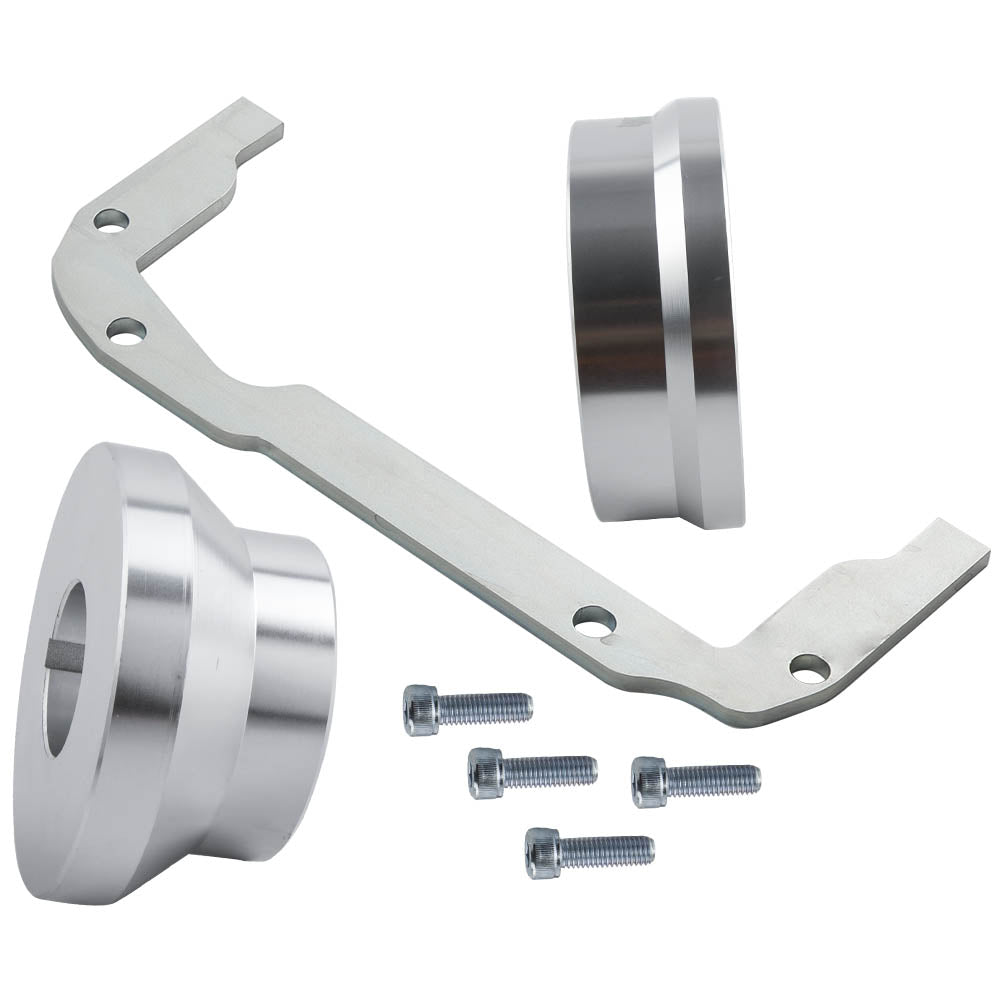

1* Front and Rear Cover Alignment Tool
1* Oil Pan Alignment Tool

Notice:
* Professional installation is highly recommended (No Instruction Included)
* fit for any needs please contact us
But fit for LS engine, the oil pan is a force bearing component, which increases the rigidity of the cylinder block. fit for this reason, it cannot be simply slapped in place. You must carefully align the cover with the oil pan when using it.

Box Color: The color of the box is random

Box Color: The color of the box is random
