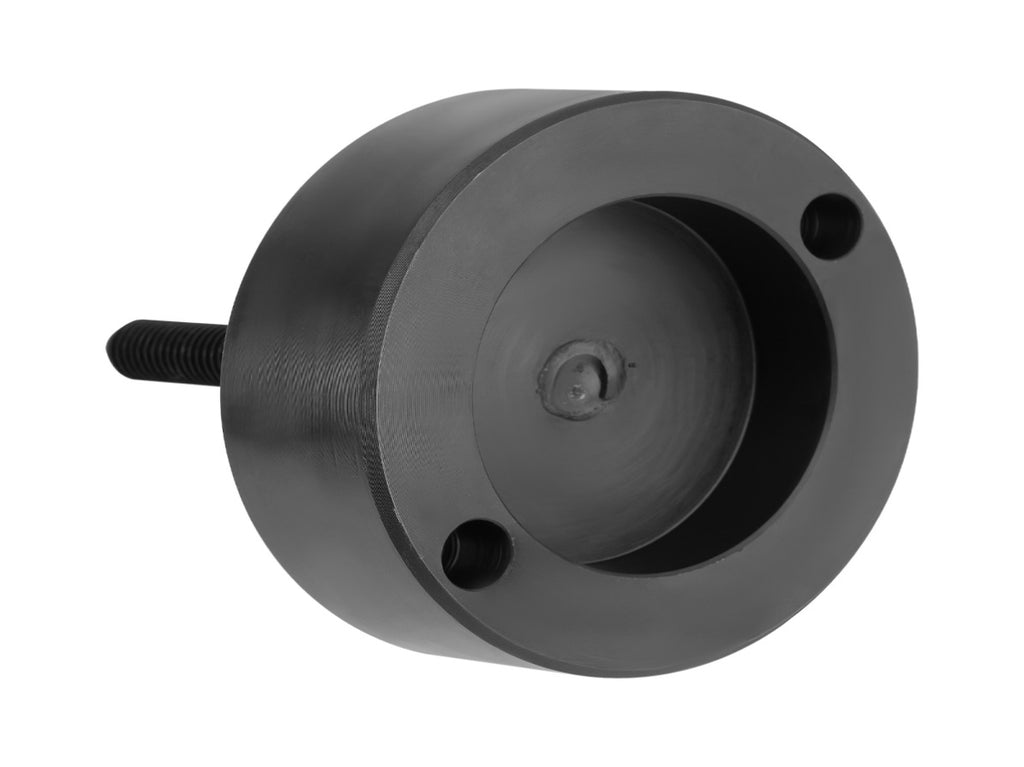

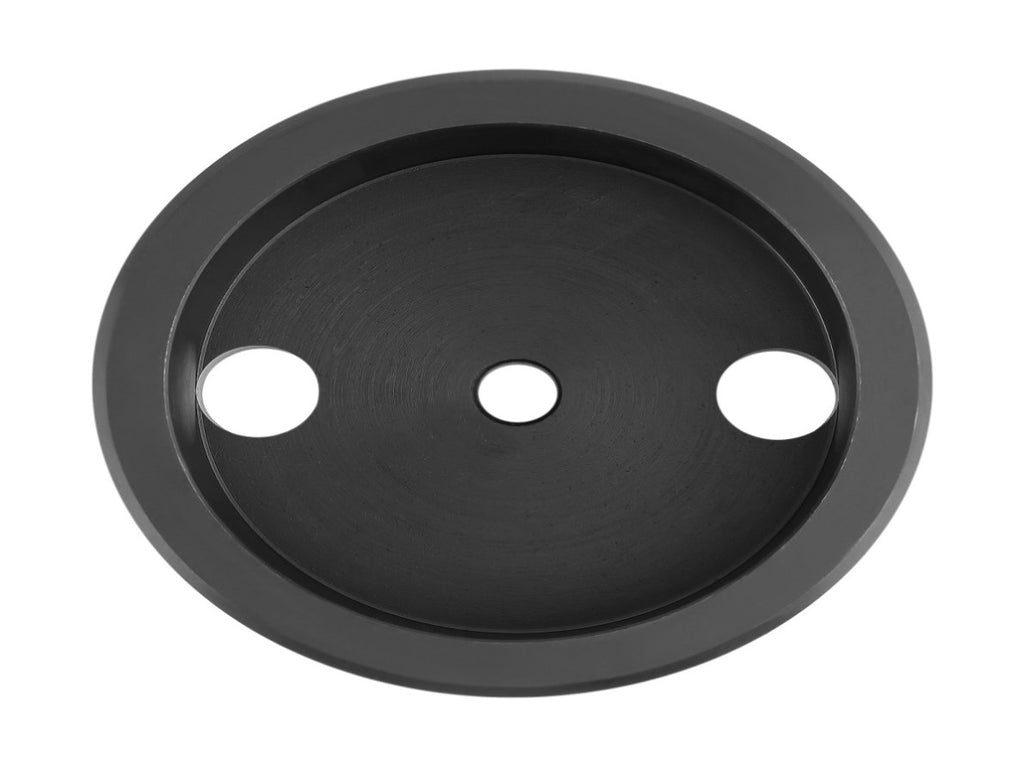

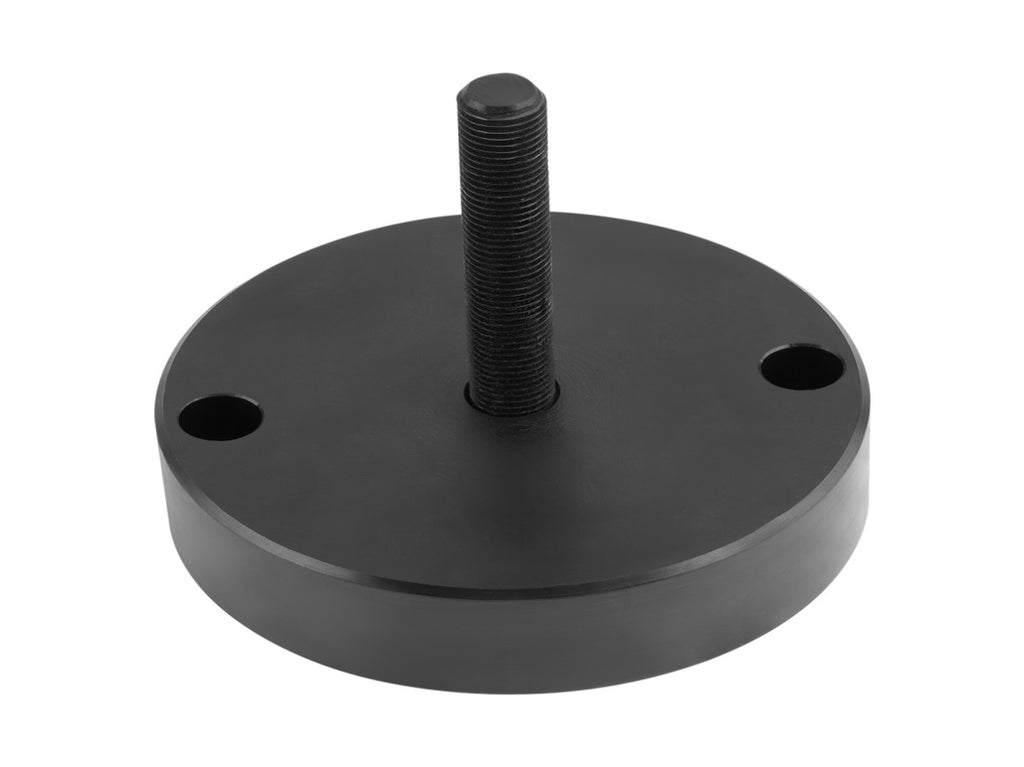

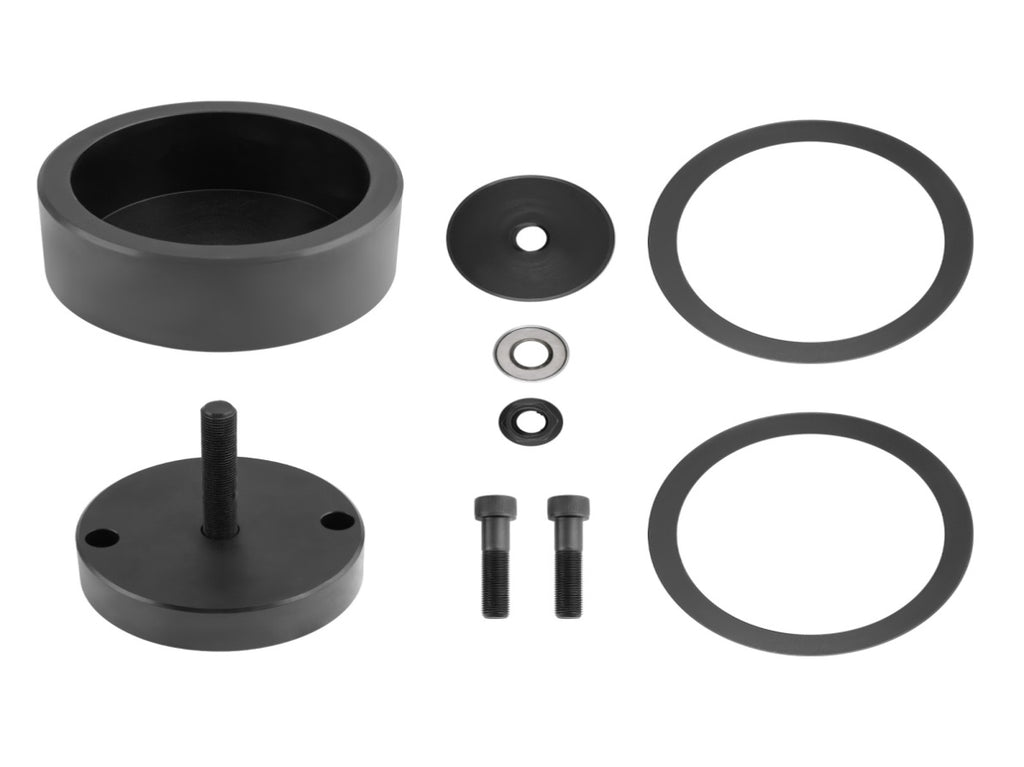

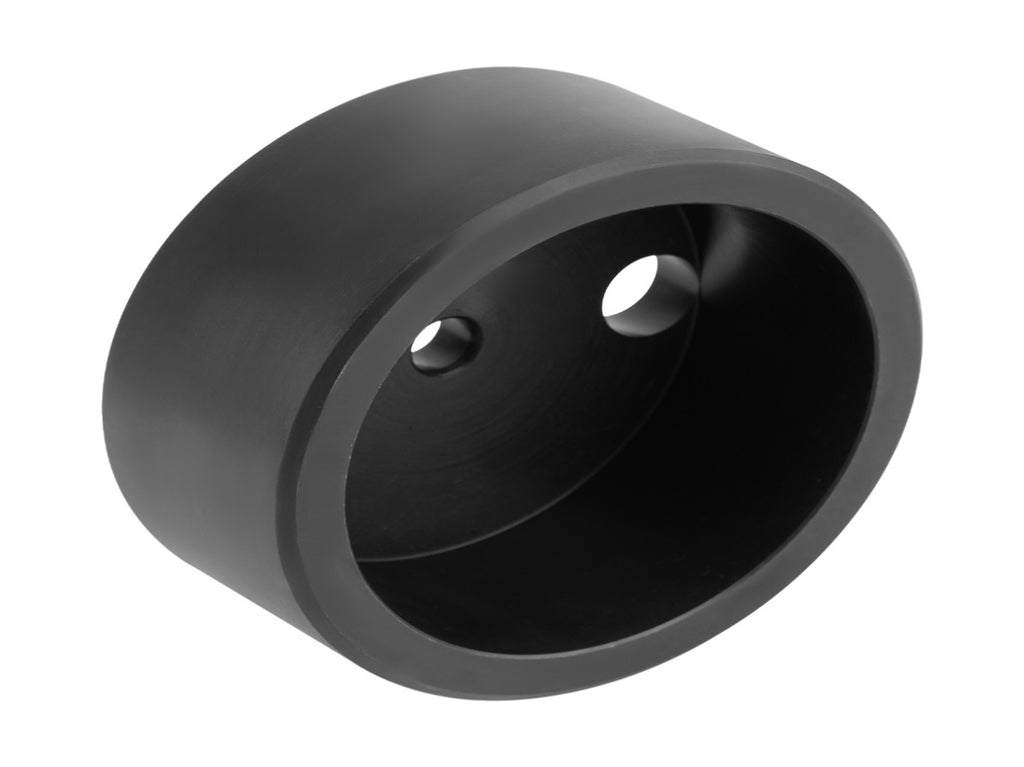

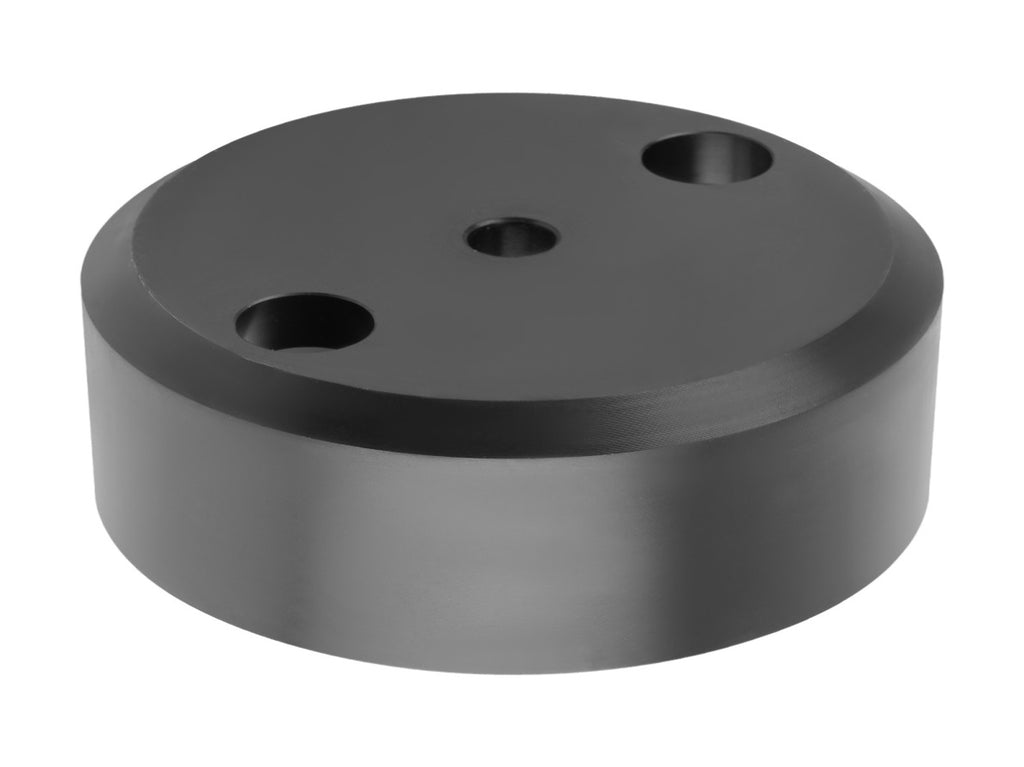

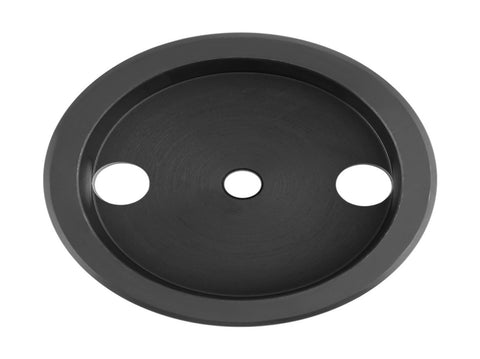

Front Rear Crank Seal Installer Fit Detroit Diesel Series 60 12.7L 14L J-35686-B 37036442

Application：

fit for use on Detroit Diesel Series 60 and two cycle 92.
Use on seal # 23516969 23513578 23513485 23518355

Specifications:
Type:Crank Seal Installer
Condition: Brand New
Fitment Type: Direct Replacement
Material:Steel

Features:
*Strong compatibility: Works on the Detroit diesel series 60 and two cycle 92 engines
*High quality material: high quality wear-resistant steel structure, black oxidized surface treatment, durable, anti-corrosion and anti-rust. High precision and hardness fit for longer service life.
*Upgrade design - The tool is easier to use due to the simpler design, and each part is manufactured to the OE# specifications.
*Function: Used to install the front and back crankshaft wear sleeve and seals, eliminate the lip spot of the wear sleeve, the seal is installed correctly, without any leakage, saving you a lot of trouble in the work
Prevent leakage of seals.
Direct the J - 35686 - b and J - 35686 - a, is widely used in a variety of sealing and wear components, including 5, 23516969235357, 8235348, 5235835.
*Easier work - fit for installing front and rear crankshaft wear sleeves and seals. It eliminates the lip flame on the wear sleeve and properly installs the seal without leakage.

Installation:

1. Seal the outer diameter of the rubber with clean oil. Lubricate gearbox cover or flywheel housing holes with clean oil.
2. Install two guide studs (J-35686-1) through the holes provided in the center guide assembly (J-35686-1) and into the two threaded holes of the crankshaft at 180 degrees. Tighten the guide stud. The base must be tight against the end of the crankshaft.
3. Install the gasket on the center screw of the base.
4. Slide the oil seal assembly over the mounting base as close to the crankshaft hub as possible. Slip the collar so that the side with the step touches the seal. Slide the mounting cup onto the guide stud and mounting base.
5. Lubricate the center screw of the base with extreme pressure lubricant. Install the thrust bearing so that one side of the housing faces the mounting cup and install the hexagon nut on the center screw of the base.
6. Tighten the hex nut until the oil seal and wear sleeve are pressed into the flywheel housing or gearbox cover.
7. When the inner surface of the housing is firmly against the base and gasket, the seal and sleeve are installed correctly. The tool should be removed
