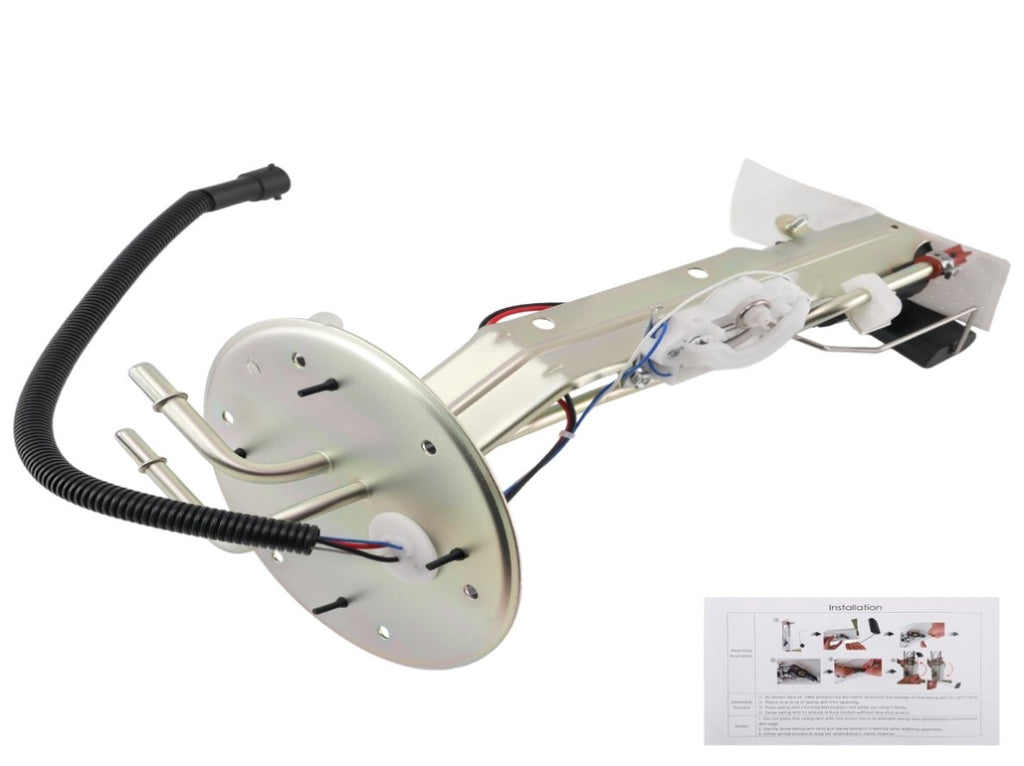

Fuel Pump Assembly fit for Ford F-150 1999-2003 F-250 1999 4.6L 5.4L V8 E2237S 48467009

Application

fit for Ford F-150 V6 4.2L    1999-2003
fit for Ford F-150 V8 4.6L    1999-2003
fit for Ford F-150 V8 5.4L    1999-2003
fit for Ford F-150 Heritage V6 4.2L    2004
fit for Ford F-150 Heritage V8 4.6L    2004
fit for Ford F-150 Heritage V8 5.4L    2004
fit for Ford F-250 V8 4.6L    1999
fit for Ford F-250 V8 5.4L    1999

OE/Part number

XL3Z9H307AA, XL3Z-9H307AA
XL3Z9H307AB, XL3Z-9H307AB
XL3Z9H307BA, XL3Z-9H307BA
XL3Z9H307BB, XL3Z-9H307BB
XL3Z9H307DA, XL3Z-9H307DA
XL3Z9H307DB, XL3Z-9H307DB
XL3Z9H307EA, XL3Z-9H307EA
XL3Z9H307EB, XL3Z-9H307EB
950-0172
E2237S
EB237S
FG130D
FG1409
HP10089
P74853S
PFS105

SP2237H

Specification

Drive Type: Electrical

Fuel Type: Gasoline

Voltage: 12V

Flow Rate: 35-45 gph

Pressure: 80-100 psi

Inlet Type: Strainer

Inlet Quantity: 1

Outlet Type: Quick Connector

Outlet Quantity: 1

Material: Plastic(POM)+Steel(Q235)

Housing Material: Plastic

Fuel Sending Unit Included: Yes

Fuel Pressure Sensor Included: No

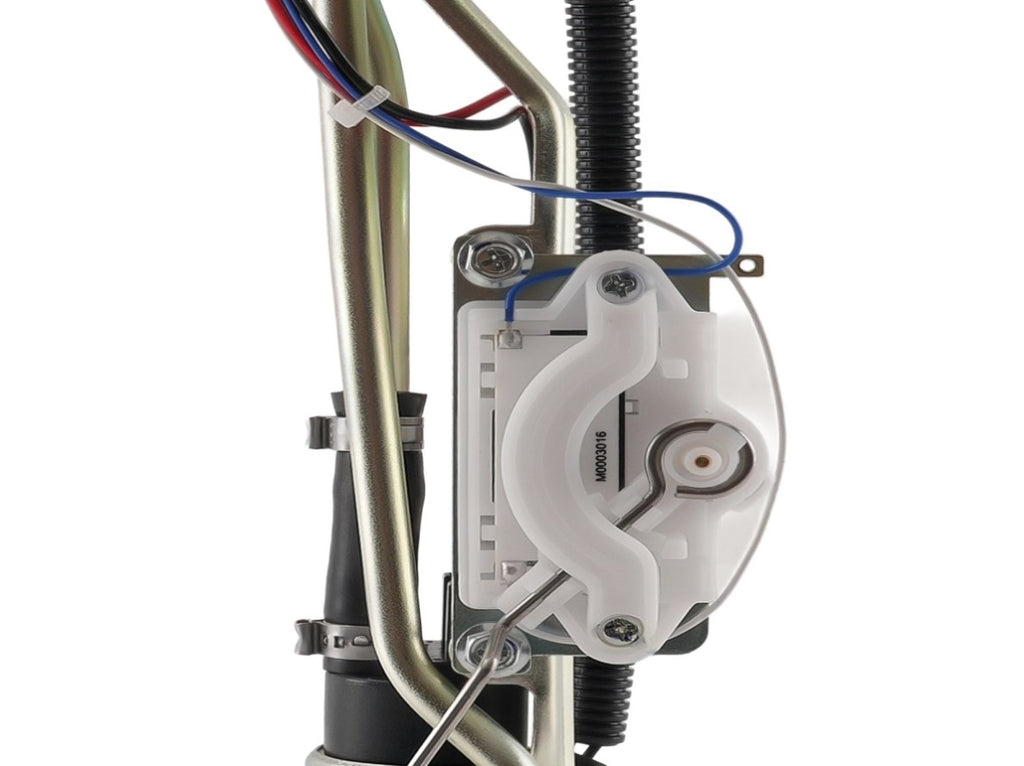

Fuel Level Sensor Included: Yes

Float Included: Yes

Fuel Reservoir Included: No

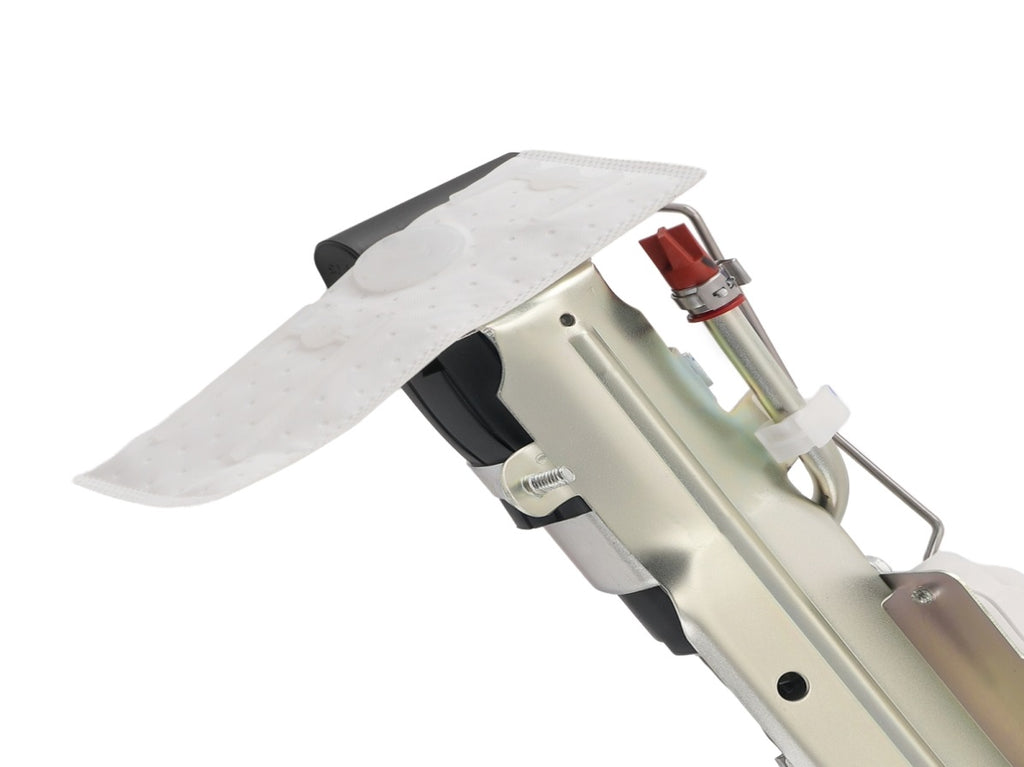

Fuel Strainer Included: Yes

Seal Ring Included : Yes

Placement on Vehicle: Rear

Package included: 1x Fuel Pump Module Assembly

Feature

1.Raw Material fit for key parts from same supplier as OE

2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times

3.Pressure Valve Durability Test ≥ 500,000 times

4.High temperature durability testing≥ 600 hours(60℃)

5.100% test

Note

1.Attached installation manual.

2.Professional Installation Is Highly Recommended.

3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
