Gas Engine Motor 4 Stroke 5.5HP 168cc 168F Pullstart for Honda GX160 20mm 54155635
Typical Application for:
Compressor Scarifier Lawnmower Pump Generator Pressure Washer Gokart Lawnmower Cement Mixer Dust Collector Flail Mower
Technical Data:
Compression Ratio : 8.5:1
Engine Type : 168F/ Air Cooled 4 Stroke OHV Single Cylinder
Maximum Output : 5.5 HP / 4.1 KW
Rated Output : 4.0 HP / 3.0 KW
Bore & Stroke : 70x55mm
Displacement : 168cc
Bore & Stroke : 70x55mm
Displacement : 168cc
Starting System : Pullstart
Fuel Capacity : 3.6 Litres
Engine Oil Capacity : 0.6 Litre
Engine Oil Capacity : 0.6 Litre
Diameter of Drive Shaft: 20 mm / 0.79 inches (NOT 0.75 INCH, NOT 3/4'' )
Length of Drive Shaft / Crankshaft: 250mm / 9.84 inches
Length of Drive Shaft / Crankshaft: 250mm / 9.84 inches
Distance Between Bottom Fixing Holes (Clutch Side, Centre of Eye to Centre of Eye): 165 mm / 6.5 inches
Distance Between Bottom Fixing Holes (Pullstart Side, Centre of Eye to Centre of Eye): 165 mm / 6.5 inches
Distance Between Bottom Fixing Holes (Pullstart to Clutch across, Centre of Eye to Centre of Eye): 77.06 mm / 3.03 inches
Distance Between Bottom Fixing Holes (Pullstart Side, Centre of Eye to Centre of Eye): 165 mm / 6.5 inches
Distance Between Bottom Fixing Holes (Pullstart to Clutch across, Centre of Eye to Centre of Eye): 77.06 mm / 3.03 inches
Notice:
Please double check the diameter of driver shaft and the Length of Drive Shaft / Crankshaft !!!
Diameter of Drive Shaft: 20 mm / 0.79 inches (NOT 0.75 INCH, NOT 3/4'' )

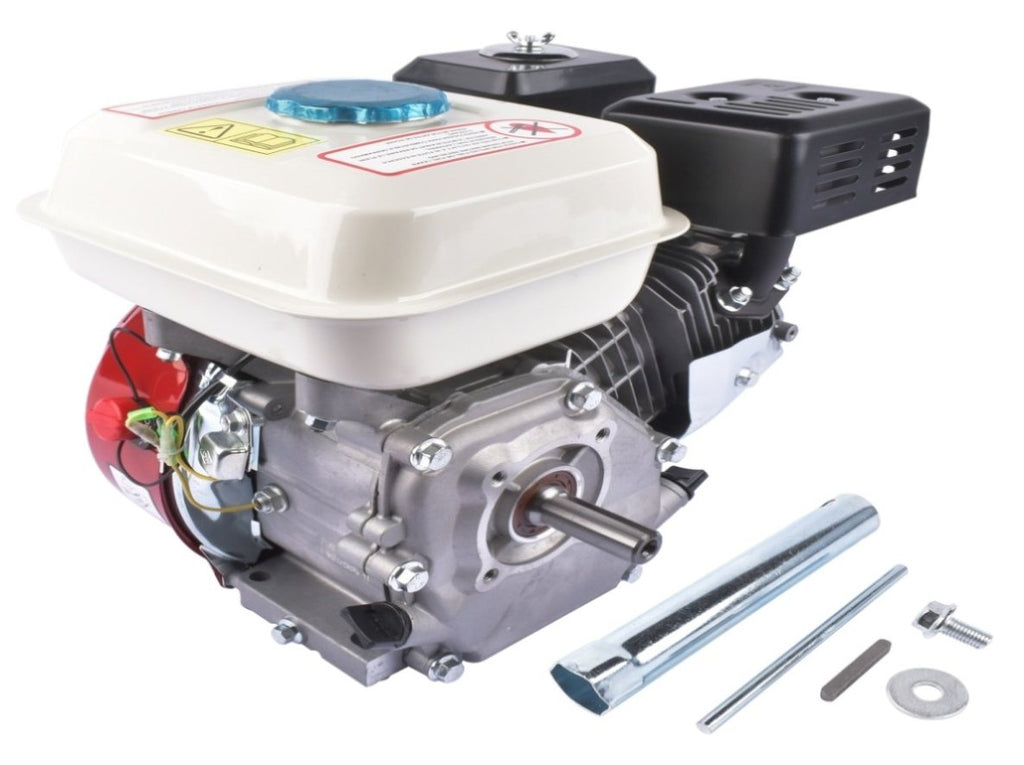

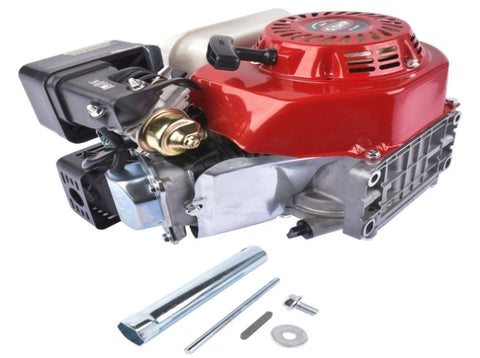

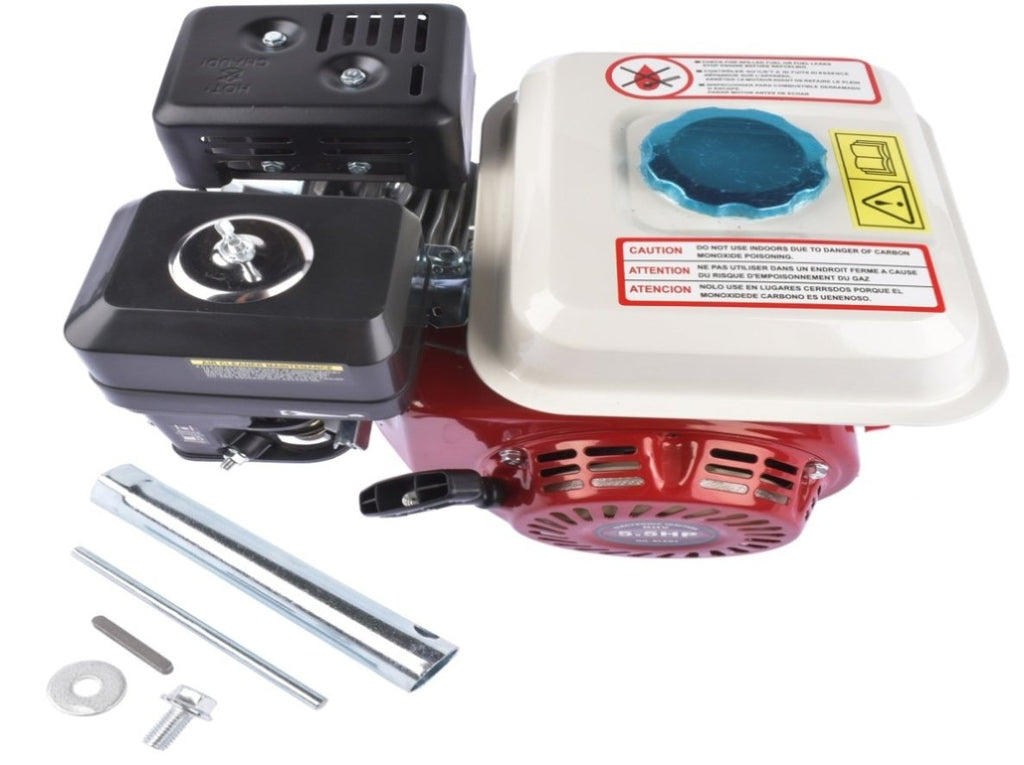

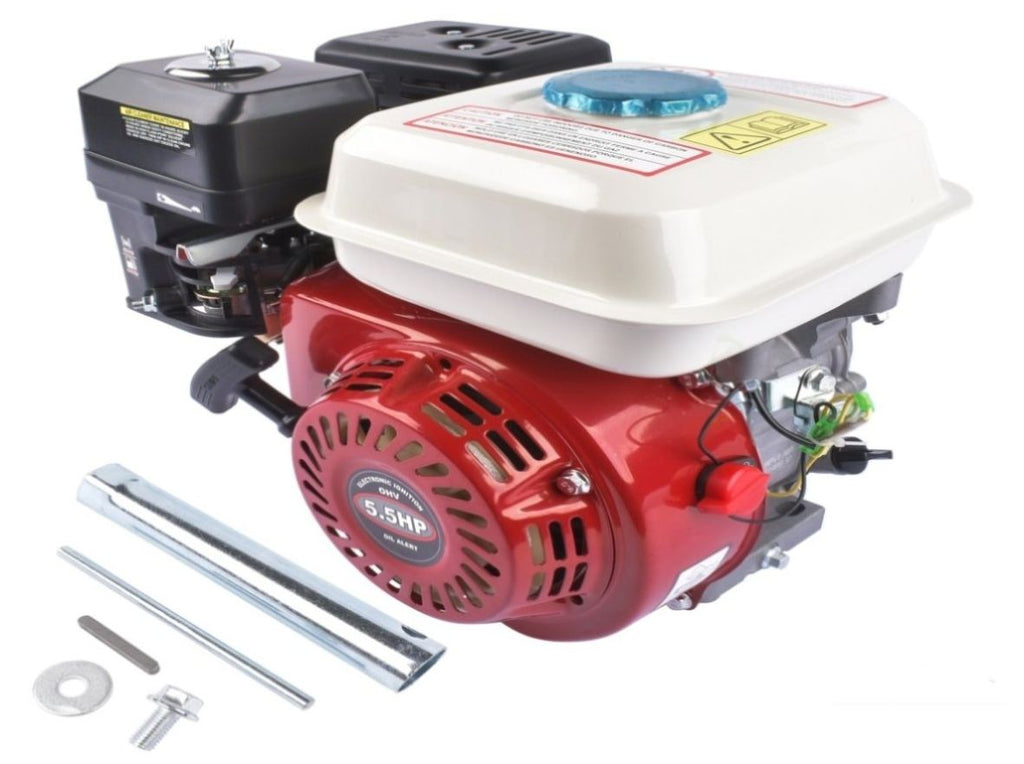

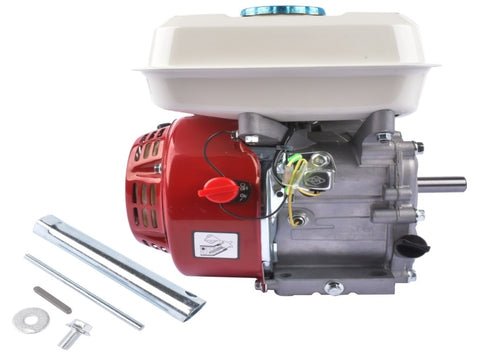

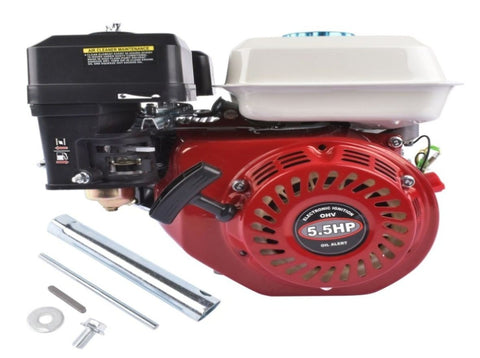

Package Includes: 1x Gas Engine (As Pics Shown)
