GTA2056V Turbo Charger fit for Nissan Navara Pathfinder 2.5L 171HP 767720-0001 2006 42363096

Turbocharger fit for Nissan Navara Pathfinder 769708 2.5L YD25 14411-EB70A

Applications:

fit for Nissan Navara 2.5L YD25DDTI 2006-
fit for Nissan Pathfinder 2.5L YD25DDTI 2006-

*Notice:
1.Please Carefully distinguish this Turbo with 14411-EB300.
This turbo have 4 bolt exhaust inlet flange which connect with the manifold, but the inlet flange of 14411-eb300 only have 3 bolts.


Interchange Part Number:

769708,
769708-1,769708-0001, 769708-5001S,
769708-2,769708-0002, 769708-5002S,
769708-3,769708-0003, 769708-5003S,
769708-4,769708-0004, 769708-5004S,
767720,
767720-1,767720-0001, 767720-5001S,
767720-2,767720-0002, 767720-5002S,
767720-3,767720-0003, 767720-5003S,
767720-4,767720-0004, 767720-5004S,
767720-5,767720-0005, 767720-5005S,
767720-6,767720-0006, 767720-5006S,

14411EB70A, 14411-EB70A, 14411EB70B, 14411-EB70B,
14411EB70C, 14411-EB70C, 14411EB70D, 14411-EB70D,
14411EC00A, 14411-EC00A, 14411EC00B, 14411-EC00B,
14411EC00C, 14411-EC00C, 14411EC00E, 14411-EC00E,

Specification

Turbo Model: GT2056V, GTA2056V
Eingine code: YD25DDTI
Cooling Type: Water & Oil Cooled
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: Up to 171HP
Actuator Type:Vacuum actuator
Turbo Type:Individual/VNT
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New

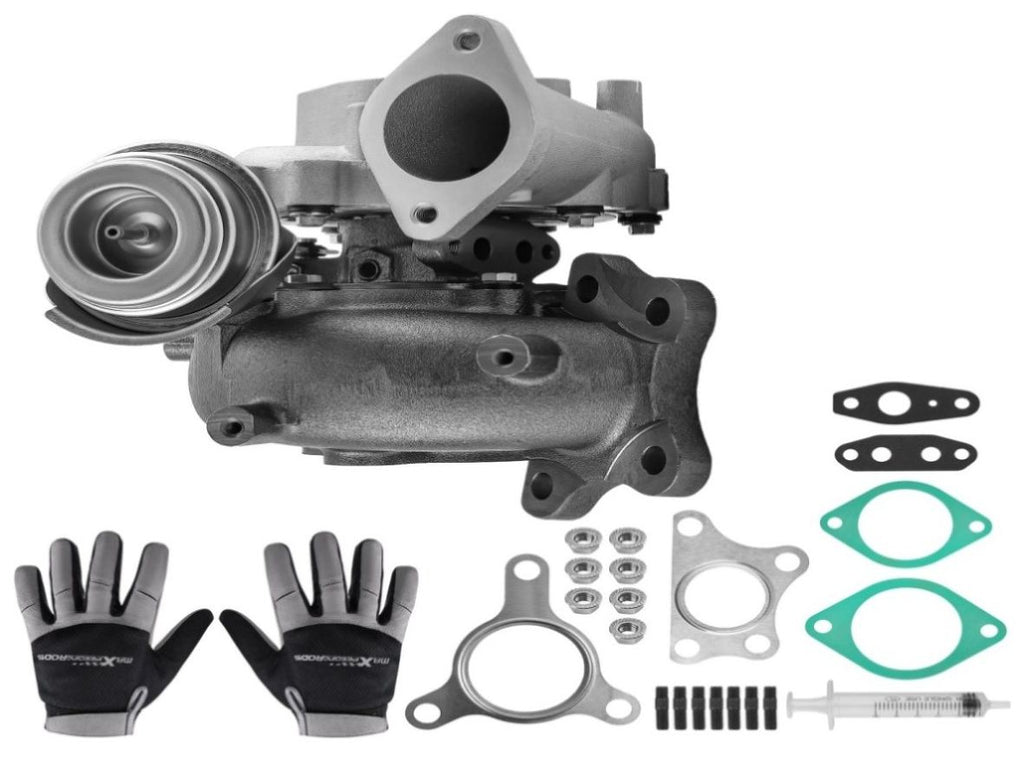

Accessories: You will receive the parts exactly as shown in the picture above
Package Size:25*24*23cm
Package Weight: :7940g

Product Advantages:

1. Turbine housing: Silicon-Molybdenum alloy steel - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.
2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown fit for smooth reliable operation.
3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.

NOTE:

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
