HX55 3590044 Turbo charger fit for 1994-2011 Cummins M11 M-Series Engine 10.8L 30056374
HX55W Turbo Turbocharger 359044 fit for Dodge Cummins M11 1994-2001
Application:
fit for Cummins Truck, Bus with ISM, ISME, M11 Engine 2007-2012
fit for Cummins Truck Bus, Truck Delta Alpha Plus with M11 Engine 1999-2009
Engine: fit for Cummins Diesel Engine ISM / ISME / M11 L10 10.8L
Interchange Part Number:
3590044, 3590045, 3803938,2480262
3536995, 3536996, 3800471 ,2834364,
4039173, 4046031, 2834419
3536149, 800471, 3800471RX
3593604, 3593601, 3593602, 3593604H
4024965, 4024966, 4024966RX,3593603
Product Specific:
Compressor:
Trim: 0.70
A/R: 0.68
IND: 62.90
EXD: 97.80
Turbine:
Trim: 0. 93
A/R: .88
IND: 86.40
EXD: 77.80
Thread specification: M16 x 18.56
Diameter of oil return hole: 20 MM
Turbo Model: HX55
Engine: M11, ISM, ISME 380 20, B5.9-C, ISME Euro-2 & Euro-3
Displacement: 11.0L, 1100 ccm
Cooling Type: Oil Cooling
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearing: 270 Degrees
Hosepower: Up to 500HP
Condition: Brand New

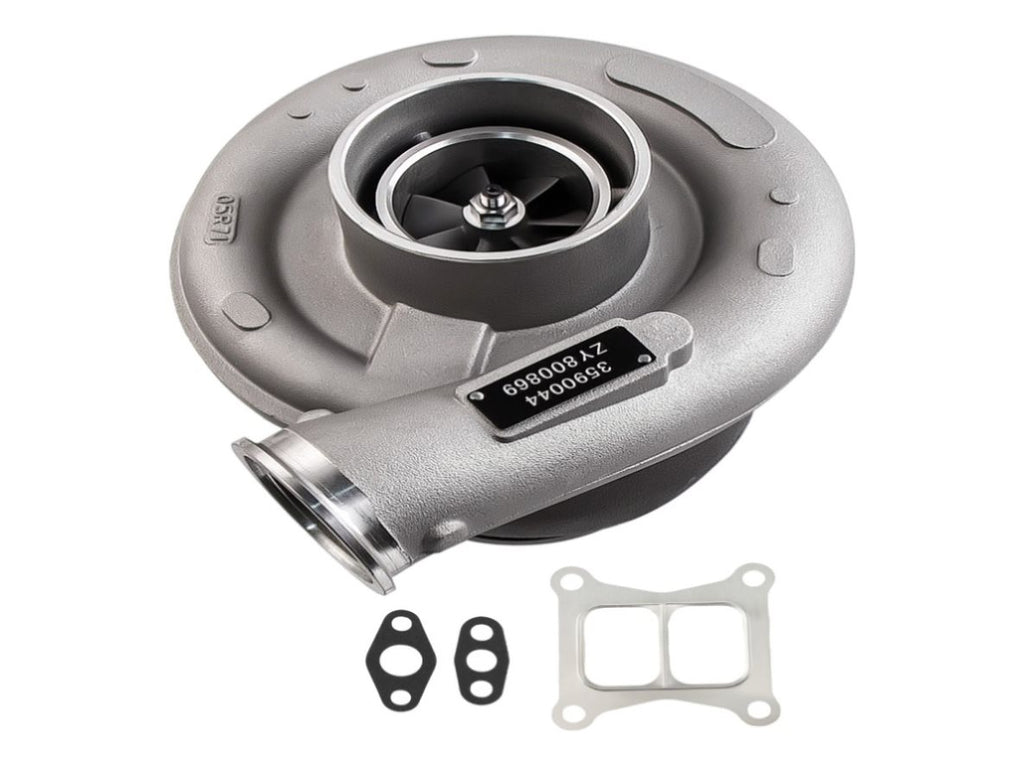

Accessories: You will get exactly as shown in the picture above
Package Size: 34x 31 x 29 cm
Package Weight: 17680 g
Feature:
* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
* Product Feature:
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
