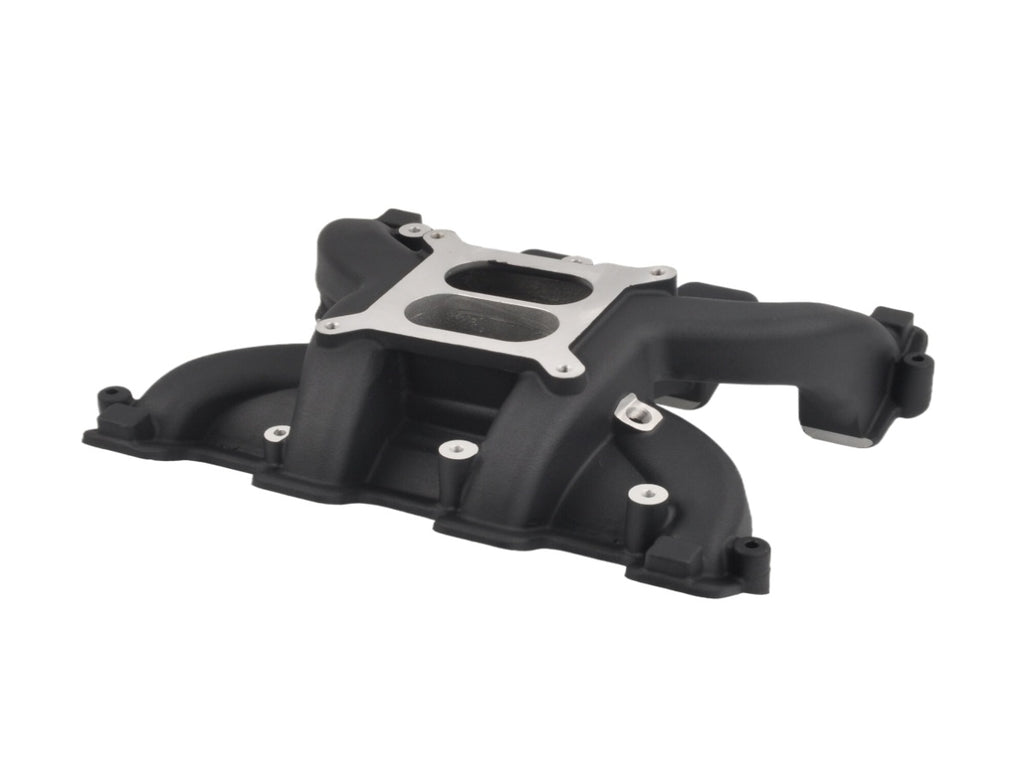

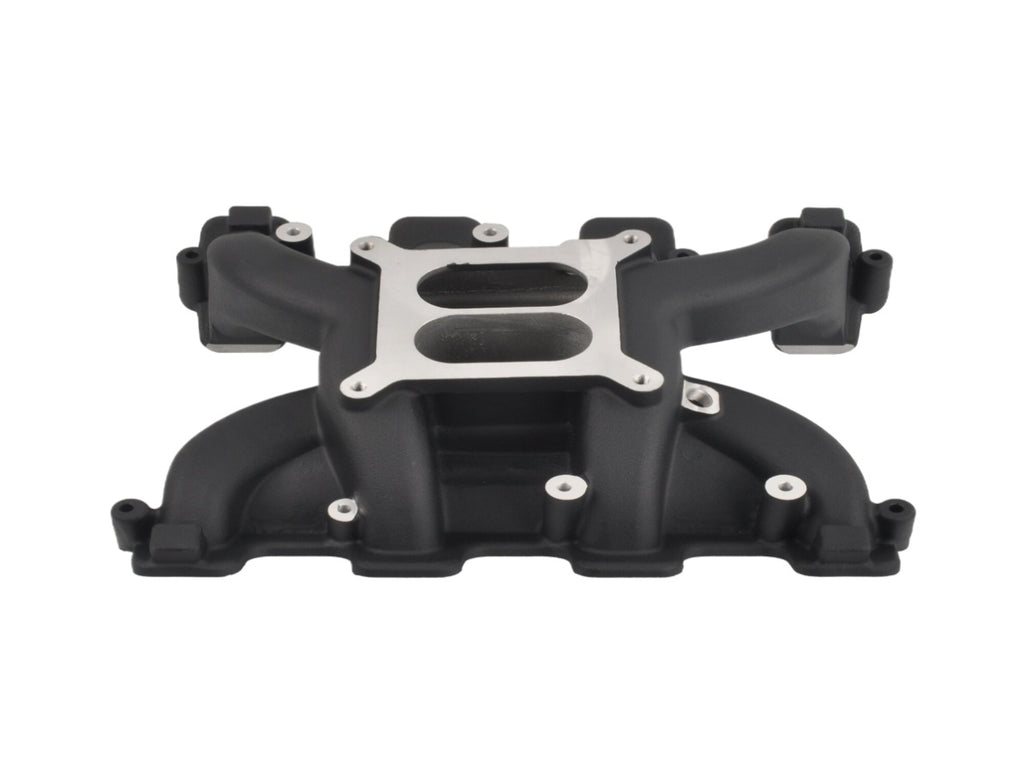

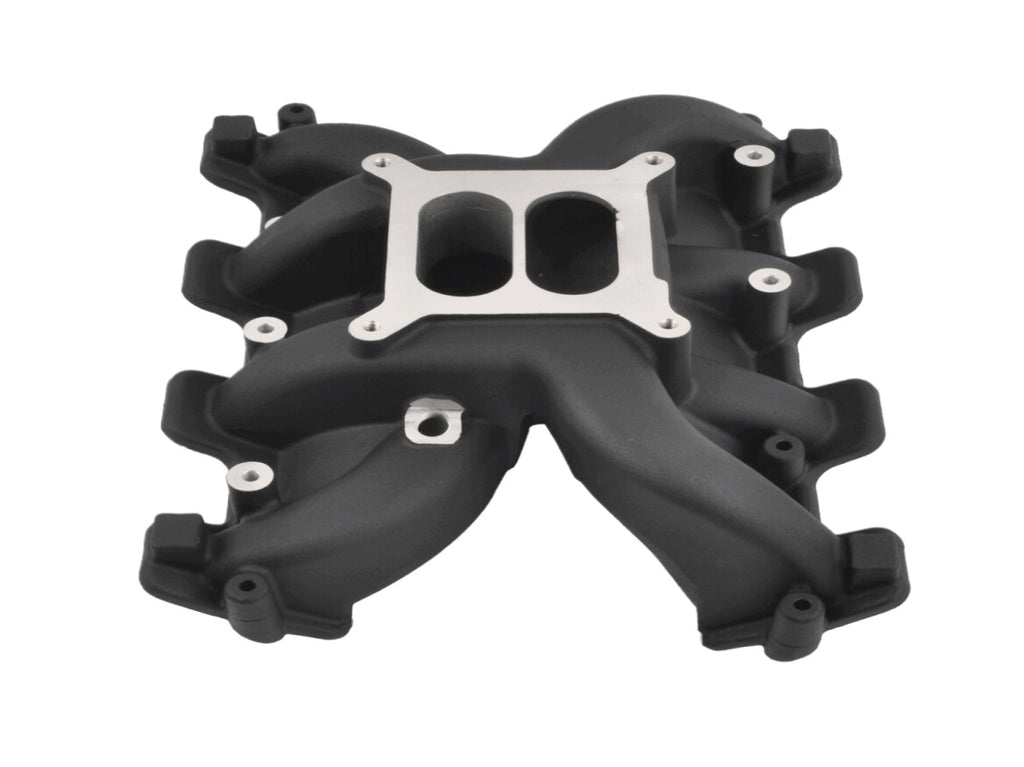

Intake Manifold Fit For LS1 5.3L LS2 6.0L300-130 MT023024 22821286

Specifications​:

Material: Aluminum

Finish: Black

Reference Number: 300-130

Carbureted or Throttle Body EFI Dual Plane

RPM Range: 1,500-6,500

4150 Square Bore Carb Base (Accepts Up To 1.75" Dia.    Throttle Bores)

3/8"  NPT Vacuum Port

1/8"  NPT MAP Sensor Port

Rectangular Ports Designed To Fit Cathedral Port Heads

Port Dimensions: 2.72"  x 1.00"

Intake Height: 6.15" Front, 5.07" Rear (Valley Cover to Carb Base Flange)​

Direct Replacement, Easy Installation

Strict QC & Fitment Tested

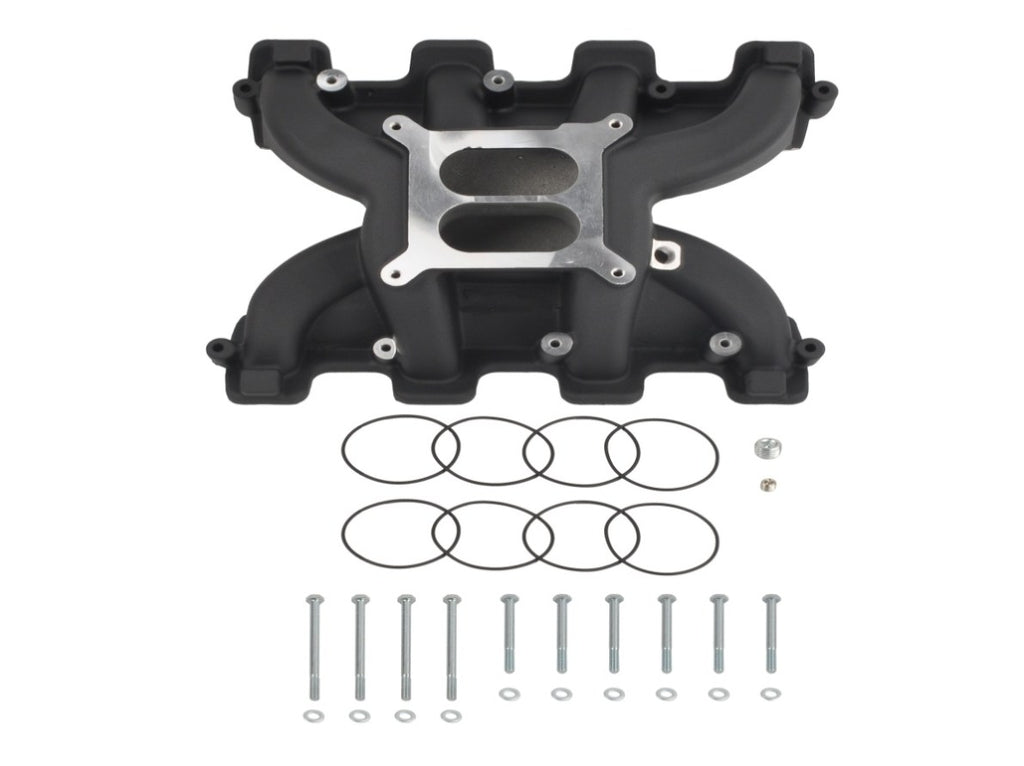

Package including:

1 X Intake Manifold

9 X O-Rings

Mounting Hardware

As Shown in the Picture above.

​Fitment:

For LS1 5.3L LS2 6.0L
