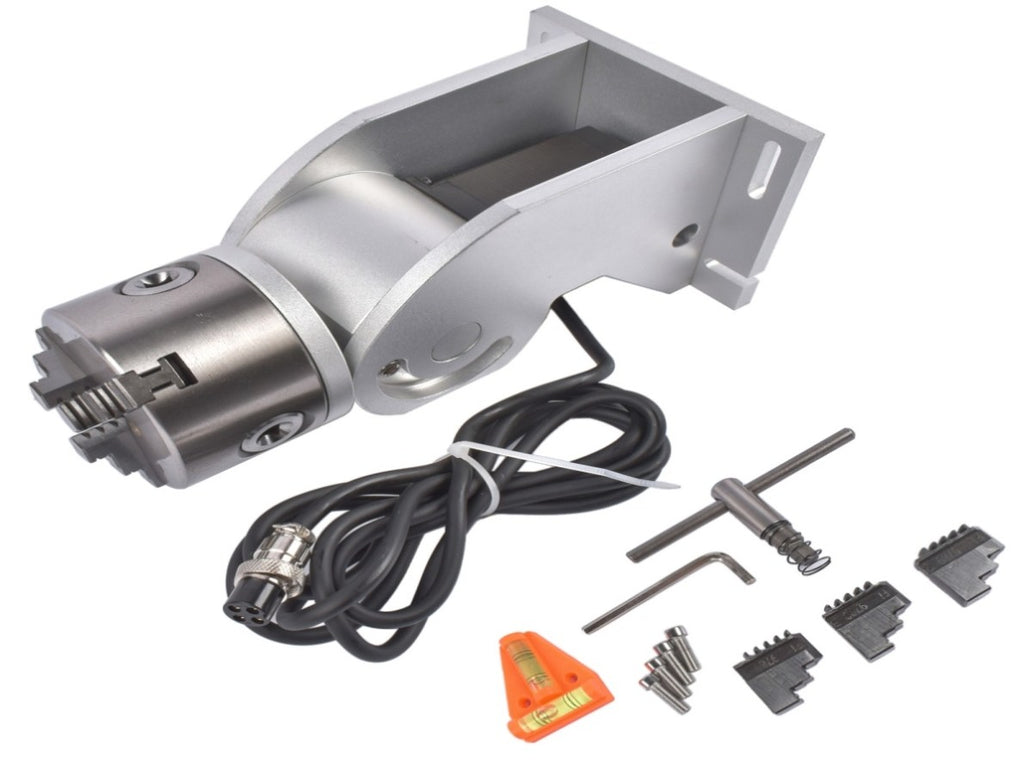

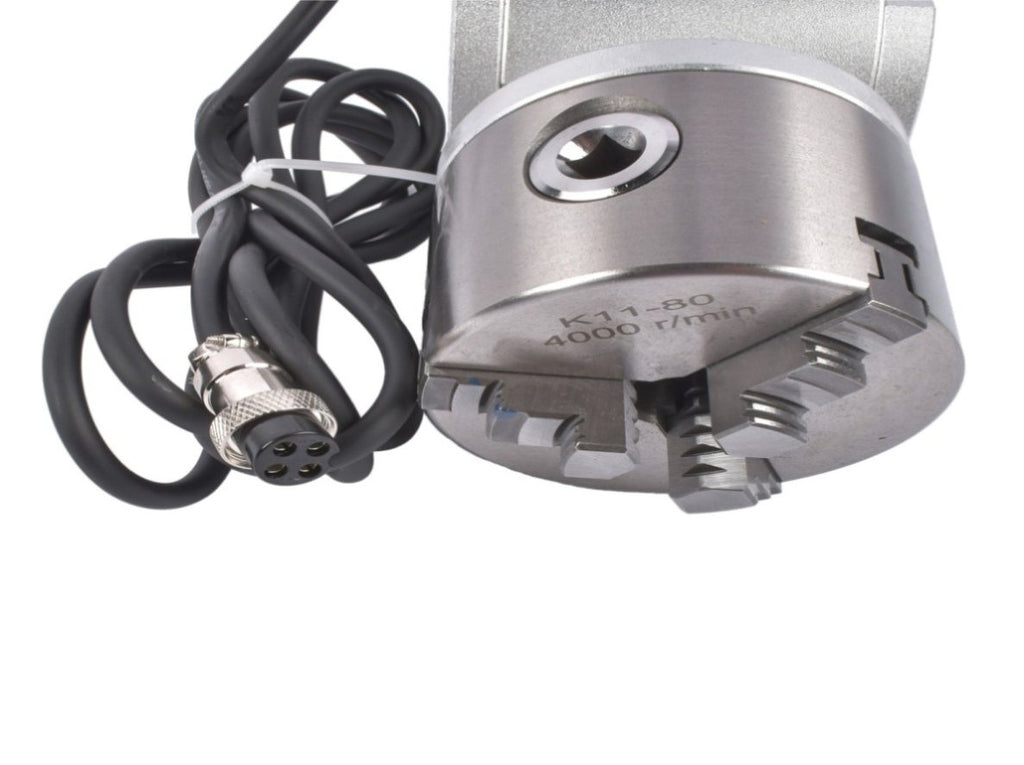

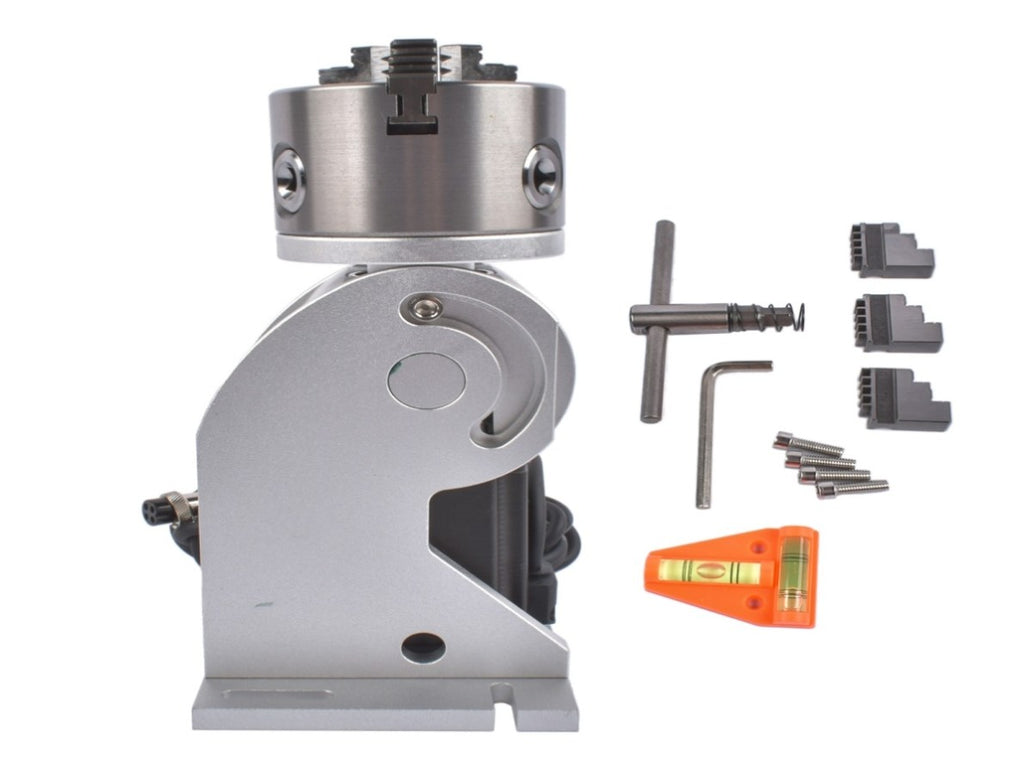

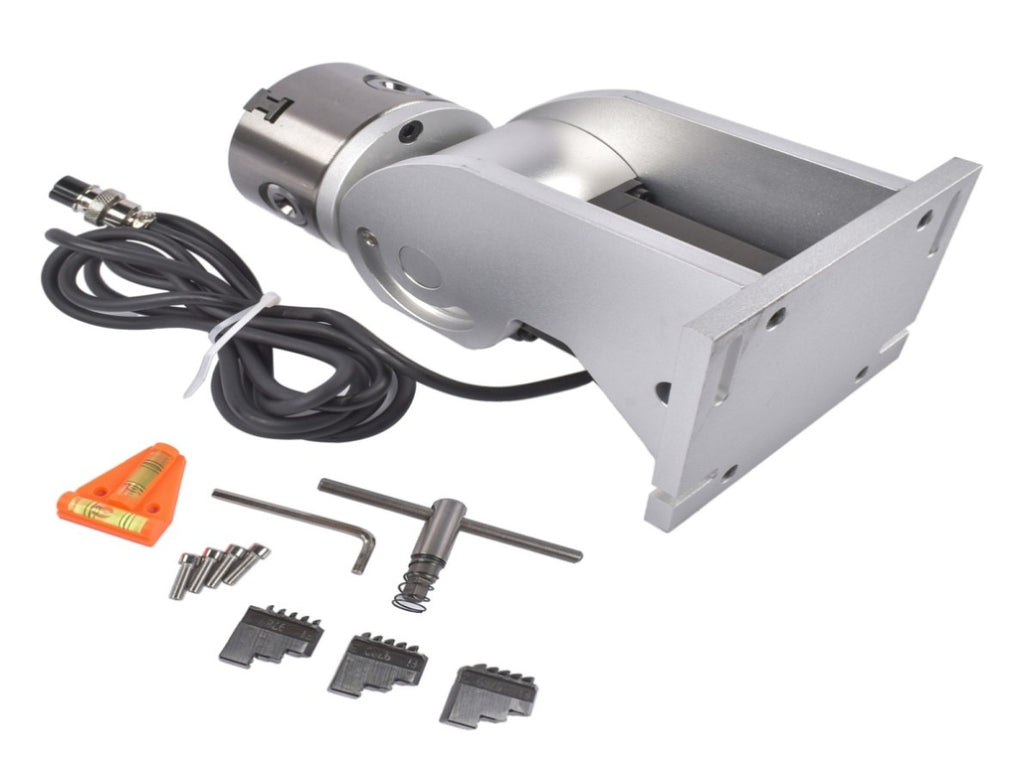

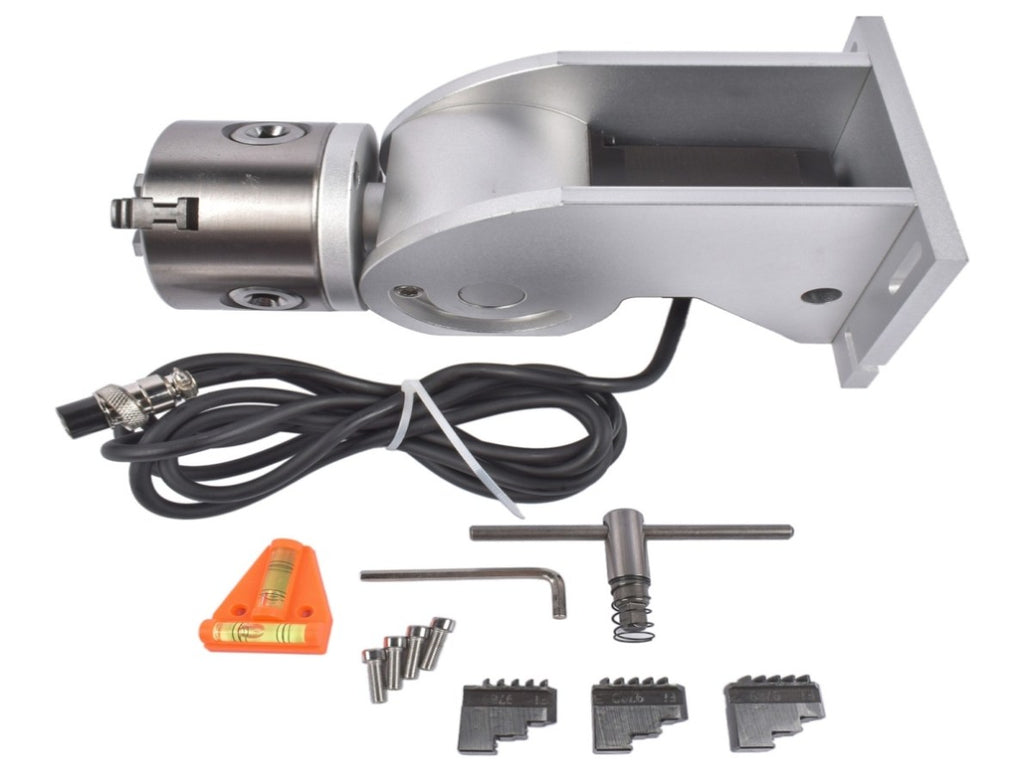

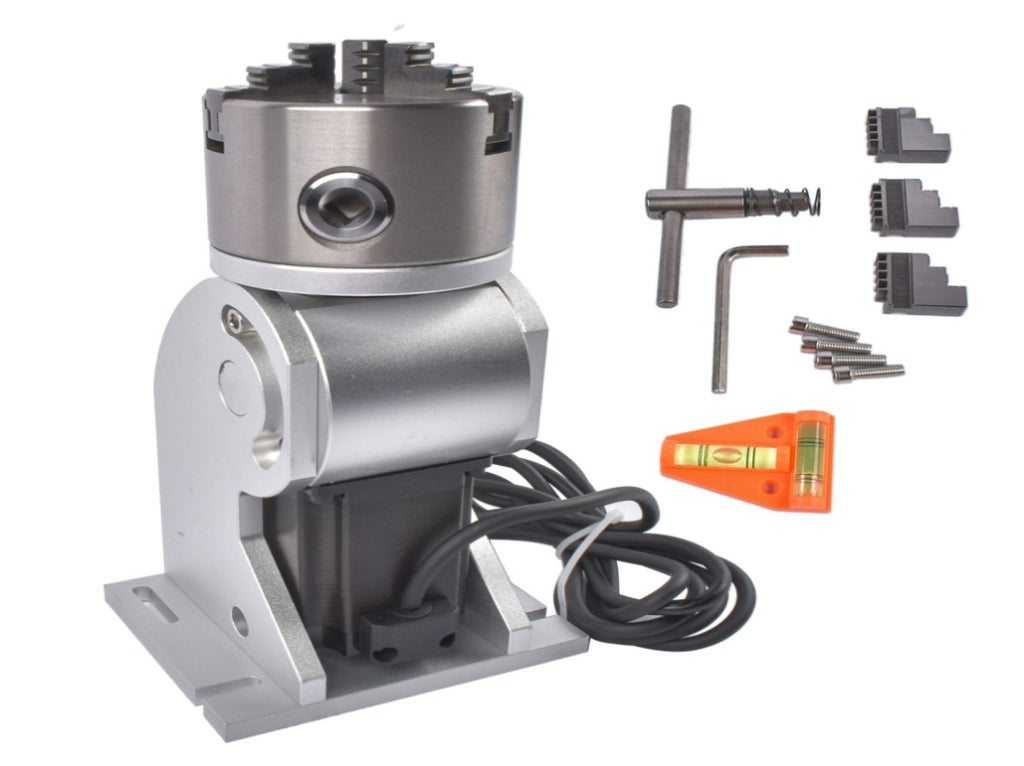

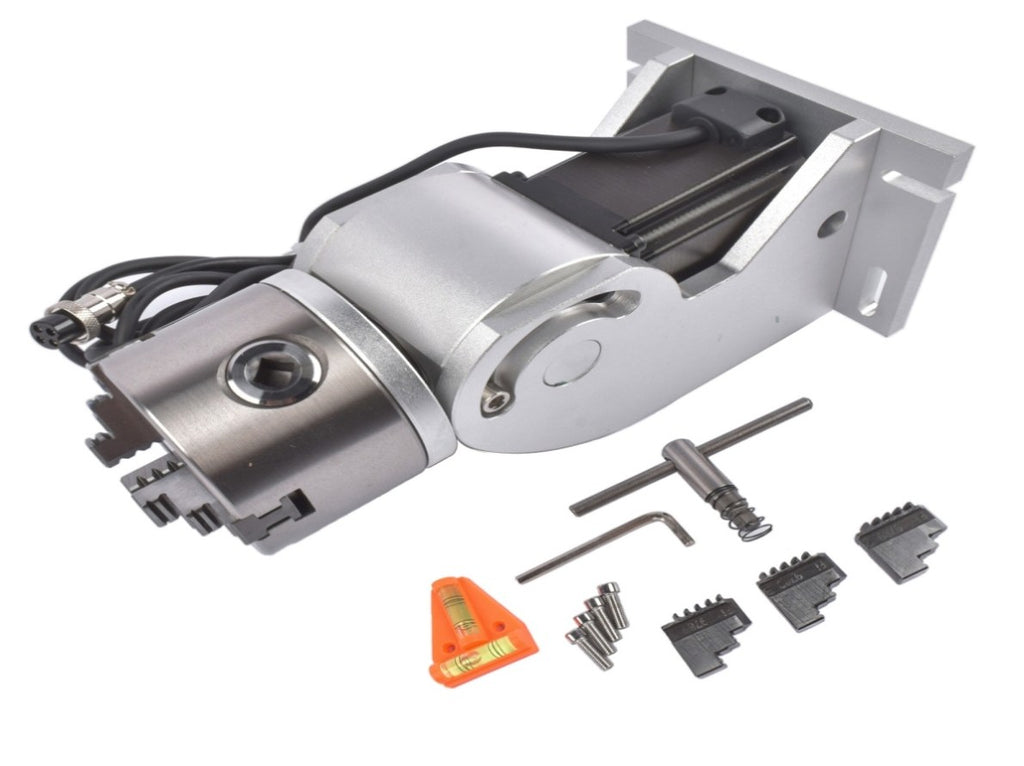

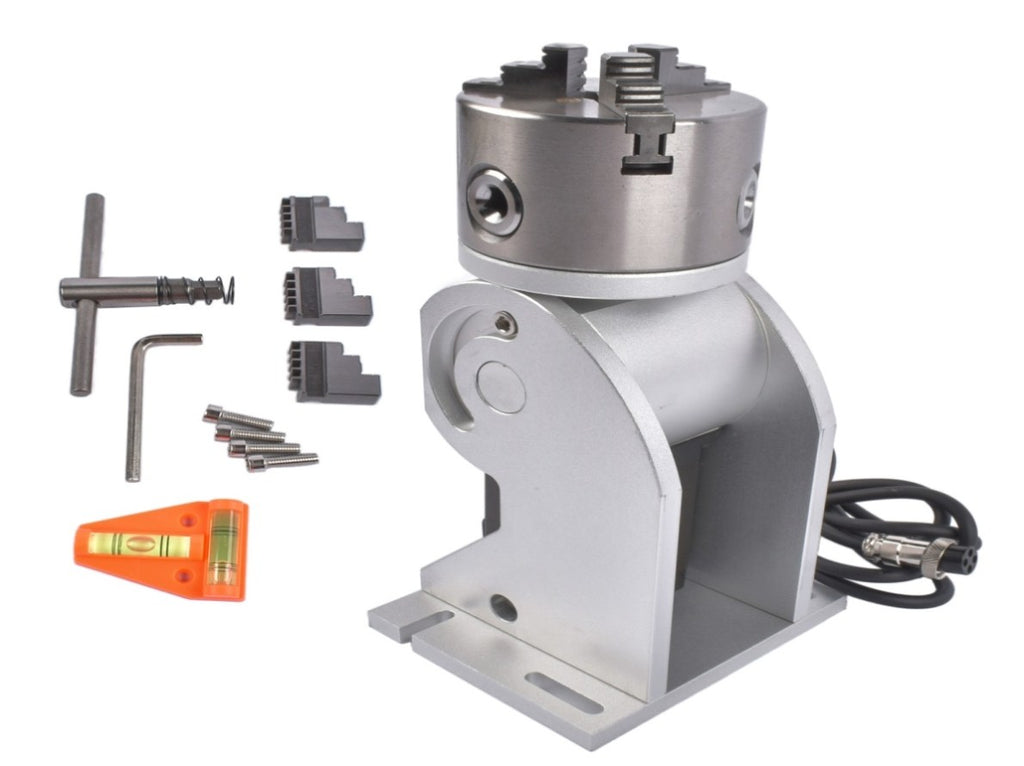

Lathe Rotary Chuck D80 360° Rotary Marking For Carving Engraving Marking Machine 54698118

Rotary axis parameters:

Fixture: 80mm chuck rotary fixture
Connection: Direct connection
Power supply: 24V
Specification: vertical total height of 250mm, flat centre height of 129mm
Reduction ratio: 1
Pitch angle: -45° to +90
Shaft height: 127mm
Max. Engraving Rotation: 360°
Max. Angle Adjustment: 180°

Features:

Chuck positive jaws clamping range: 2-22mm
Positive jaws support range: 25-70mm
Reverse jaws clamping range: 22-63mm
Maximum input torque: 40N.m
Maximum speed: 4000R / min
Clamping Jaw Slots: 3
