Marine Repair Kit fit for Yamaha F75B F90B F115 75-115HP 2002-2017 68V-W0078-01 24956320

Application:

fit for Yamaha Engine Models:4 Stroke 75 90 115 hp

fit for the Following Yamaha 4 Stroke Outboards:75hp - F75B 2017

fit for the Following Yamaha 4 Stroke Outboards:90hp - F90B 2016-2017

fit for the Following Yamaha 4 Stroke Outboards:115hp - F115/LF115 2002-2017 and VF115 2015-2017

OE/Part number:

68V-W0078-00,68V-W0078-01,18-3442

Specification:

Type:Outboard Water Pump Impeller Repair Kit

Material：Rubber+Stainless Steel+Plastic

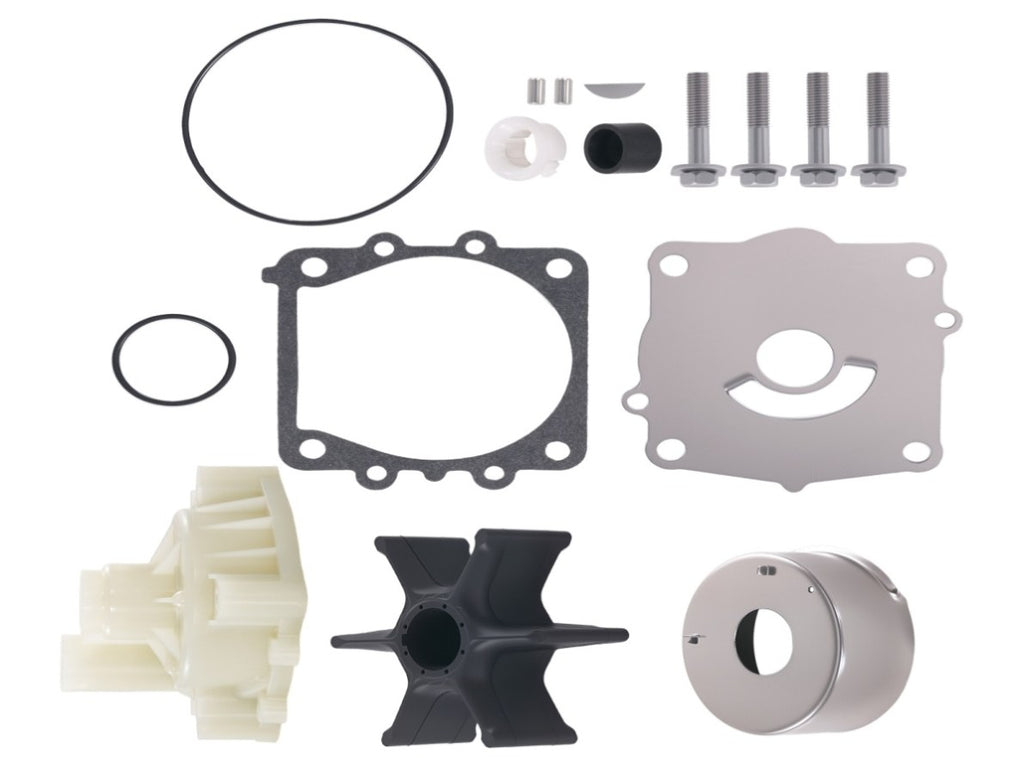

Package included:

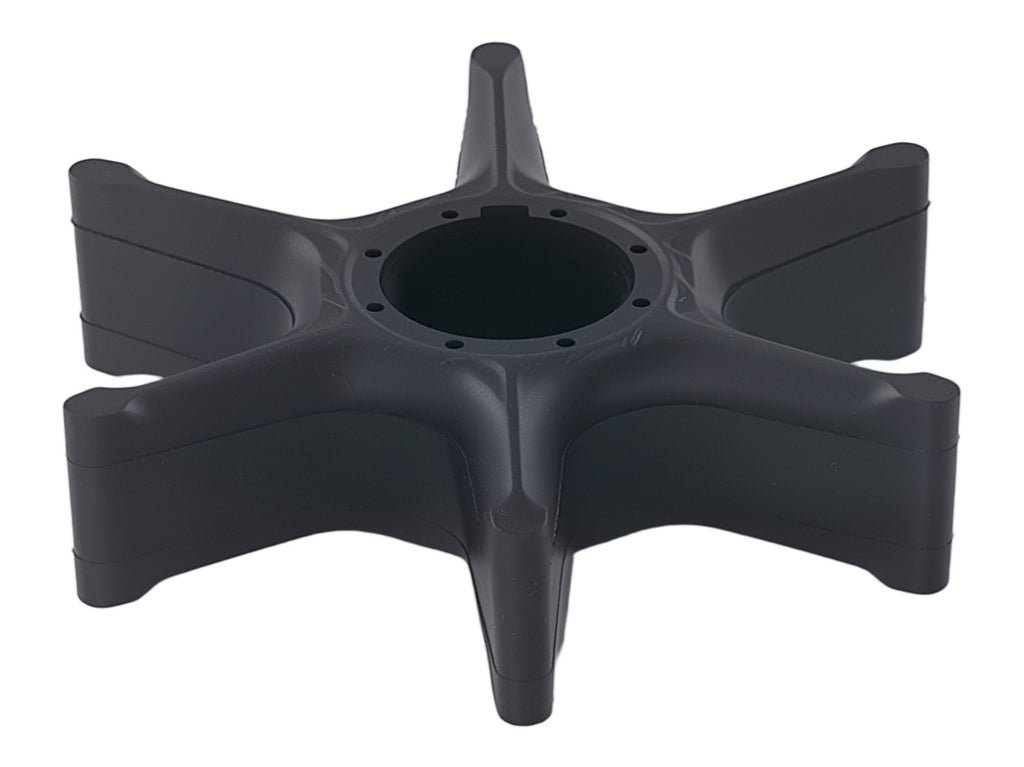

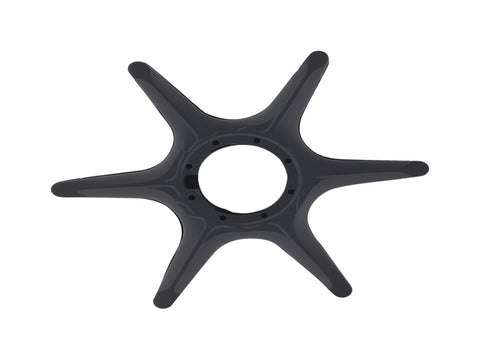

1*Water Pump Impeller 6E5-44352-00

1*Key, Impeller 90280-04M05-00

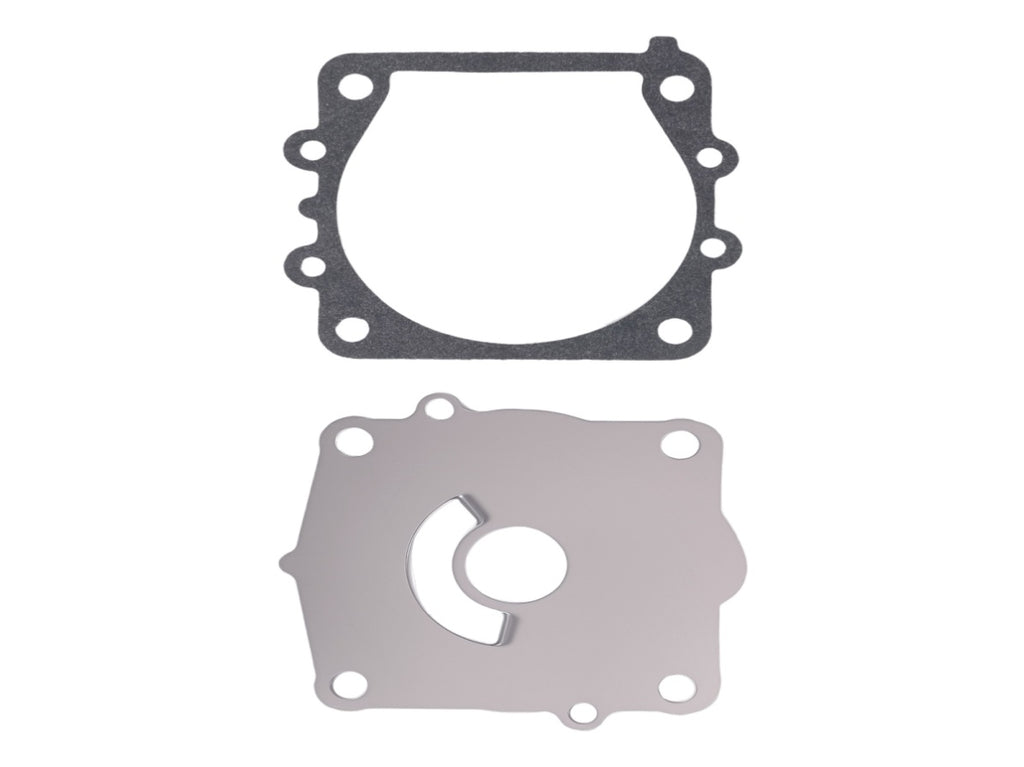

2*Gasket, Water Pump 6E5-44315-A0-00

4*Bolt 97095-08045-00

1*Housing, Water Pump 61A-44311-01-00

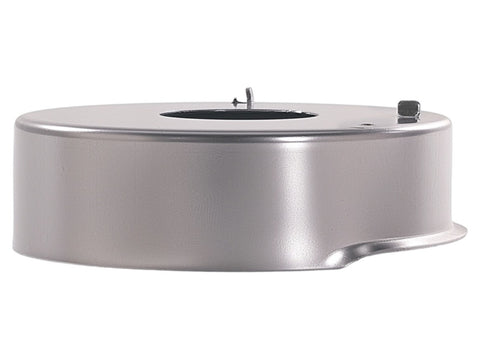

1*Cup, Insert 61A-44322-02-00

1*Plate, Wear 68V-44323-00-00

1*O-Ring (6G8) 93210-37M67-00

1*O-Ring 93210-86M38-00

2* Pin, Dowel 93606-12019-00

4*Washer, Bolt 90209-08M02-00

(It same to the picture shown )
