NEW MA0507E AC MOTOR, 3/4HP, 1725RPM, 3PH, 206-230V/460V, 56C/TEFC, WITH BASE 12240543

Part Number

MA0507E

Specifications

HP: 3/4

Voltage: 208-230/460V

RPM: 1725

Phase: 3

Frame: 56C

Hertz: 60

Enclosure: TEFC

Full Load Amp: 2.5/1.24

Insulation: F

Overload: None

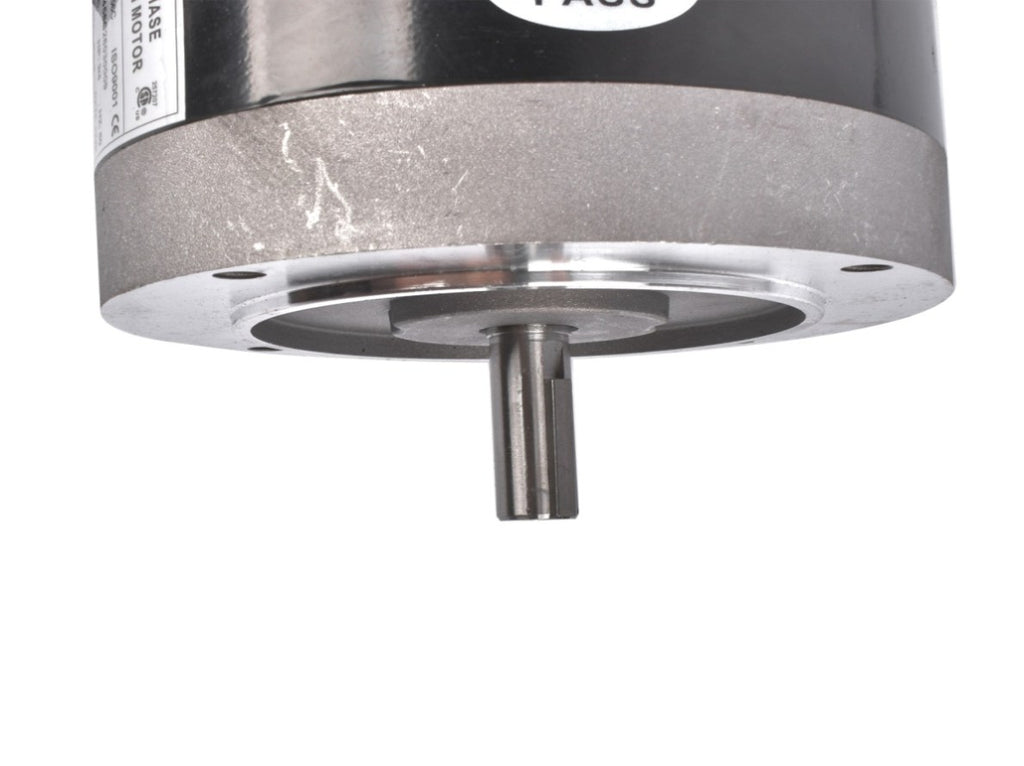

Shaft size: 5/8"

Service Factor: 1.15

"C" Dimension: 11.9"

Rotation: Reversible

Features

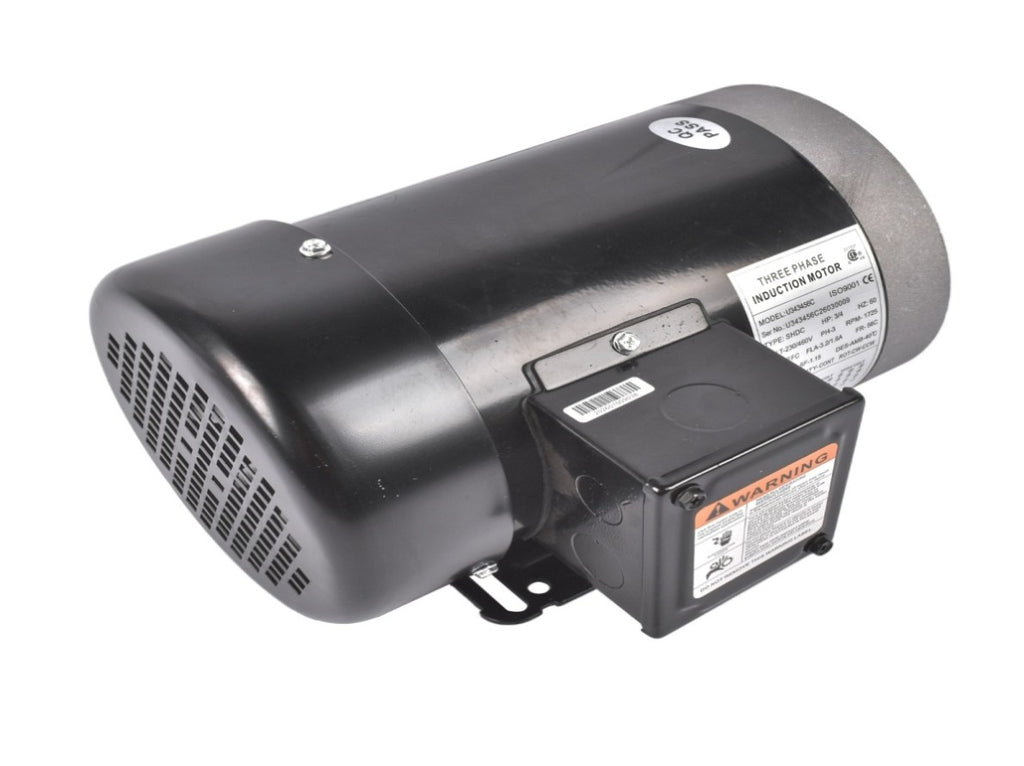

Totally Enclosed Fan Cooled (TEFC) enclosure

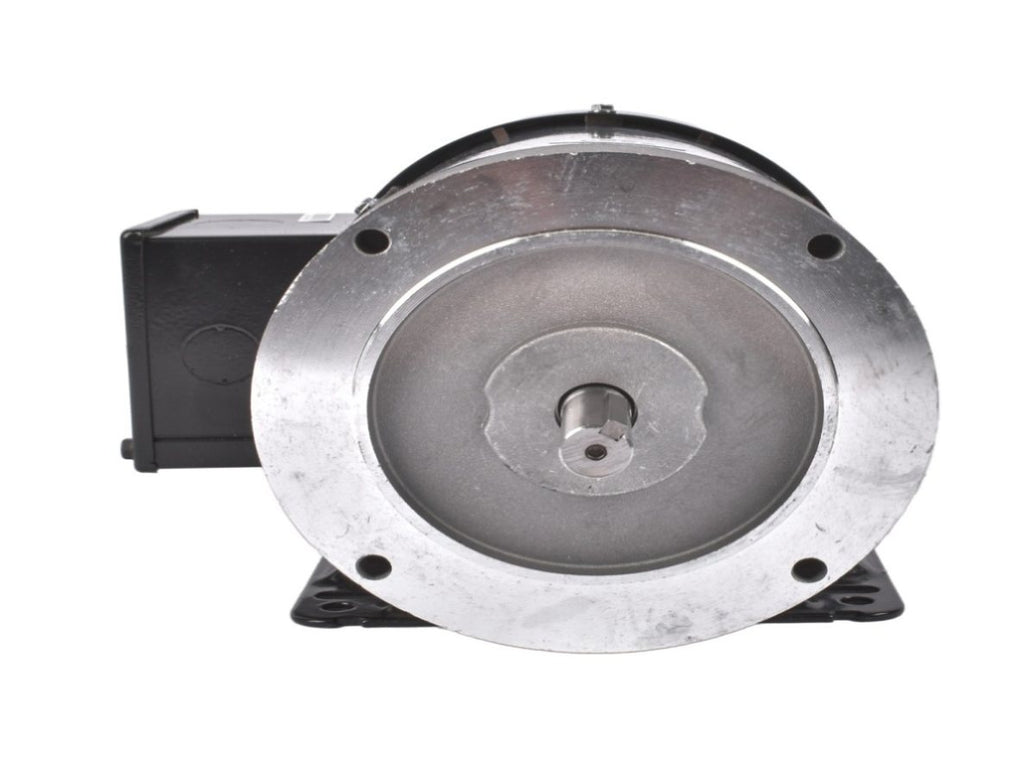

Dual mounting with NEMA 56C and removable base

Class F winding insulation

Inverter duty

Rolled steel shell frame / cast aluminum end bell

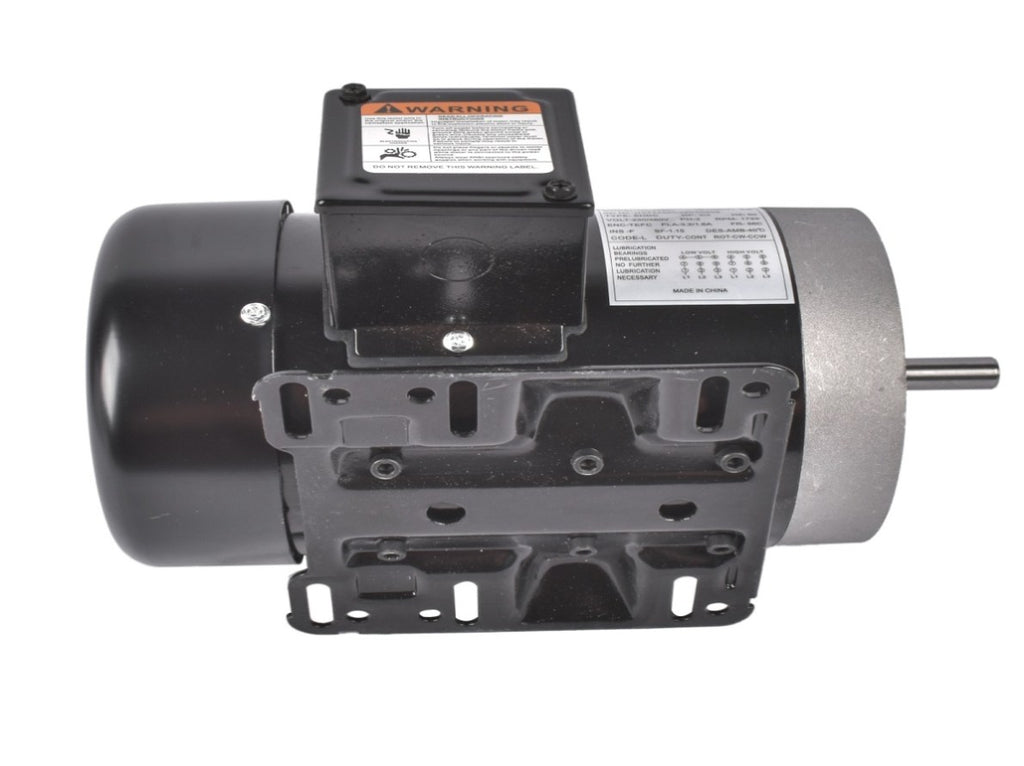

Removable base / bolt-on/bolt-off mounting feet

Large all-metal capacitor cover with rubber gasket

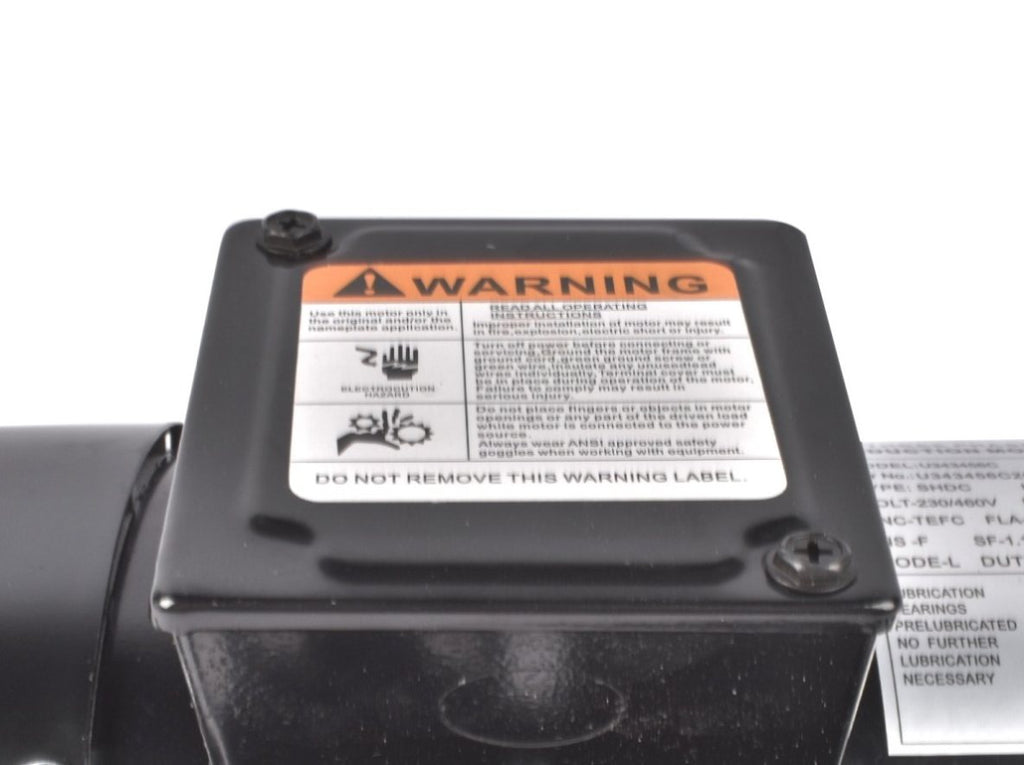

Large easy-to-wire junction box with rubber gasket

Heavy duty oversized ball bearings

High tensile strength steel shaft

Electrically reversible

NEMA design B

Service Factor: 1.15

Package Includes

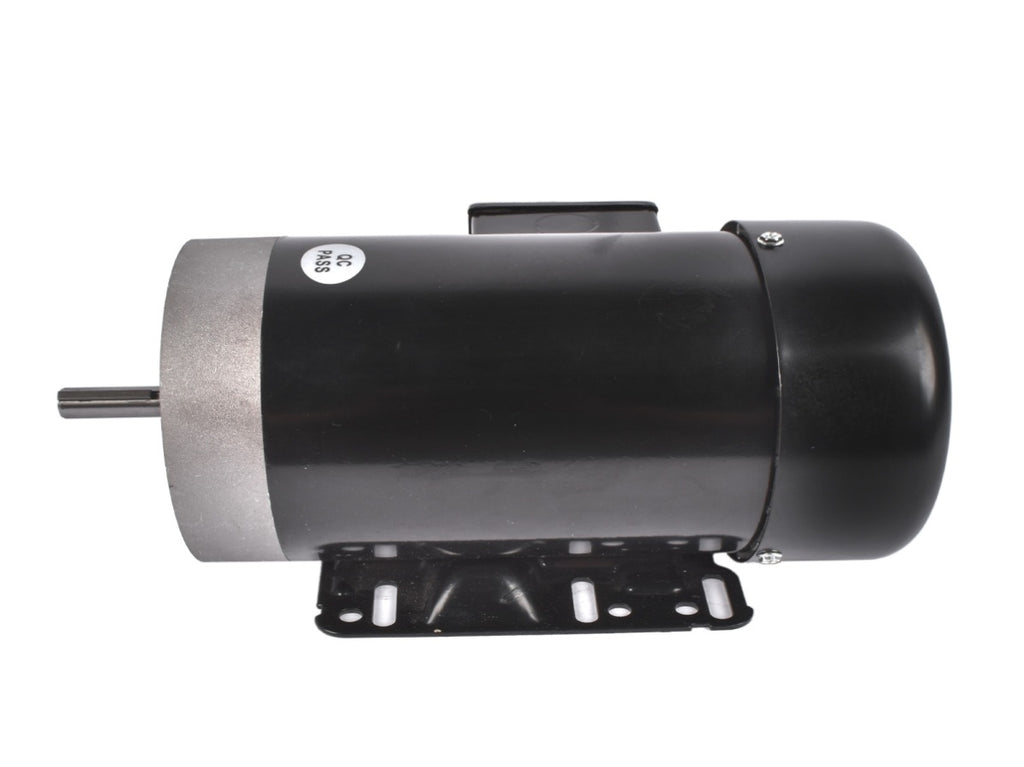

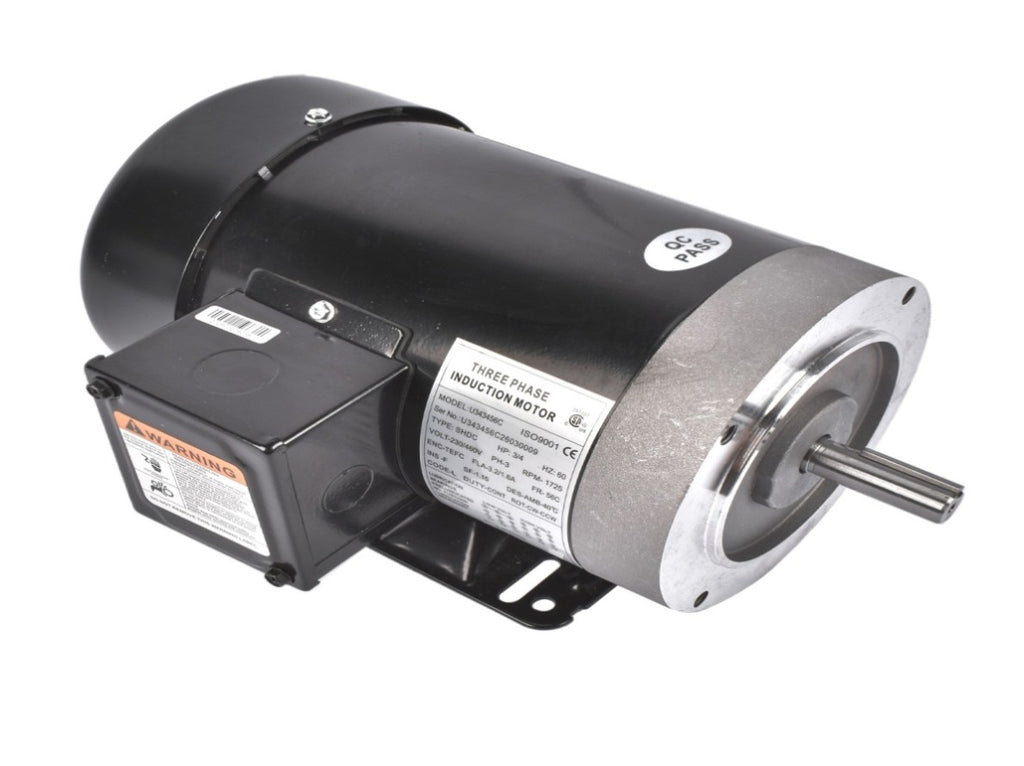

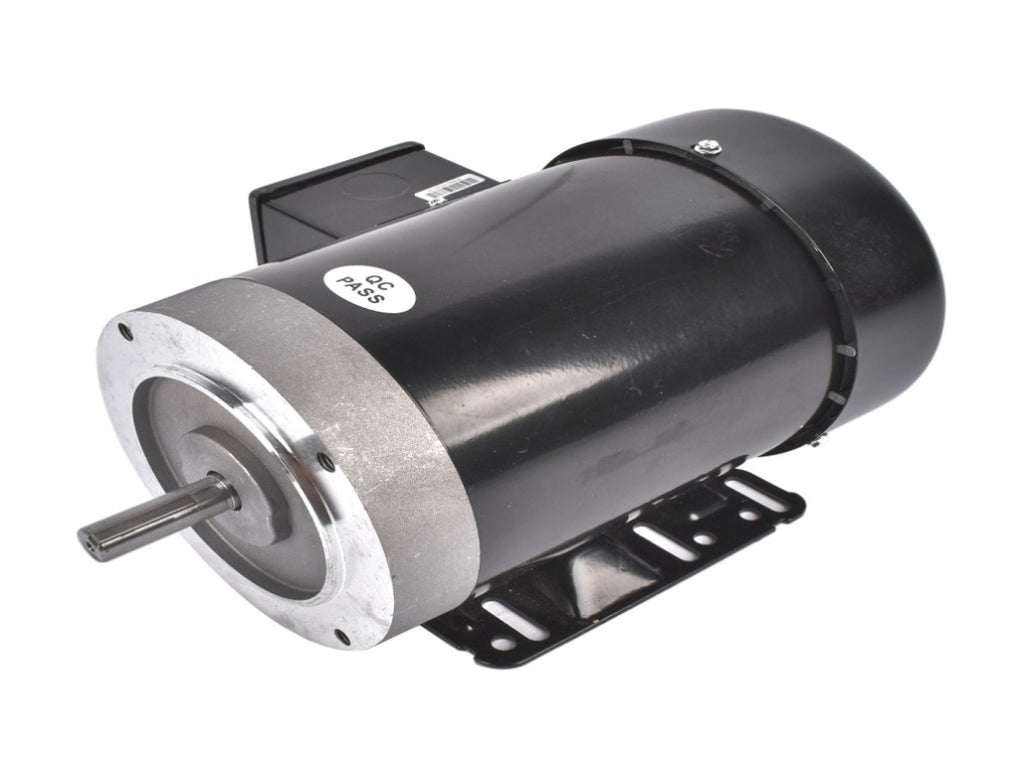

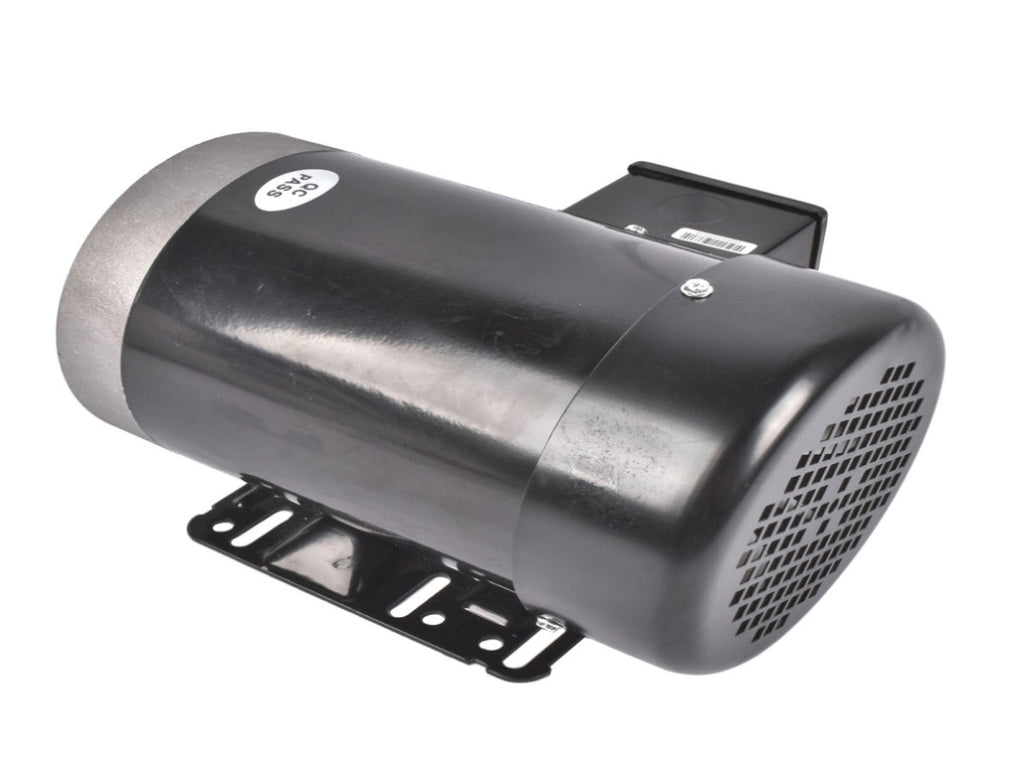

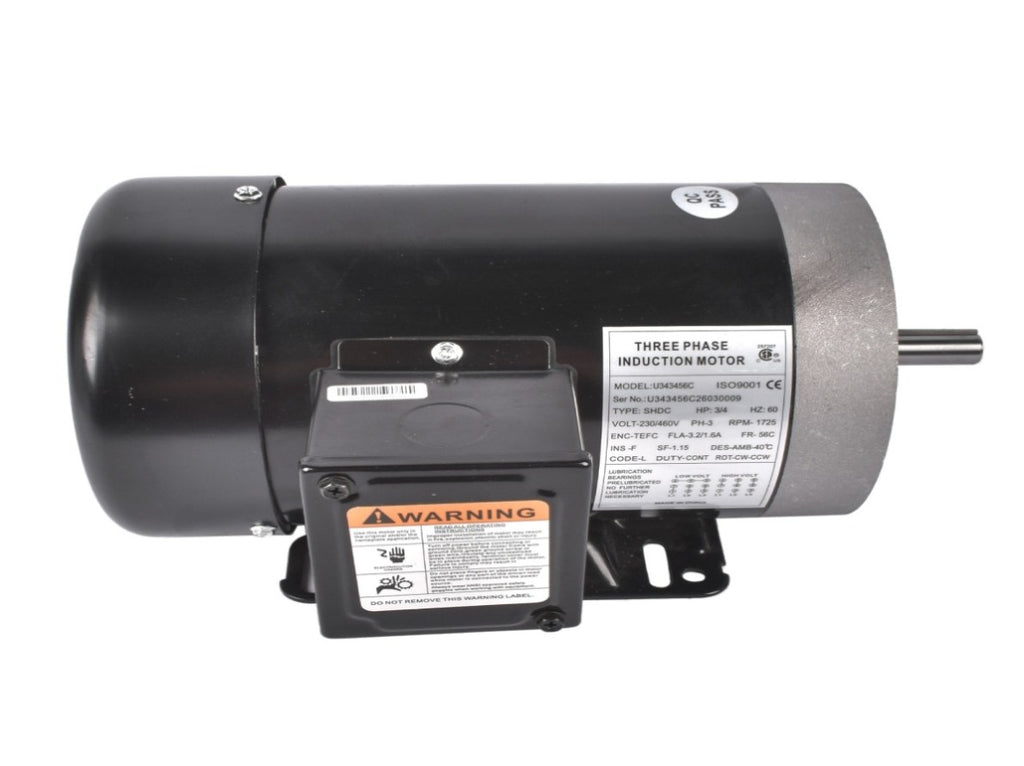

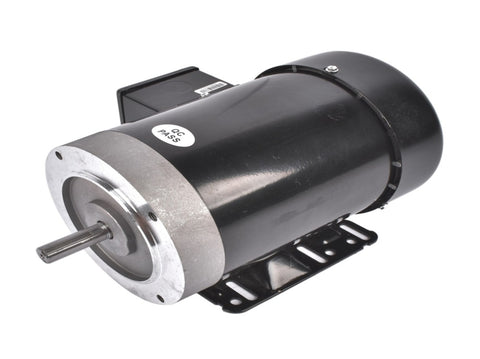

1x MA0507E AC Motor (As Pics Shown)
