Primary & Secondary Drive Clutch Kit fit for Can-Am Maverick X3 Turbo RR R 2018-2023 23934247

Notice:
* Professional installation is highly recommended. Unprofessional installation may cause abnormal noises
* Please confirm your vehicle condition and OEM number before placing an order!
* No Instruction Included


Application:
fit for Can-Am Maverick X3 R Turbo (all Turbo R packages including DS, XMR, XRC, MAX) 2018-2023
fit for Can-Am Maverick X3 RR Turbo (all packages of 2020 Turbo RR models) 2020-2023
fit for Can-Am Maverick X3 Turbo (all Turbo packages including XMR & XRC) 2017-2023

Part Number:
420280626, 420686738, 420280846, 420638126, 420280706, 420280461,420280725

Specification:
Condition: New
Material: Aluminium
Machine Type: ATV; UTV
Fitment Type: Direct Replacement

Size:

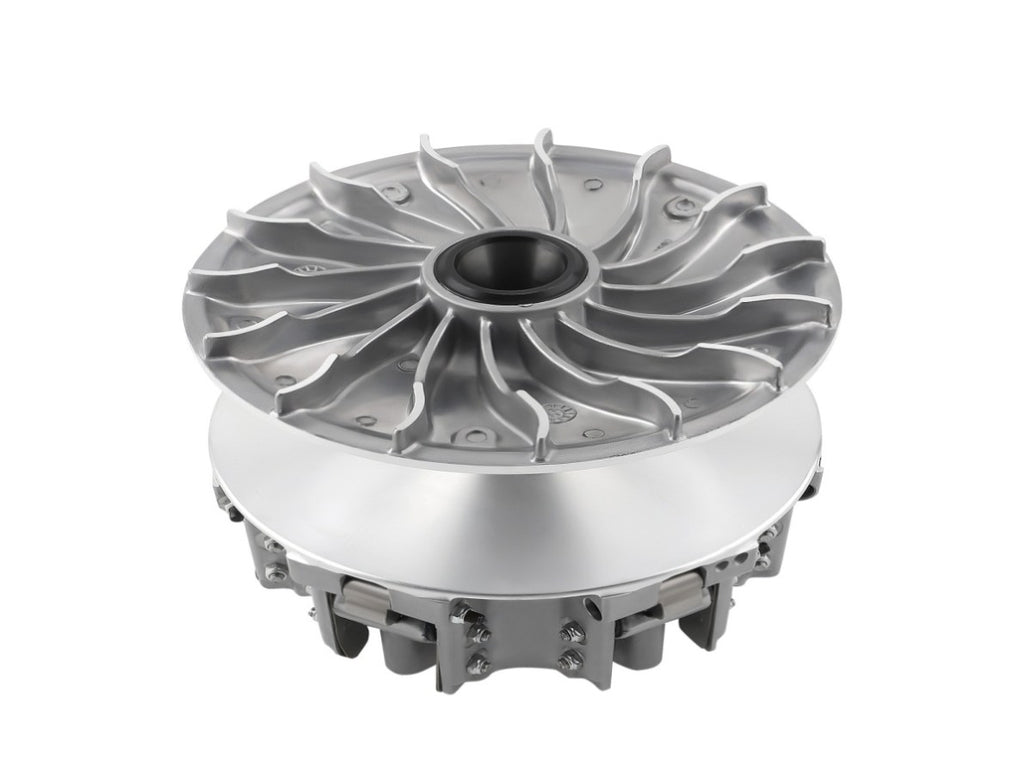

Primary Drive Clutch：
Height: 183mm
Disc Outer Diameter: 205mm
Disc Inner Diameter: 32.8mm
Tube Diameter: 18mm

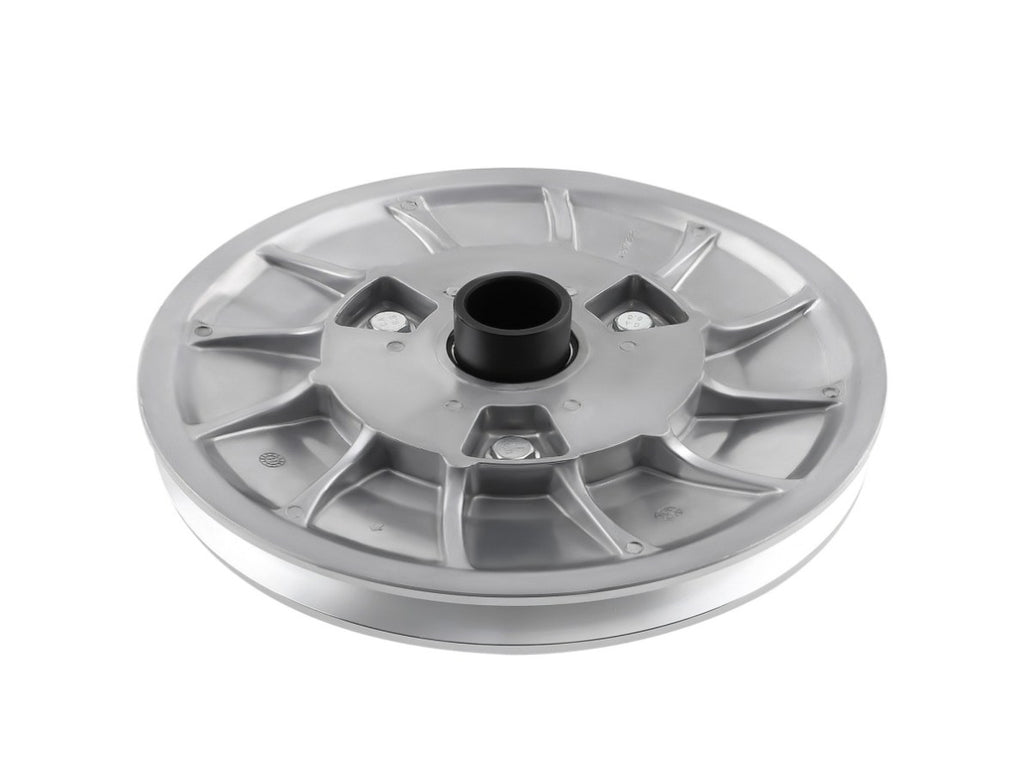

Secondary Drive Clutch：
Height: 166.5mm
Disc Outer Diameter: 270mm
Disc Inner Diameter: 36mm
Tube Diameter: 32mm

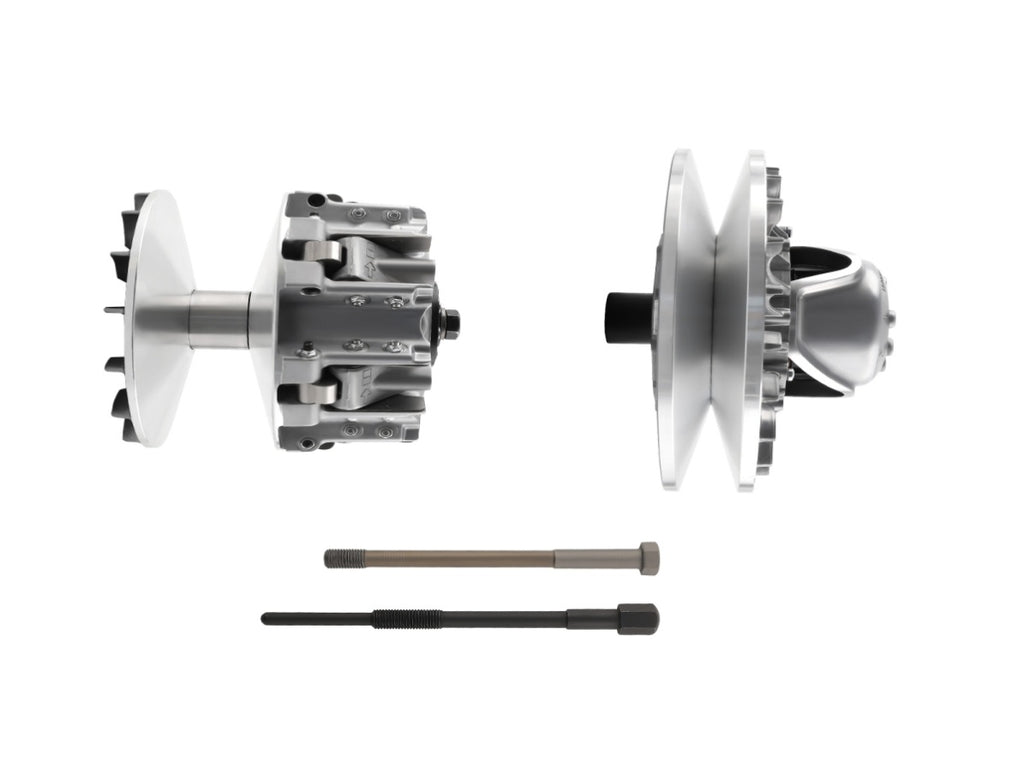

Package Includes:

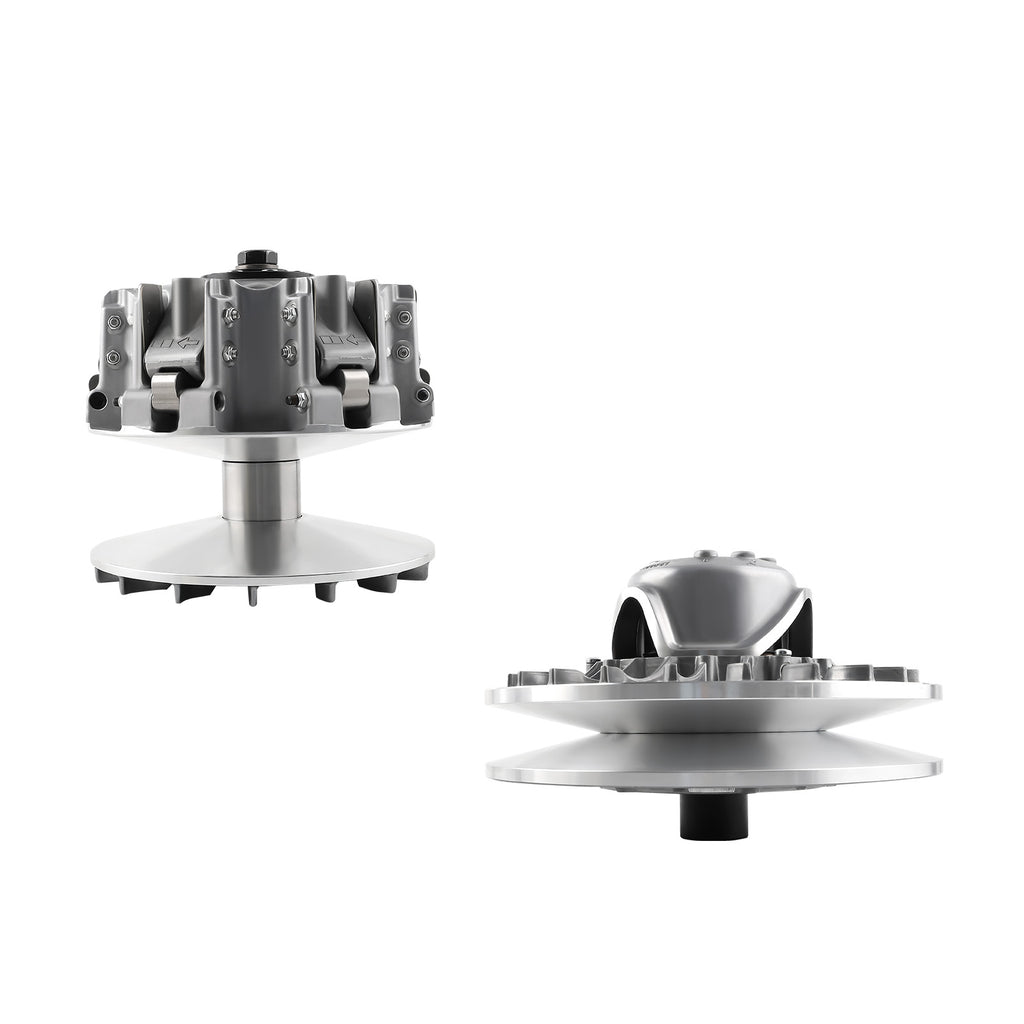

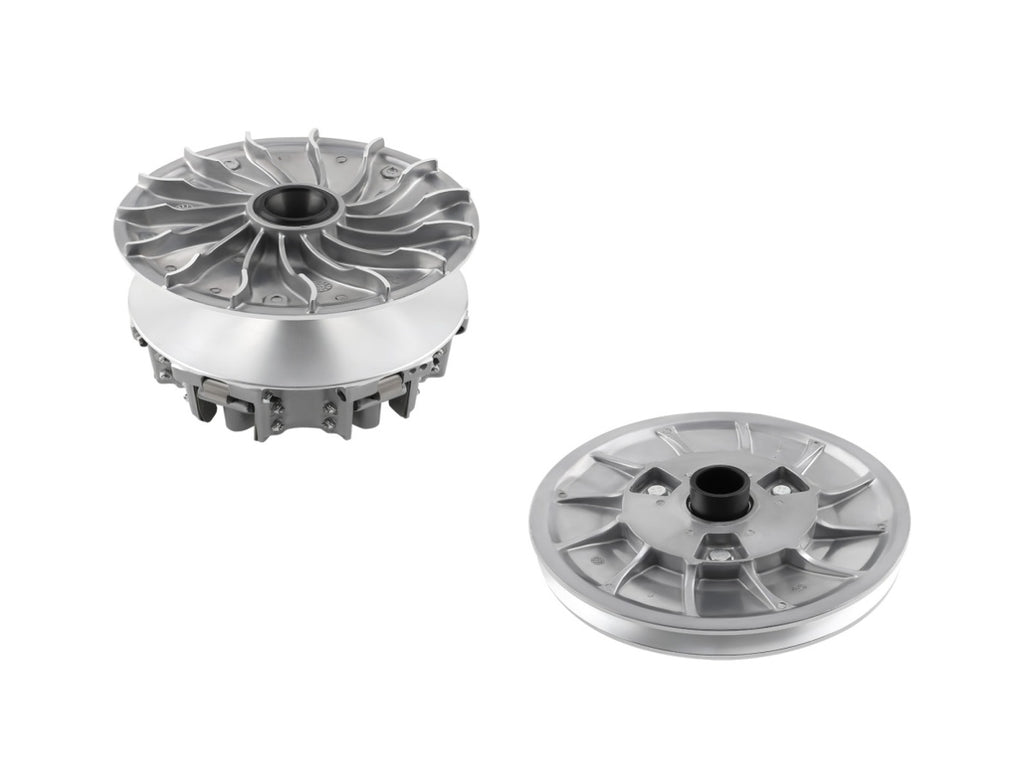

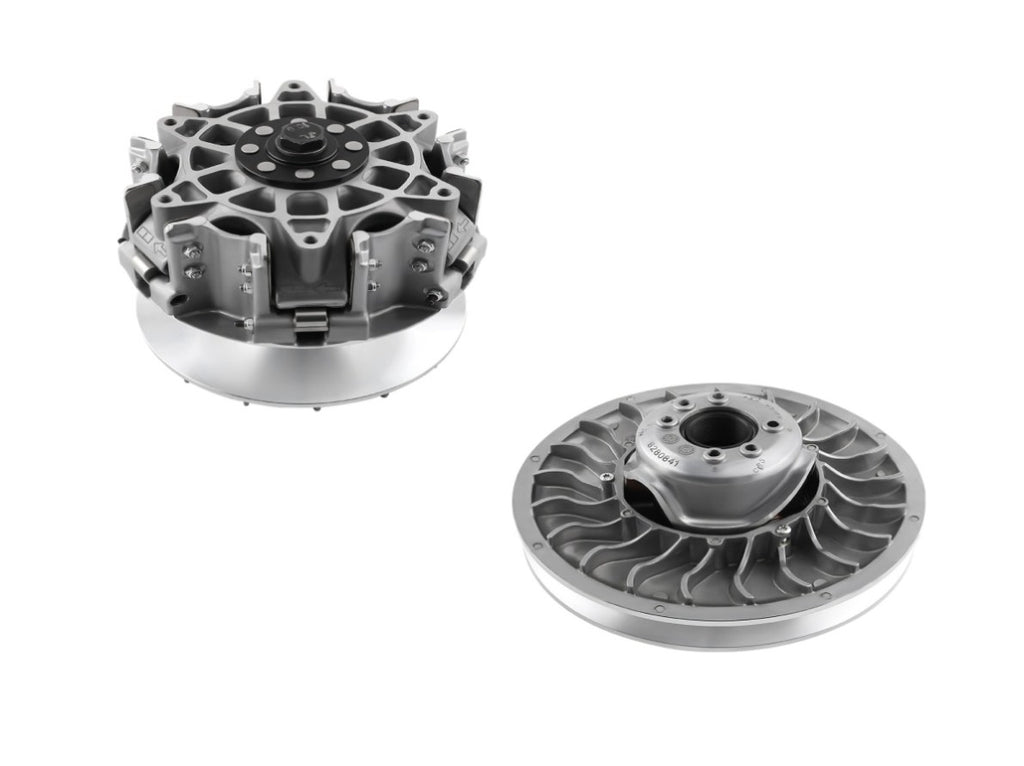

1x Primary Clutch
1x Secondary Clutch
1x Mounting Bolt
1x Primary Clutch Removal Tool
(As the Pictures Show)

The Spline Alignment Procedure:
1. Shift the vehicle into Reverse (R) gear.
2. Continuously adjust the spline shaft until a metallic click is heard from the driven gear and there is no more wobbling.
3. Shift back into Park (P) gear.
4. Tighten the bolt using a wrench.
