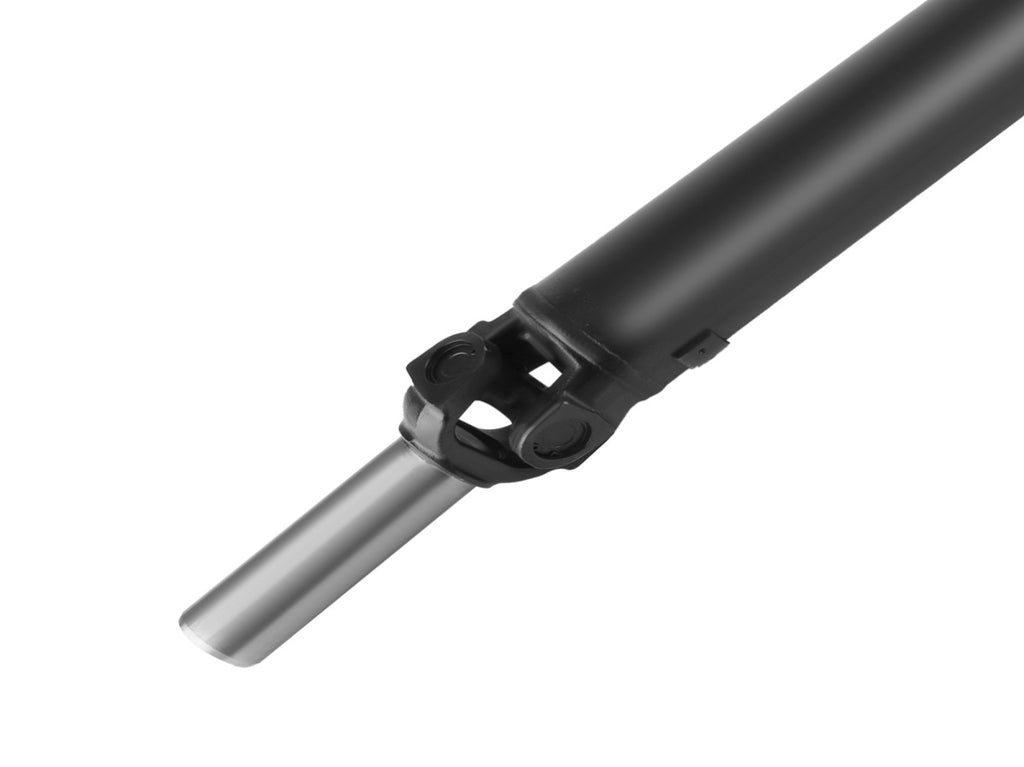

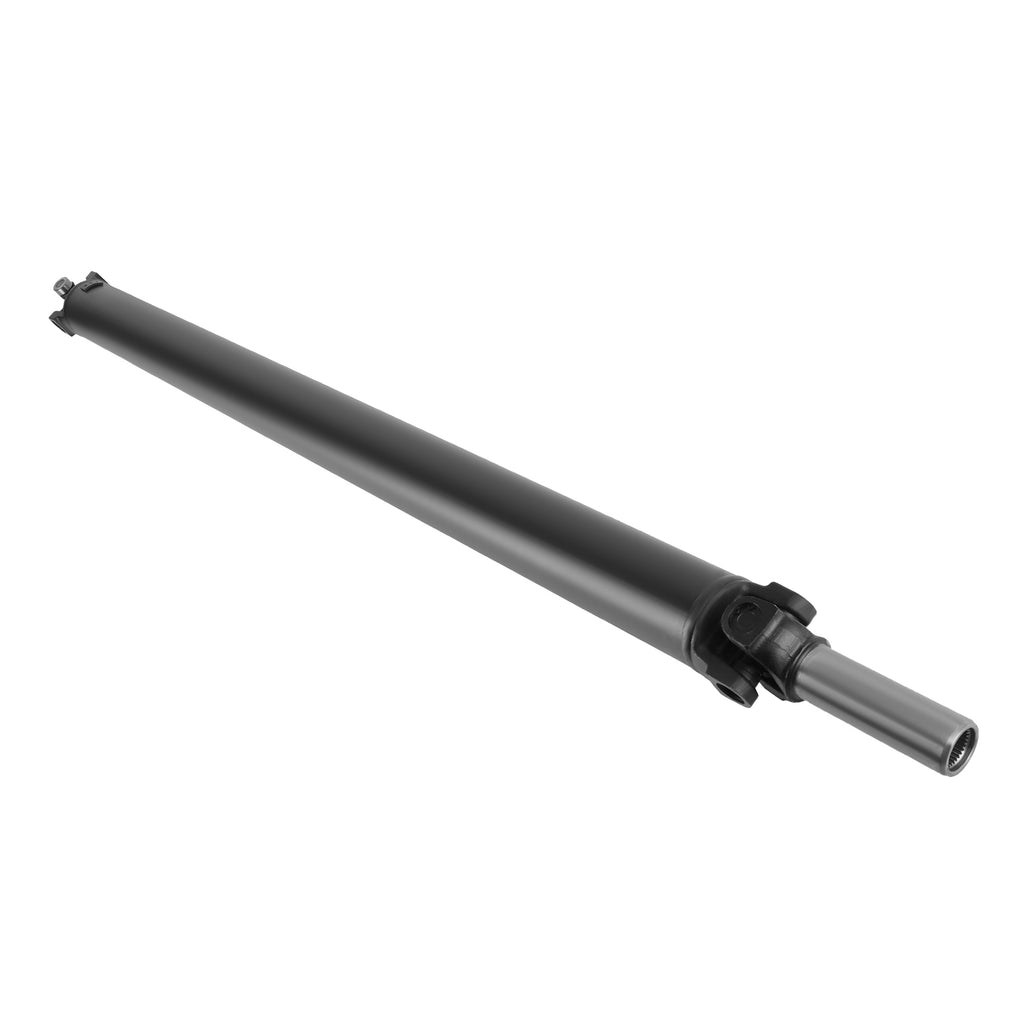

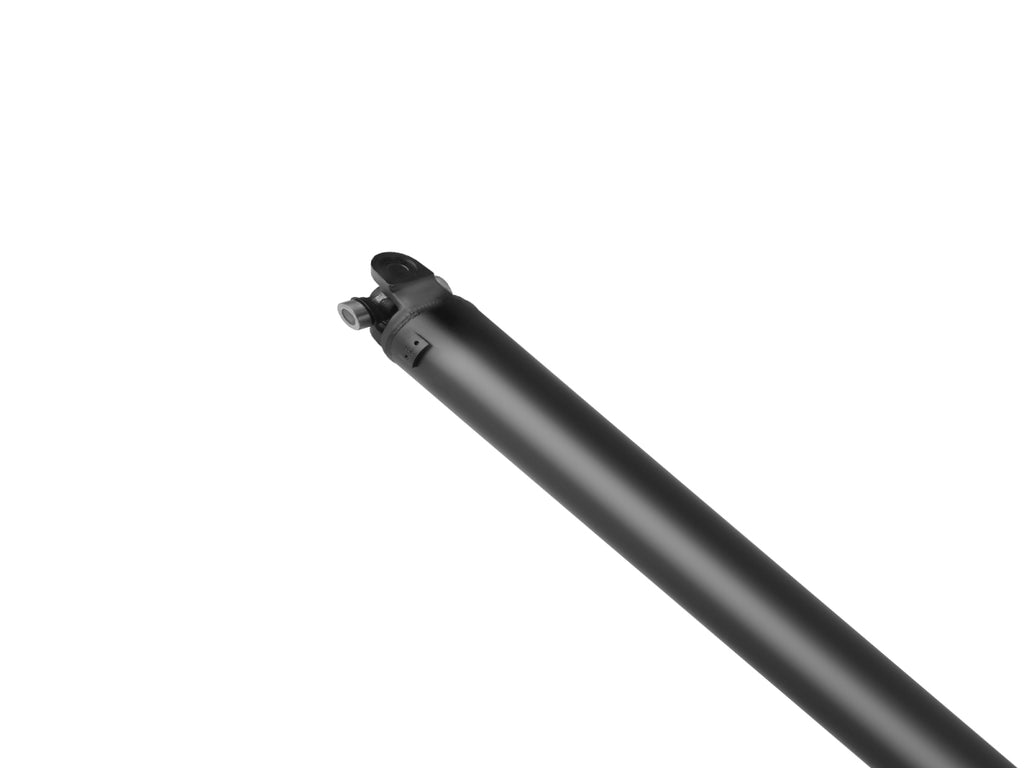

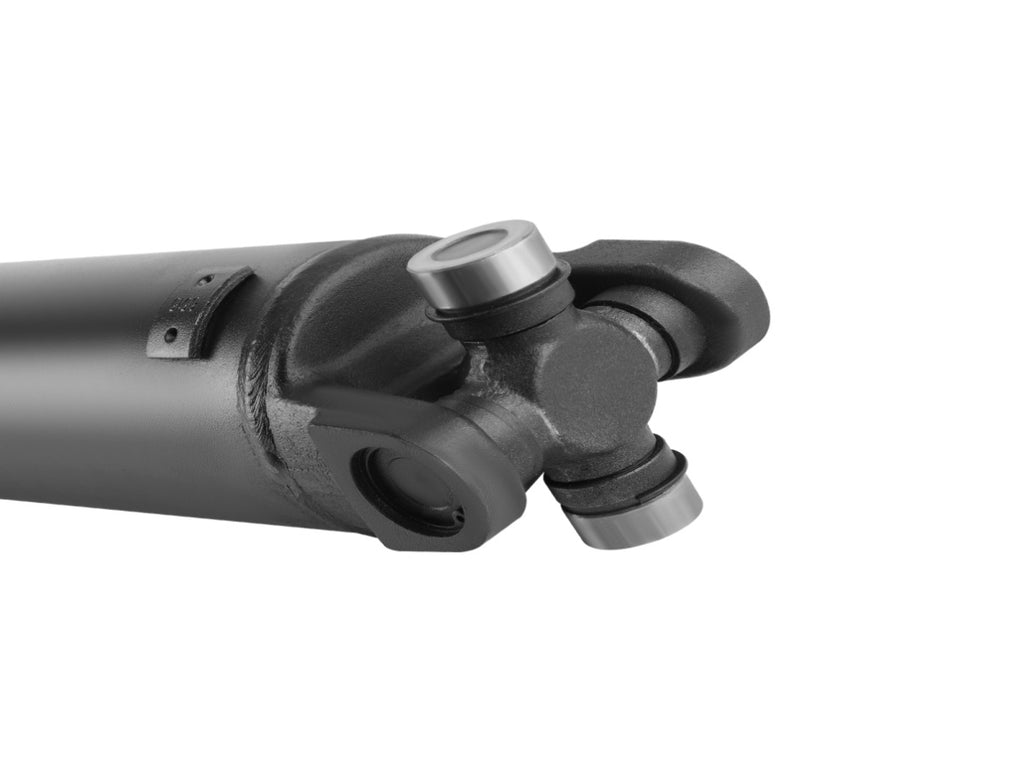

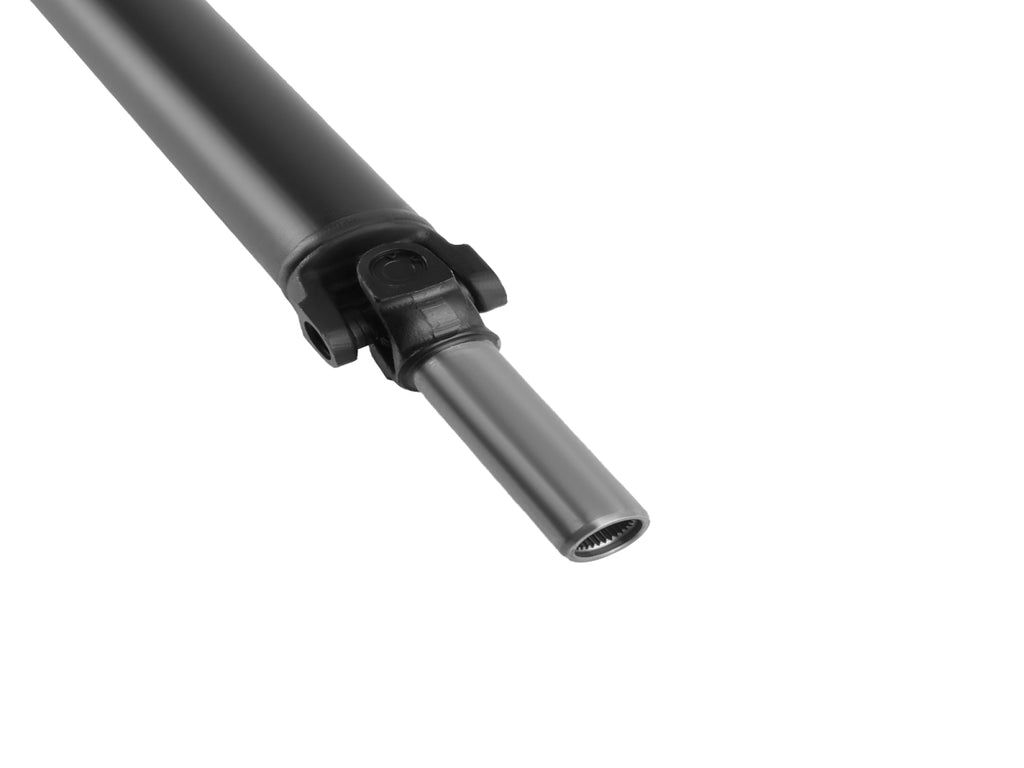

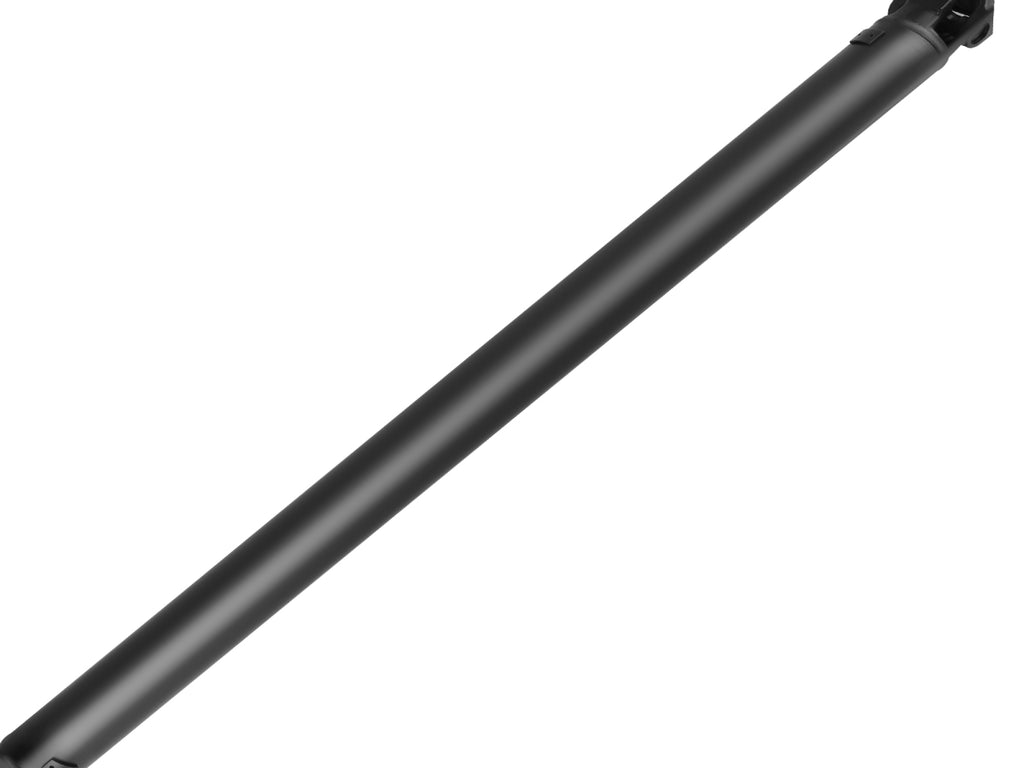

Rear Driveshaft Prop Shaft Assembly fit for Chevrolet K1500 1988-1999 GMC 4WD 976023 44491094
| Make | Model | Year | Engine | Note |
| fit for Chevrolet | K1500 | 1988-1991 | All Engine | |
| K1500 | 1992 | All Engine | Auto Trans, THM700-R4/4L60/MD8 Trans | |
| K1500 | 1992 | All Engine | 5LM60/MG5 Trans.or NV3500/MG5 Trans; 5 Speed Trans | |
| K1500 | 1993 | All Engine | Automatic Trans.; 4L60-E Trans. | |
| K1500 | 1993-1998 | All Engine | Manual Trans.; NV3500/MG5 Trans.; 5 Speed Trans | |
| K1500 | 1994-1995 | V8 6.5L | Automatic Trans.; 4L60-E Trans. | |
| K1500 | 1994-1998 | V8 5.7L | Automatic Trans.; 4L60-E Trans. | |
| K1500 | 1994-1998 | V8 5.0L | Automatic Trans.; 4L60-E Trans. | |
| K1500 | 1994-1998 | V6 4.3L | Automatic Trans.; 4L60-E Trans. | |
| K1500 | 1996 | All Engine | NV3500/M50 Trans.or 5LM60/MG5 Trans. | |
| K1500 | 1997-1998 | All Engine | Manual Trans.; NV3500/M50 Trans.; 5 Speed Trans | |
| fit for K1500 Suburban | 1992 | V8 5.7L | Automatic Trans.; THM700-R4/4L60/MD8 Trans. | |
| 1993-1997 | V8 5.7L | Automatic Trans.; 4L60-E Trans. | ||
| 1998-1999 | All Engine | Automatic Trans.; 4L60-E Trans. | ||
| fit for GMC | K1500 | 1988-1991 | All Engine | |
| K1500 | 1992 | All Engine | Automatic Trans, THM700-R4/4L60/MD8 Trans | |
| K1500 | 1992 | All Engine | 5LM60/MG5 Trans.or NV3500/MG5 Trans; 5 Speed Trans | |
| K1500 | 1993 | All Engine | Automatic Trans.; 4L60-E Trans. | |
| K1500 | 1993-1998 | All Engine | Manual Trans.; NV3500/MG5 Trans.; 5 Speed Trans | |
| K1500 | 1994-1995 | V8 6.5L | Automatic Trans.; 4L60-E Trans. | |
| K1500 | 1994-1998 | V8 5.7L | Automatic Trans.; 4L60-E Trans. | |
| K1500 | 1994-1998 | V8 5.0L | Automatic Trans.; 4L60-E Trans. | |
| K1500 | 1994-1998 | V6 4.3L | Automatic Trans.; 4L60-E Trans. | |
| K1500 | 1996 | All Engine | NV3500/M50 Trans.or 5LM60/MG5 Trans.; 5 Speed Trans | |
| K1500 | 1997-1998 | All Engine | Manual Trans.; NV3500/M50 Trans.; 5 Speed Trans | |
| fit for K1500 Suburban | 1992 | V8 5.7L | Automatic Trans.; THM700-R4/4L60/MD8 Trans. | |
| 1993-1997 | V8 5.7L | Automatic Trans.; 4L60-E Trans. | ||
| 1998-1999 | All Engine | Automatic Trans.; 4L60-E Trans. | ||
| 4WD(Four Wheel Drive) | ||||
Note-1: It fits fit for 4WD(Four Wheel Drive) Only!!!
Note-2: NOT fit 49.25, 72.5, 73.125, 88.205 or 88.715 inch Drive Shaft.
Note-3: fit for 1988-1998 K1500 fits 96.0" Bed, 131.5 Wheelbase & Standard Cab Pickup Only.
Note-4: fit for 1988-1998 K1500 NOT fits 78" Bed, 117.5 Wheelbase
Note-5: fit for 98-99 K1500 Suburban fits without RPO Code NP8(2 Speed,Push Button Shift,Transfer Case).
OE/Part number
976-023
976023
26020317
26050306
7849145
07849146
Specification
| Condition | New |
| Location | Rear |
| Material | Steel |
| Drive Shaft Total Length | 62.795 in |
| Drive Shaft Wall Thickness | 0.118 in |
| Drive Shaft Diameter | 3.543 in |
| Greaseable Drive Shaft | No |
| Overall Length Adjustable | No |
| Fitment Type | Direct Replacement |
Feature
* Reduce Vibration: Improve the balance performance , reduce machine vibration, improve the stability and reliability of machine transmission.
* Long Servie Life: reduce the wear of bearings, gears and other parts, thereby lengthening the life of the machine.
* Improve Transmission Efficiency: Eliminate deviations in bearings, gears, and other parts, thereby improving transmission efficiency.
* Reduce Energy Consumption: improve the overall power utilization efficiency of the machine, reducing the energy consumption of the machine.
Note
● Please confirm your vehicle condition and OE number before placing an order!
● Please note that this is an after-sales part, not an original part.
● We suggest that you seek professional installation to avoid unnecessary trouble.
● If you have any questions, please contact us.
