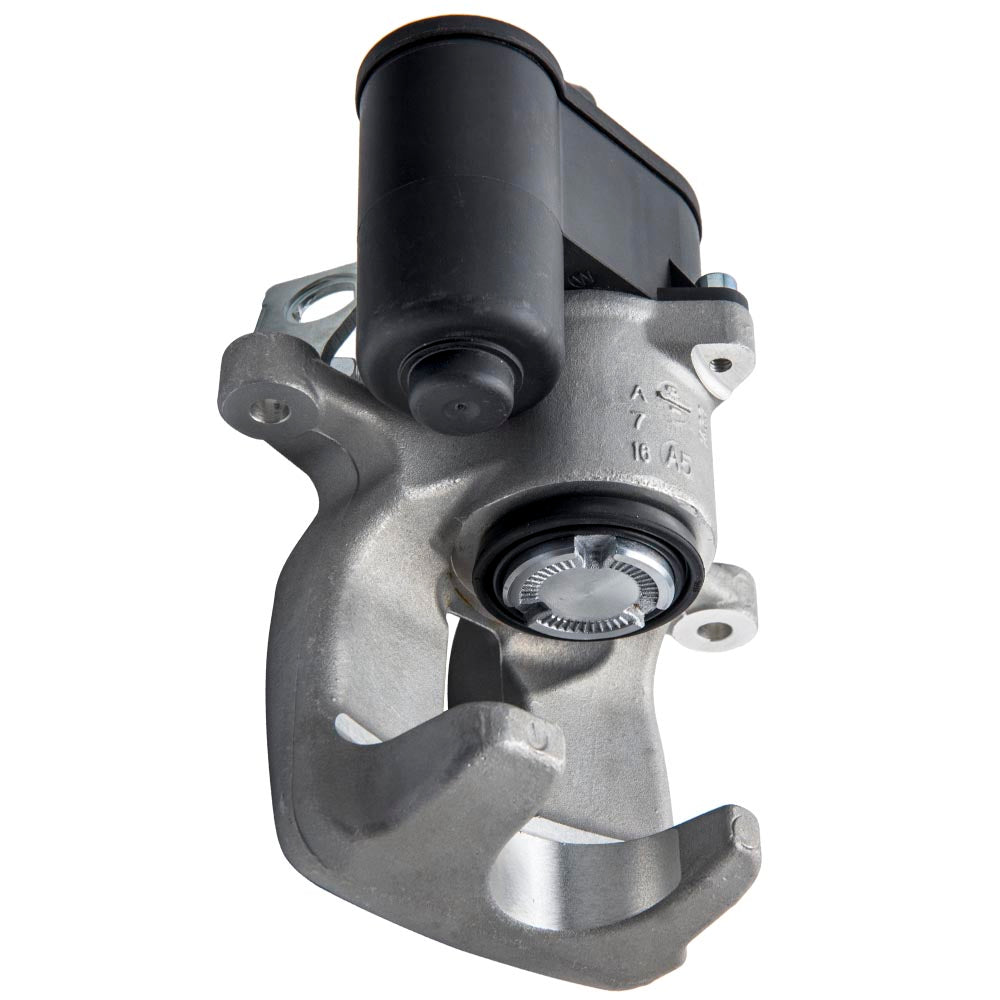

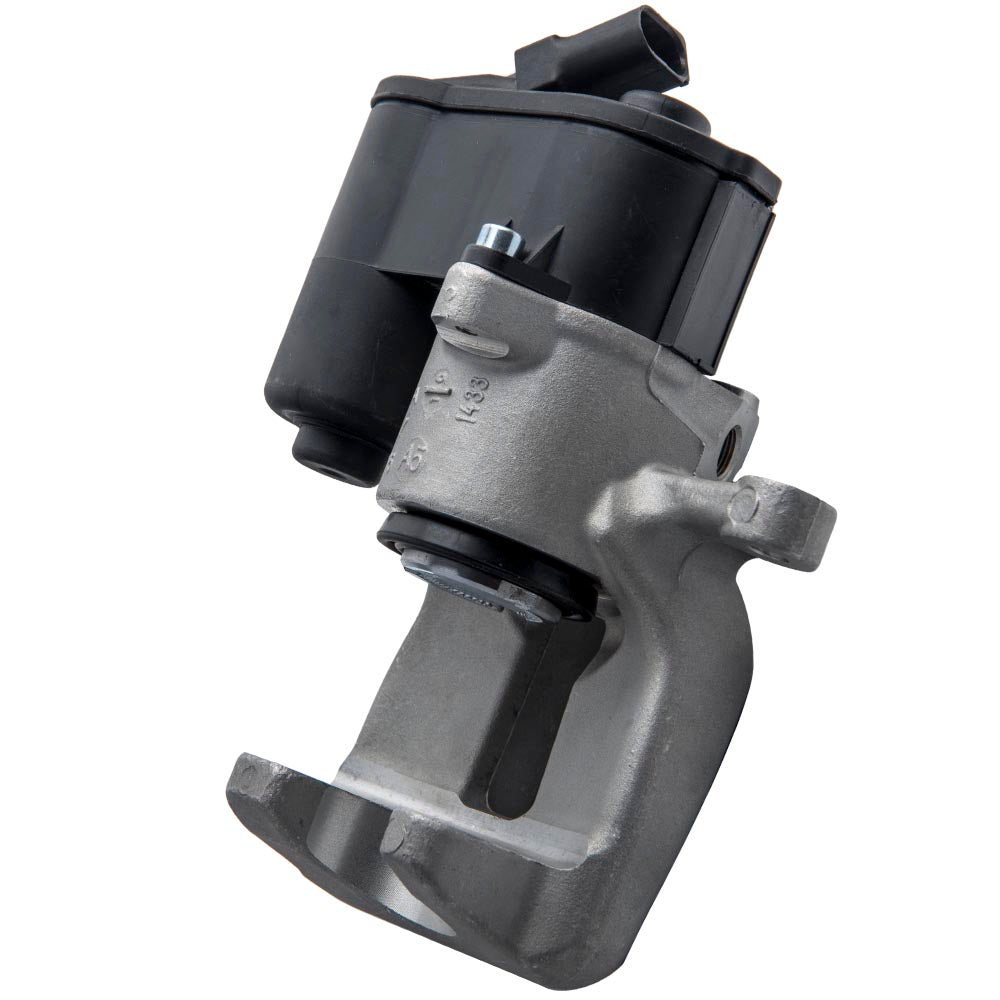

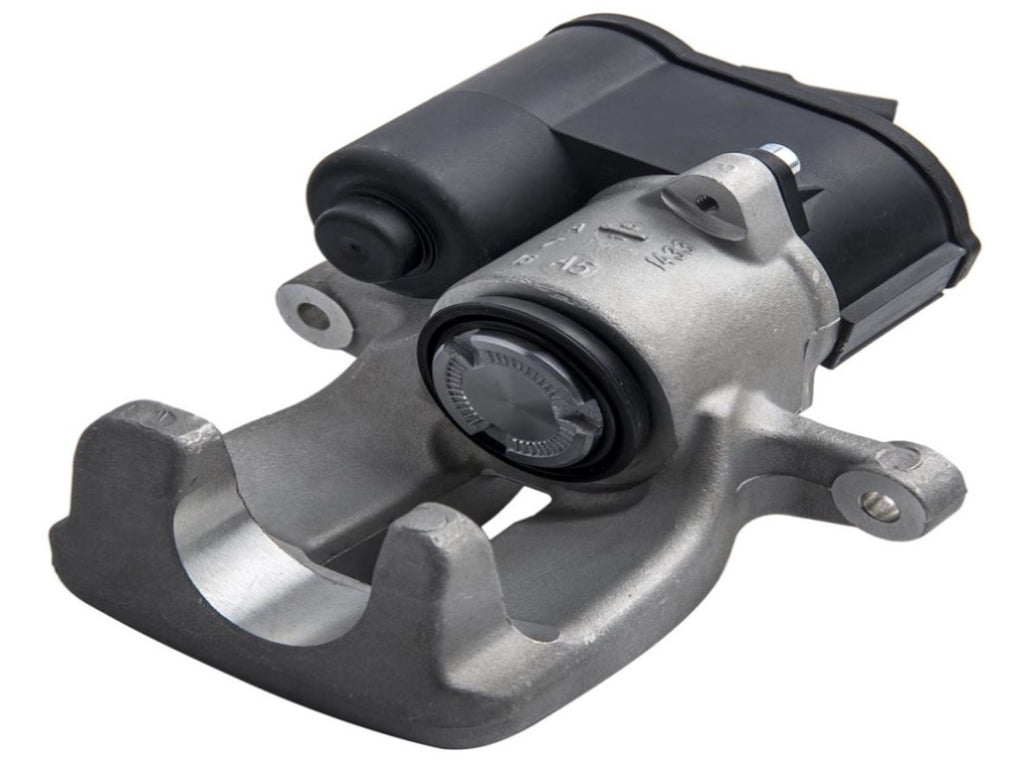

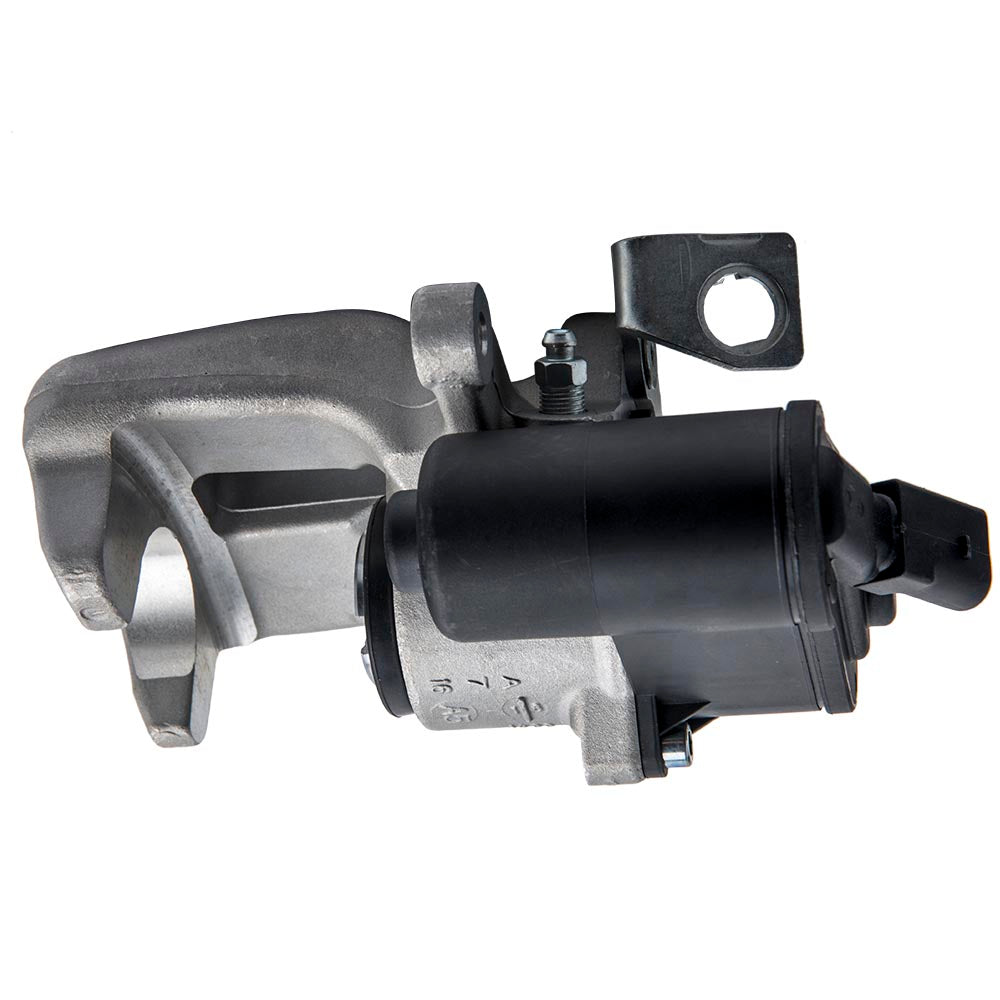

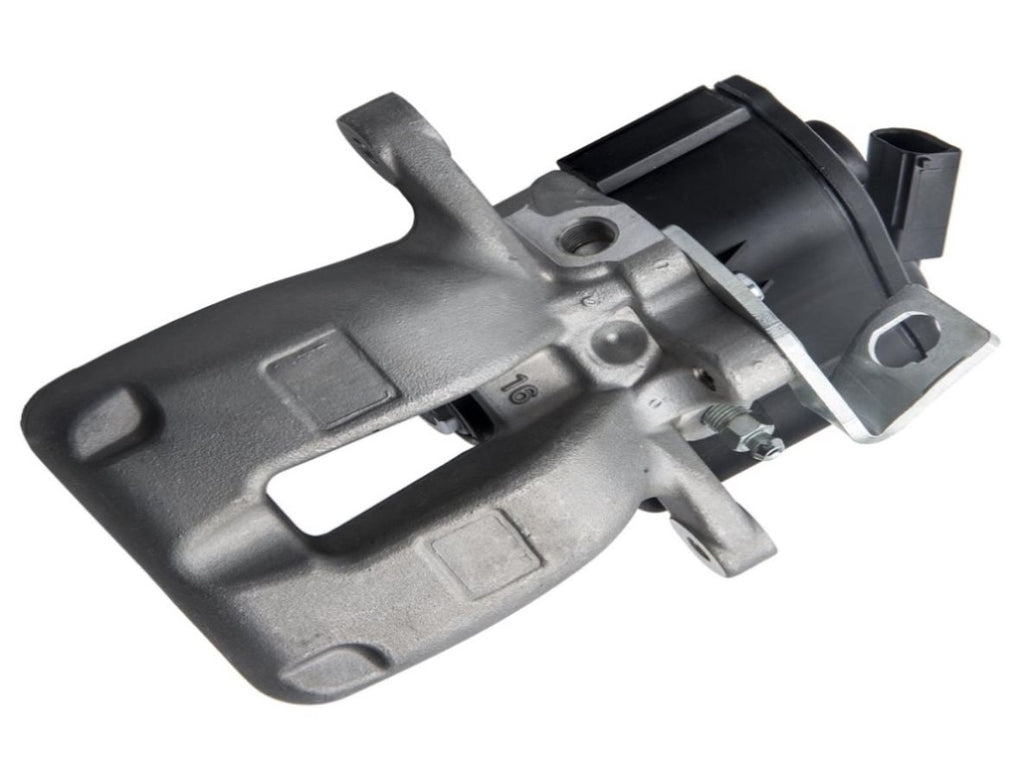

Rear Left Drive Side Electric Brake Caliper fit for VW Passat 3C5 2005-2011 New 10014204

Introduction

(EPB)The driver controls the EPB switch, the motor rotation drives the actuating mechanism to generate the actuating force, and pushes the piston and brake pad assembly to clamp the caliper, forming a clamping force to achieve parking.
The job of the caliper is to slow the car's wheels by creating friction with the rotors. When you step on the brake, brake fluid from the master cylinder creates hydraulic pressure on one  pistons in the brake caliper, forcing the pads against the rotor.

Fit fit for:

OEM number or Interchangeable Part Number:

3C0615403E, 3C0615403G, 3C0615403 ，3C0615403B，3C0615403H，3C0615403C

Specification：

Condition: 100% Brand New，ready to install
Brake caliper design: Fist caliper
Material: Aluminum
Diameter: 38mm
Vehicle equipment: fit for vehicles with parking brake -Only fit for vehicles with electronic parking brake, PR No. 1KU and build year before April 2007 -No bracket -Thread size M12X1
fit for brake disc thickness 12 mm/diameter 282 mm
Distance between fastening bolts 134 mm
Electronic brake caliper motor parameters: 12 teeth

Feature：

1.Significant weight savings compared to mechanical park brake systems to support enhanced fuel economy and reduced emissions   .
2.Hard anodizing process, high hardness and corrosion resistance, smooth and noiseless piston.
3. Caliper and bracket are all processed by CNC machining center, good quality stability.
4.OE quality ,lower price.
5.Production scale and management level is higher than other peers,  more reliable , more stable.
6.Large inventory, timely delivery.
7.Each brake caliper is guaranteed to last 100,000 km.
8.ISO 9001 certification.

Package Includes:

1x Brake Caliper

You will get exactly as shown in the picture above

Note:
* Please confirm your old part number matches up with one of the part numbers above
* Professional installation is highly recommended (ourproduct manual can be used as reference).
* Due to different installed brake systems and to avoid incorrect deliveries, we ask you to send us the 17-digit vehicle identification number (VIN, chassis number) to check the accuracy of fit. Dispatch takes place only after inspection
* fit for any needs please contact us.
* NOT fit for:OE5N0615403， brake disc thickness 12 mm，
   NOT fit for:Brake caliper piston diameter [mm] 41.0 mm，
   NOT fit for:Thread dimension M10X1.5
