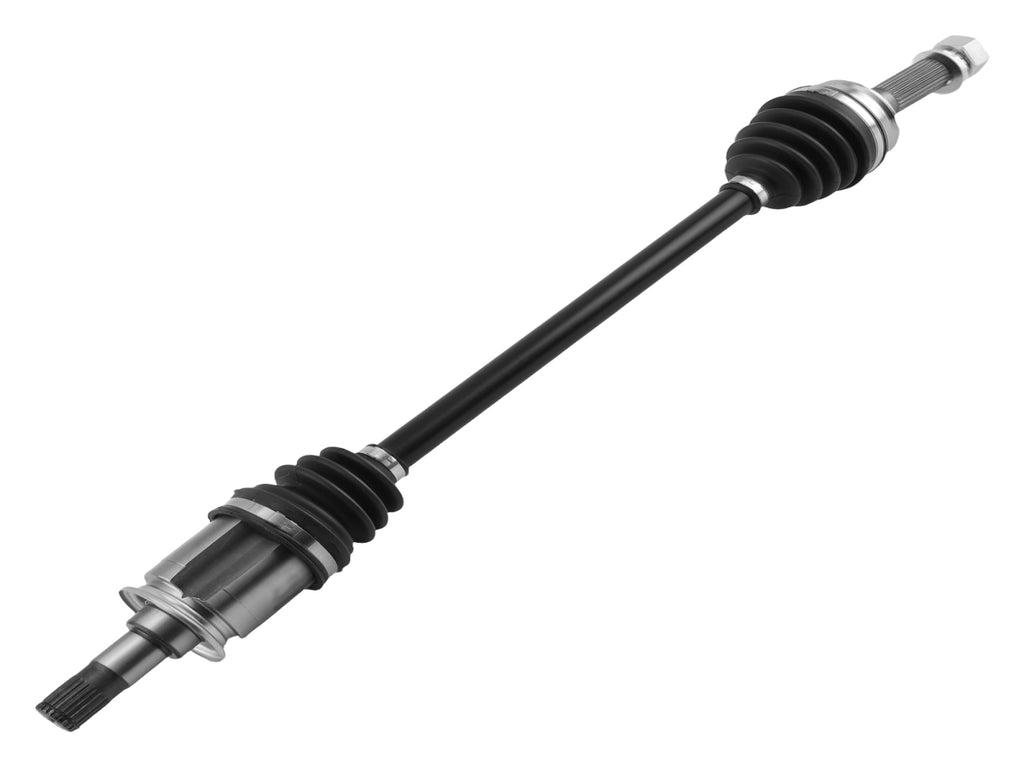

Rear Left Right CV Axle Shafts fit for Jeep Patriot 2007-2017 24525830

Due to the surface heat treatment process, the product color may vary between batches, appearing as black or gray. The product color is shipped randomly and does not affect installation or use.

Function:

CV Axles serve as the final link between the engine and the wheels, transferring power from the vehicle's transmission and differential to the wheels to drive the vehicle forward.And ensure the stability and safety of the car when turning or driving on uneven roads.

Application

fit for Dodge Caliber 2.4L L4 AWD Automatic CVT Trans  Rear Side2007-2008，
fit for Jeep Compass 2.0L L4 4WD Rear Side 2007-2017，
fit for Jeep Compass 2.4L L4 4WD Rear Side 2007-2017，
fit for Jeep Patriot 2.0L L4 4WD Rear Side 2007-2017，
fit for Jeep Patriot 2.4L L4 4WD Rear Side 2007-2017，
Note-1: fit for Dodge Caliber fit AWD(All-Wheel Drive) only, not fit FWD(Front-Wheel Drive)
Note-2: fit for Jeep Compass & Patriot fit 4WD(Four Wheel Drive) only, not fit FWD(Front-Wheel Drive) or AWD(All-Wheel Drive).

OE/Part number

5085141AB,663598,66-3598,60-3598,603598,66-3599,

60-3599,5085240AA,5085240AB,5085240AC,663599,603599,NCV12600

Specification

Condition:New
Type:CV Axle Assembly
Color：Black
Placement on Vehicle：Rear Left,Right
Surface Finish:Black Coating
Input Shaft Connection Style: Bolt-On
Output Shaft Connection Style:Splined
Output Shaft Spline Count:25 Teeth
Input Shaft Spline Count:23 Teeth
Compressed Length (IN): 29.252 in(Left), 32.283 in(Right)

Package included

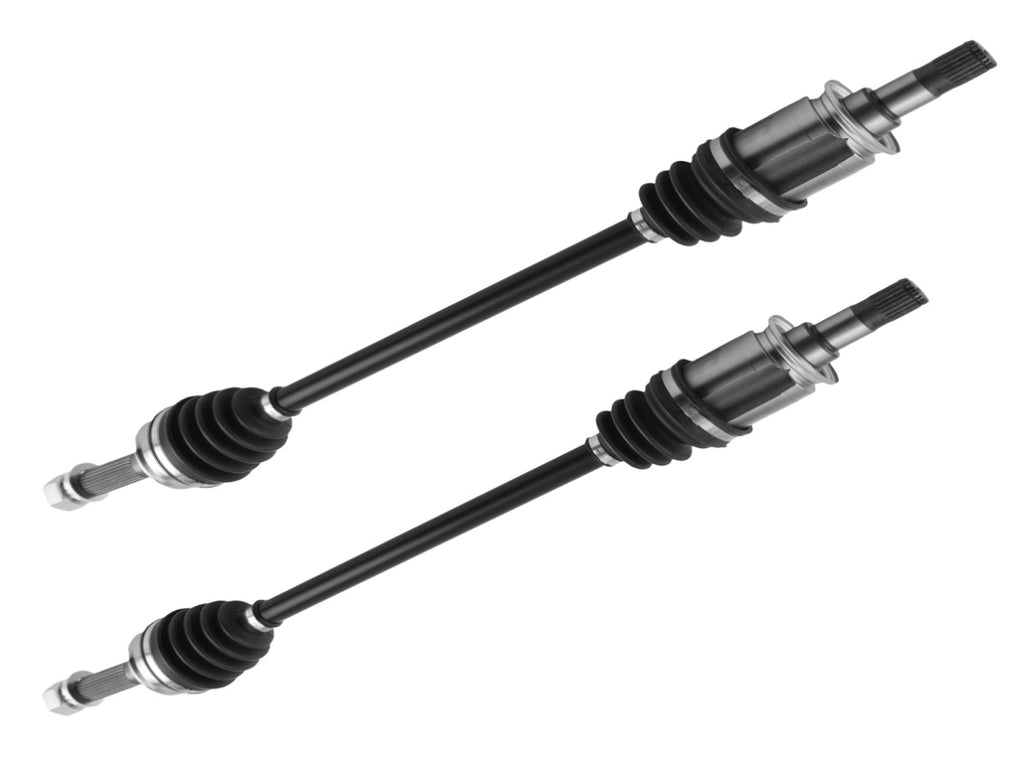

       2Pcs CV Axle Assemblies (Rear Left+Right)

Feature

1.Unparalleled Performance:precision Machining,professional heat-treating,high-performance Neoprene Material can resist to grease and extremes of temperature and superior flexibility minimizing wear and tear.It realizes excellent durability and longevity．

2.Durable structural design：Steel 55 Ball Cage,Constant Velocity,Smooth Transmission.

3.Safe and Pleasing Experience: CV Joint Axle improve stability and comfort fit for driving.

4.Direct Replacement:Complete set CV alxe assembly easy to install.

5.Superior Package Design：With good cushioning and isolation performance, effectively protect products from damage, environmentally friendly and recyclable.

Note

*Please confirm your vehicle condition and OE number before placing an order!
*Please note that this is an after-sales part, not an original part.
*We suggest that you seek professional installation to avoid unnecessary trouble.
*If you have any questions, please contact us.
