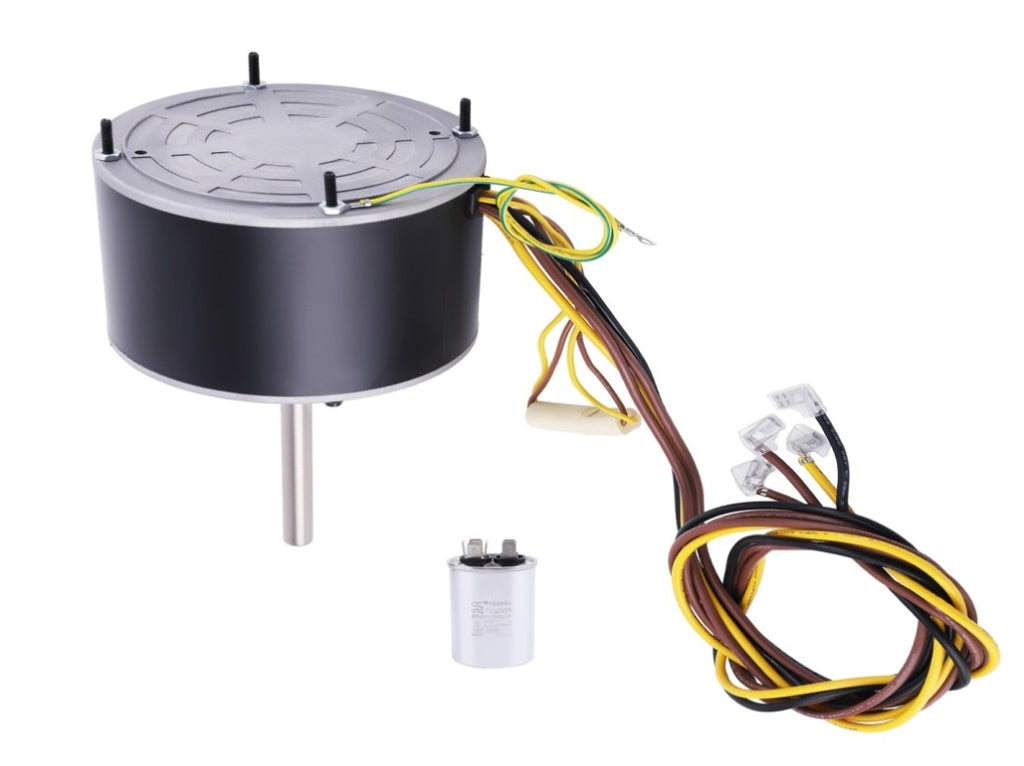

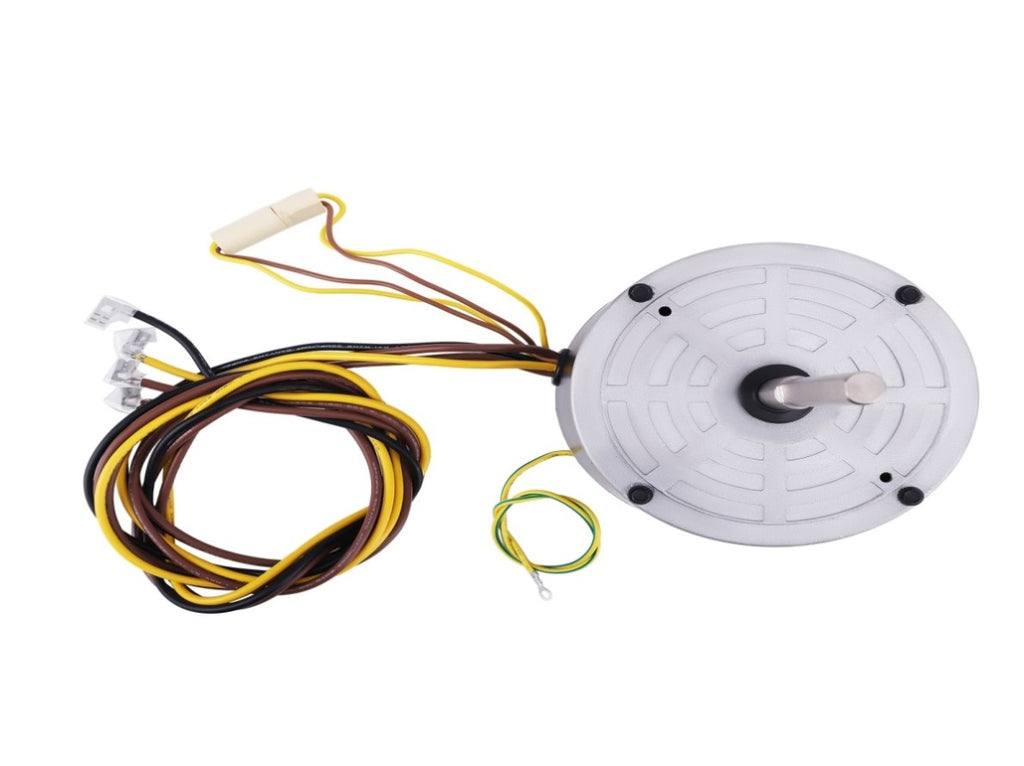

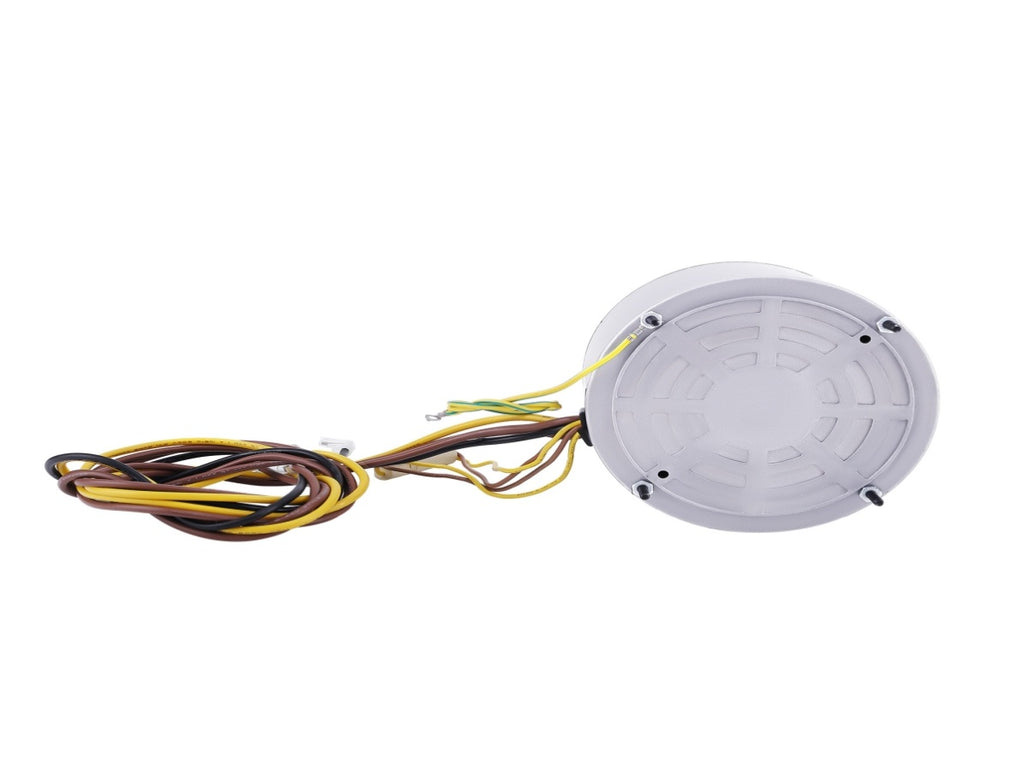

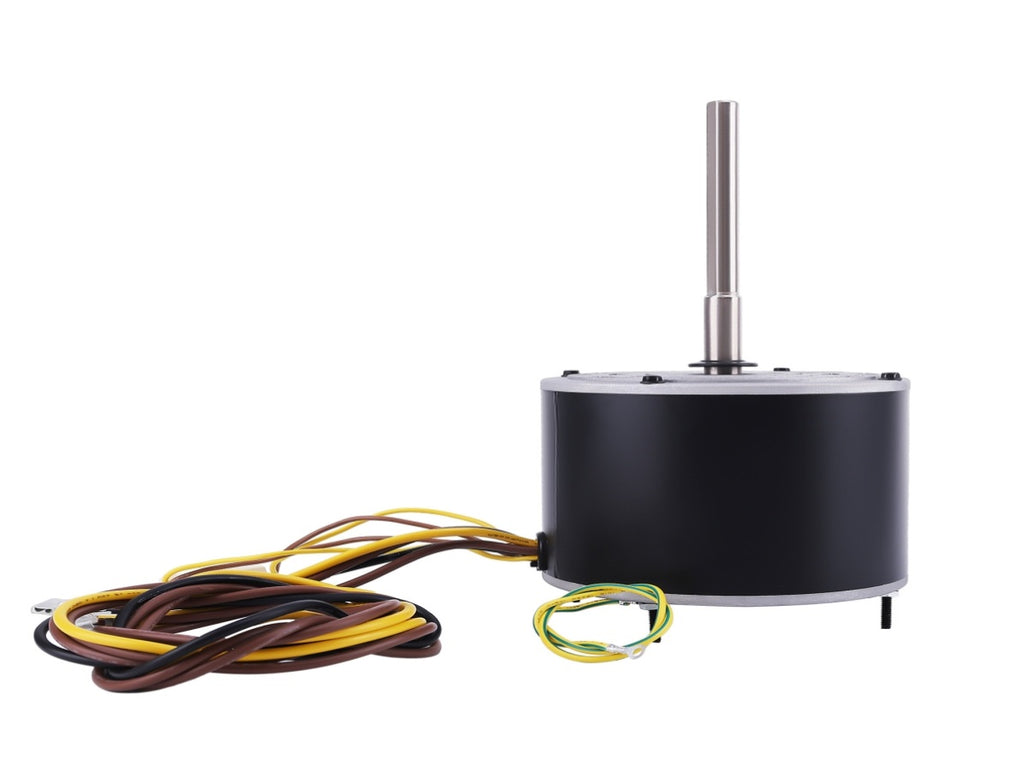

Reversible Condenser Fan Motor 1/4 HP 208-230V 1075 RPM W51-14CJA1-02 US 55177038

Application:

fit for 1/4HP, 208/230V Condenser Fan Motor, 1075RPM Replacement Condenser Fan Motor Reversible Rotating Condenser Fan Motor

Part Number:

W51-14CJA1-02

Specification:

1/4HP condenser fan motor
Overall motor length: 9-5/16 inch
Overall shaft length: 5 inch
Shaft diameter: 1/2 inch
Run capacitor: 10/370 uF/V
Input voltage: 208-230V /1.4 amps 1075（rpm）high speed

Package included:

1× capacitor

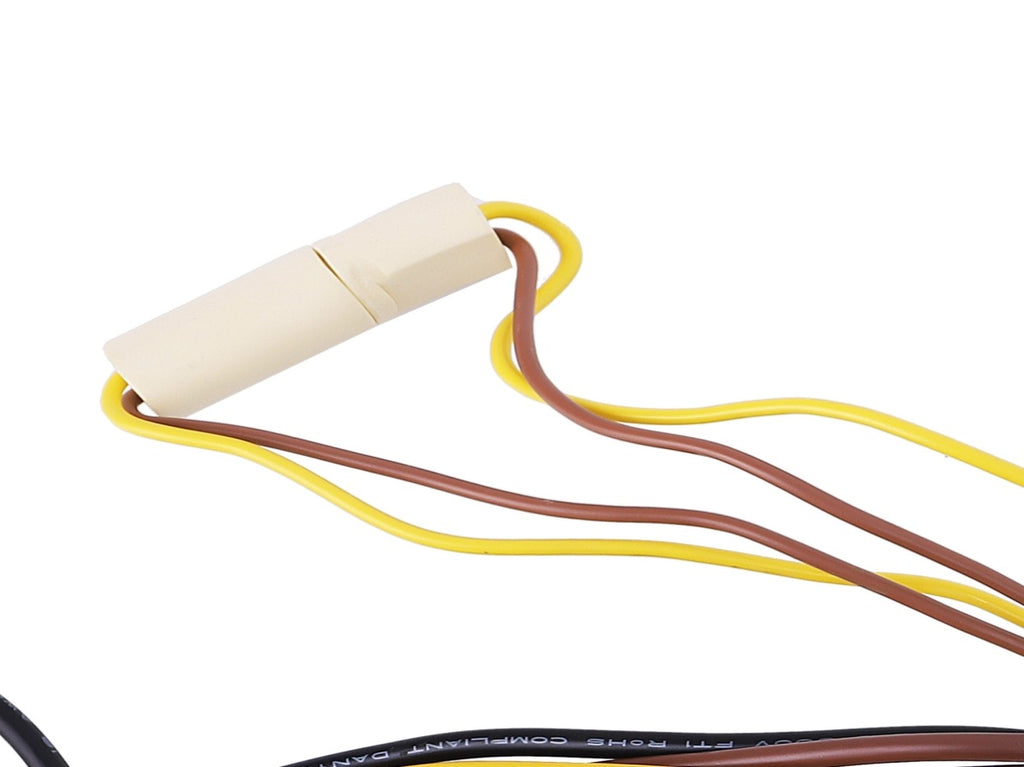

1× connecting wires

Feature:

The Condensing Motor is designed to be used in HVAC systems to cool the condenser coil. The condenser coil is responsible fit for removing heat from the refrigerant, which is then used to cool the air in the home. The condenser fan motor helps to circulate air over the condenser coil, which helps to improve the efficiency of the cooling system.

Note:

Please refer to the specifications of your previous machine before purchasing to make sure it matches the H/P you need.
