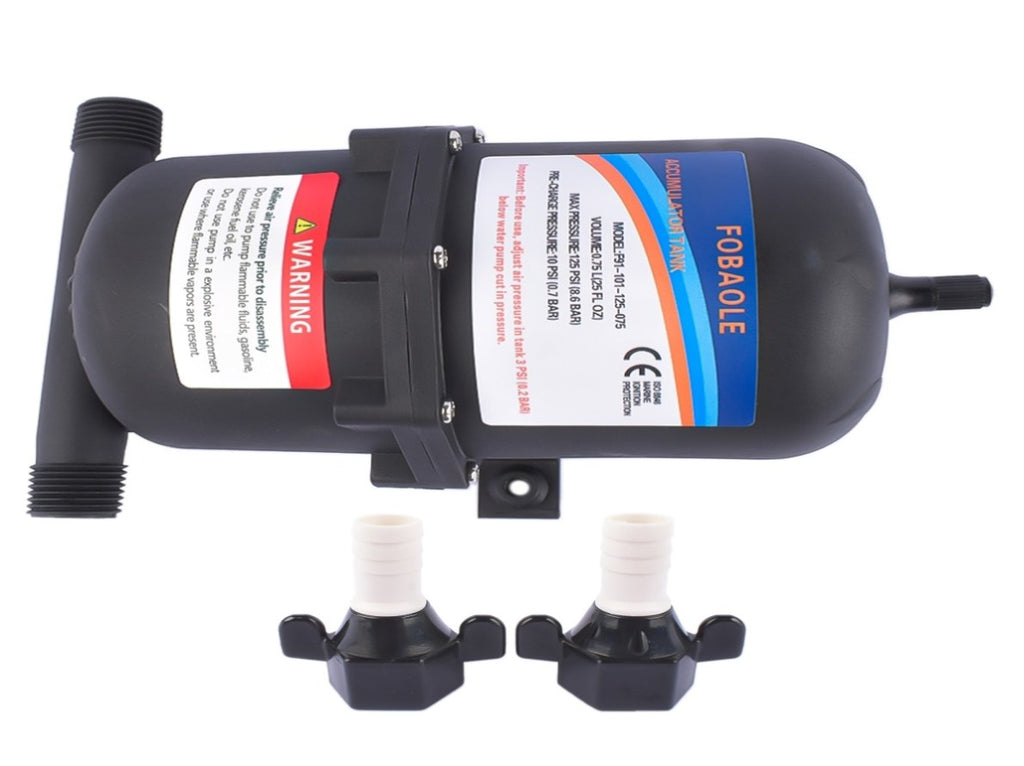

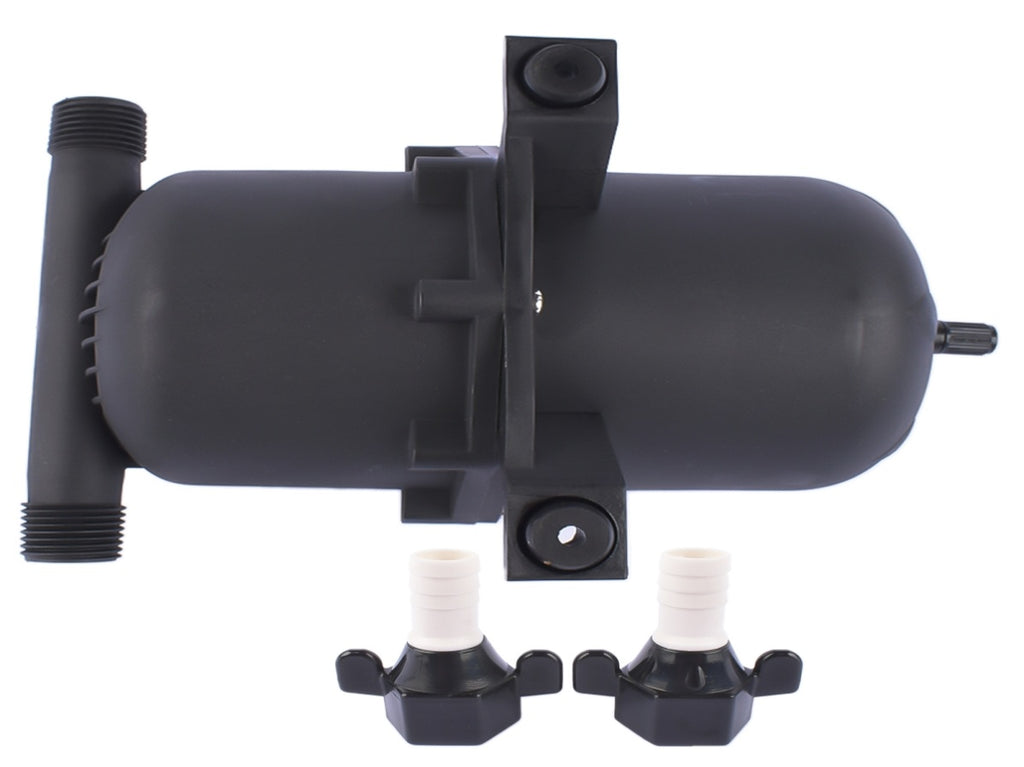

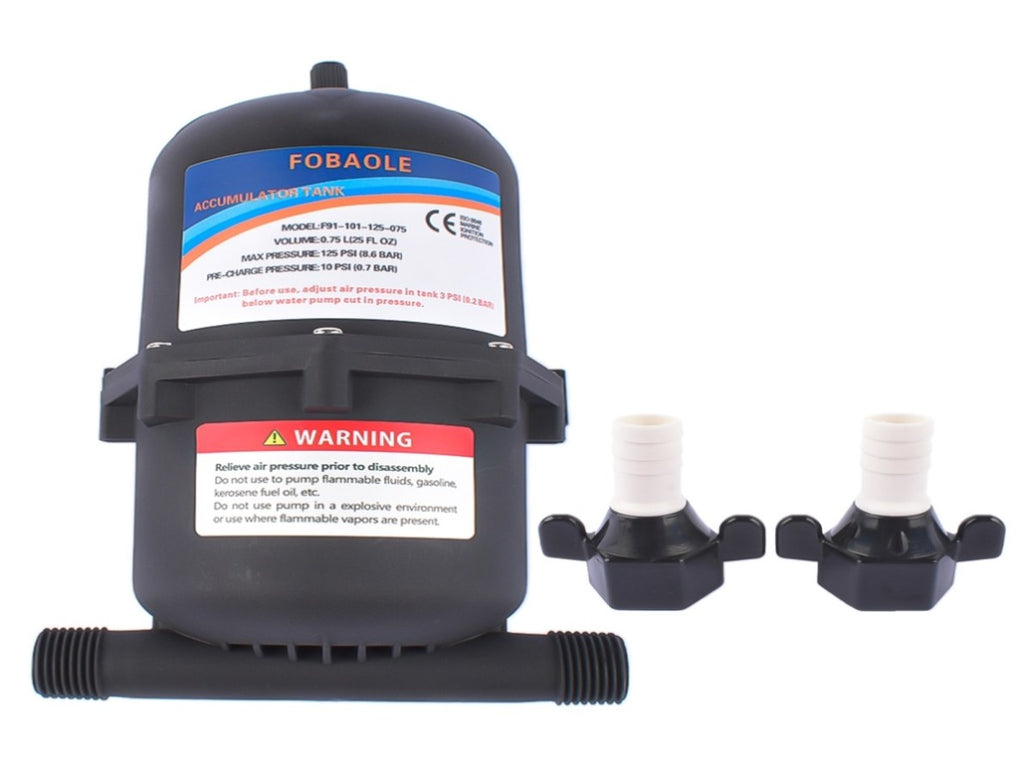

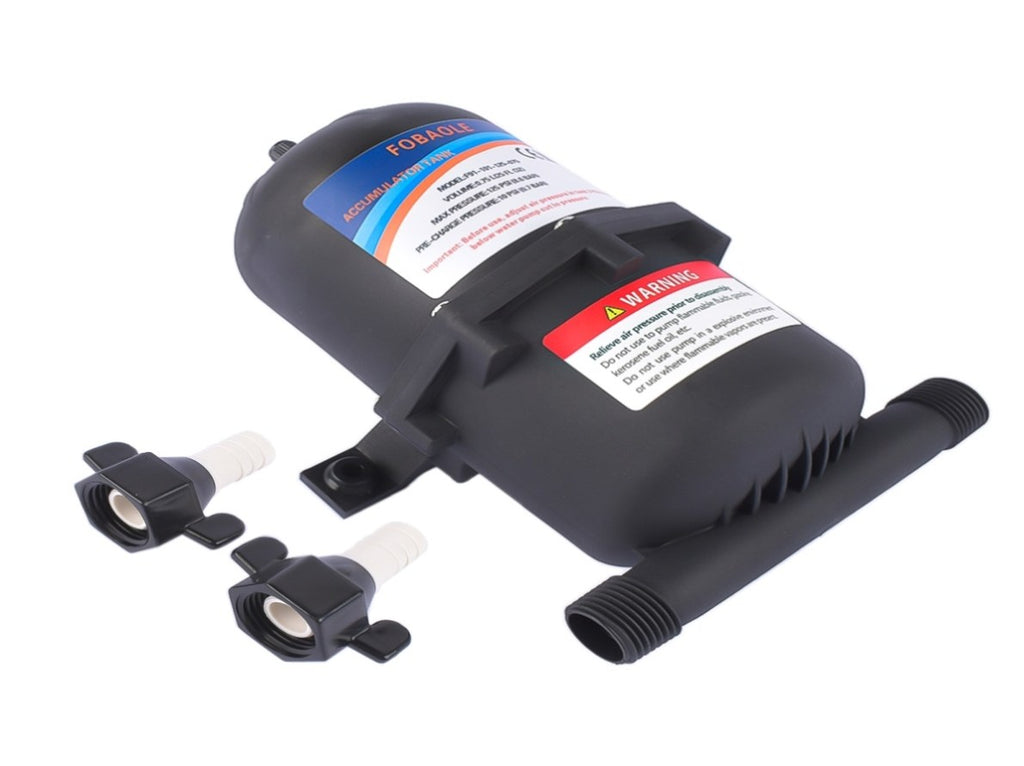

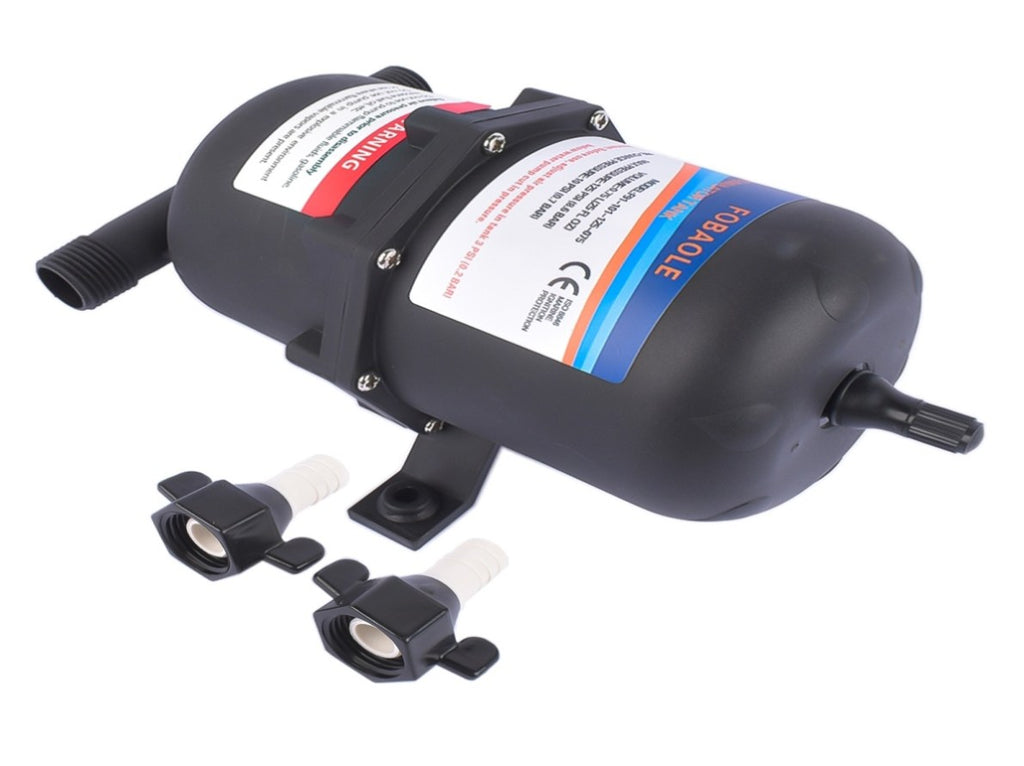

RV Accumulator Tank w/Barbed Fitting Water Pressure Vacuum Tank Internal Bladder 125 psi 0.75L 92773405

Description:

The accumulator tank holds a reservoir of air and water down stream from the pump. The air acts as a cushion, absorbing pressure variations creating a smoother flow and reducing the cycling of the pump,especially at lower flows.

Low power consumption, no noise during use, avoiding frequent opening of the safety valve and frequent refilling of the automatic water replenishment valve.

Features:

Internal Bladder

Smoother flow

Reduces on/off switch cycling

Quieter water system

Long pump life

Easily fitted to new or existing systems

Compact size

1/2" MNPT port fittings

Mounting point for optional pressure switch

Specifications:

Condition: 100% Brand New

Type: Water Accumulator Tank

OE Number: 182-200, 182200

Internal volume: 0.75L

Pre-charged pressure: 10 PSI

Max operating pressure: 125 PSI

Inlet/outlet diameter: 1/2" MNPT

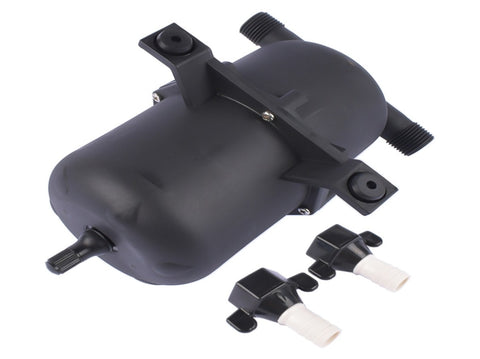

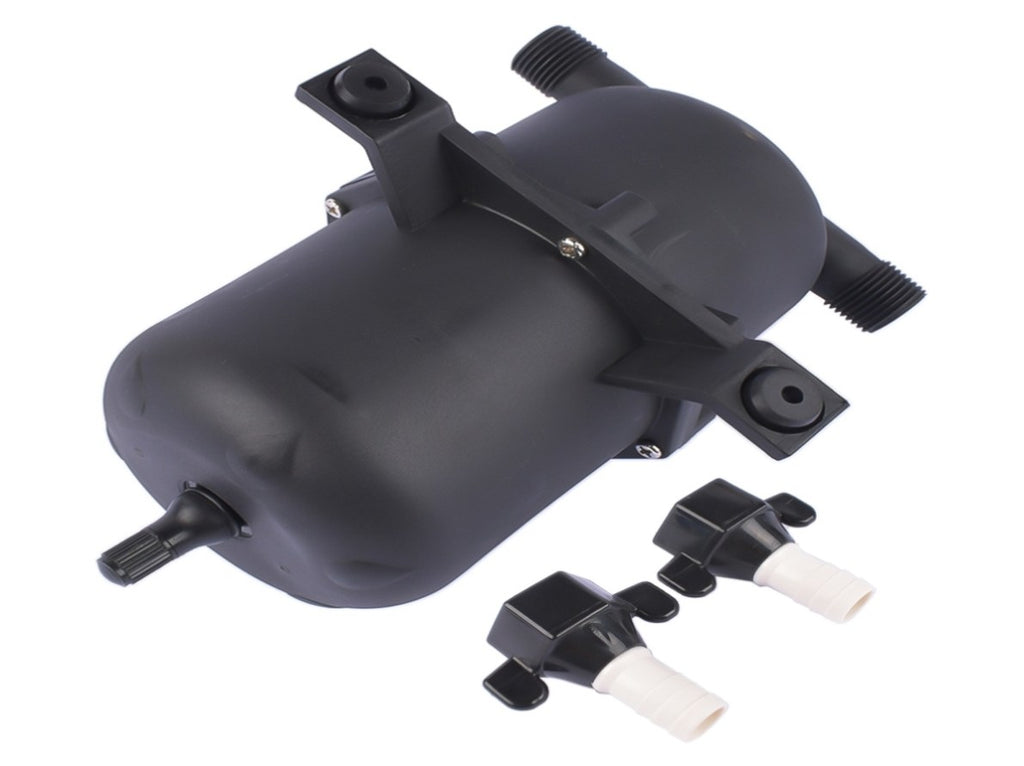

Comes with (2) 1/2" barbed fittings

Approvals: CE

Package Includes:

1x Accumulator

2x Connector

Applications:

-Yacht/RV/caravan pressurized water system

-Sprayer fixtures (vehicle-mounted and electric sprayer)

-Clean machine, humidifier, water purification and medical apparatus

-Food beverage filling and liquid transfer

-Any other pressurization system

Note:

1. Relieve air pressure prior to disassembly

2. Do not use to pump flammable fluids, gasoline, kerosene fuel oil, ect.

3. Do not use pump in a explosive environment or use where flammable vapors are present

4. Do not use to pump gasoline, Petrol or fluids with flash point below 37°C(98°F), explosion or death may occur.

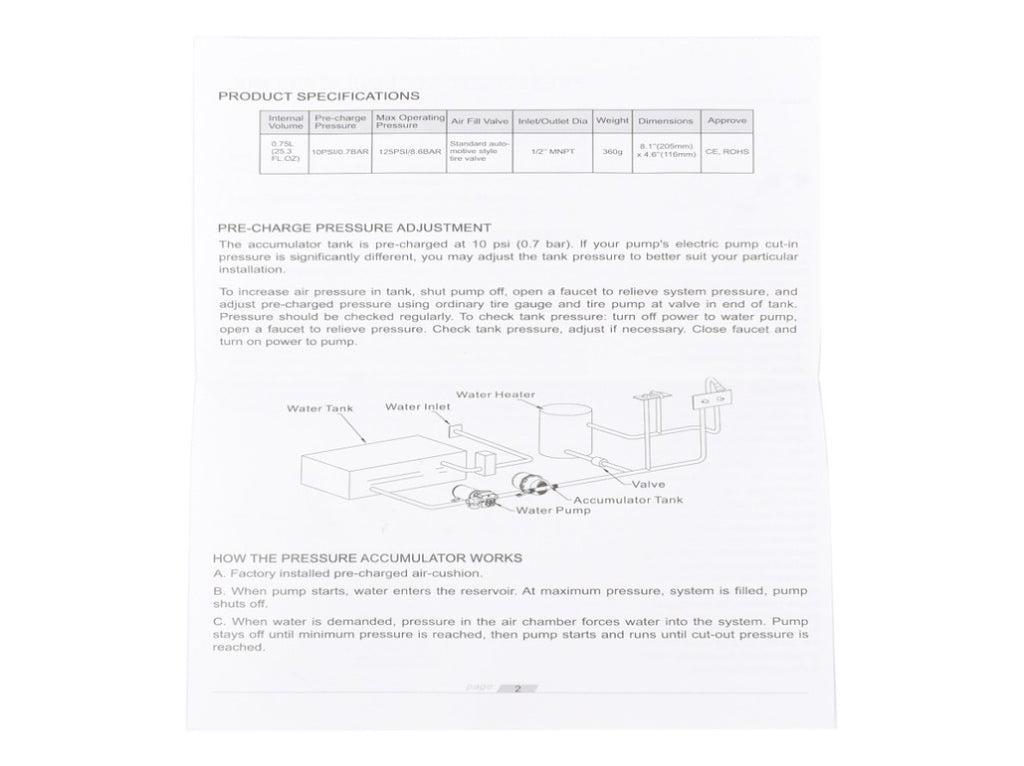

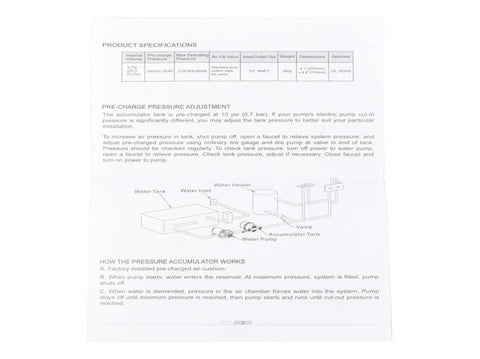

5. The accumulator tank comes pre-pressurized at 10 PSI. Before Using Adjust air  pressure in tank 3 PSI(0.2 bar) below water pump switch cut in pressure.

6. Do not over pressurize tank. Pressures over 125PSI(8.6BAR) may rupture tank and cause personal injury.
