Street Billet Turbo fit for Audi A4 Turbo Charger A5 2.0 TFSI CAEB CAEA 2009 -16 60150157
Please confirm your original turbo part number before purchasing. The part number is located on the turbo NAMEPLATE of the compressor housing, you can check it with your mechanic as well.
Applications:
fit for Audi A4, A4 Avant, fit for A4 Quattro Avant 2.0 TFSI 2009-2016
fit for Audi A5 Coupe, A5 SportBack 2.0 TFSI 2008-2016
fit for Audi A5 Cabriolet 2.0 TFSI 2009-2016
fit for Audi Q5 2.0L, S4 Avant, S5 Coupe, S5 Sport Back 2.0 TFSI 2009-2017
fit for Audi A4, A5, A6, S4, S5 2.0 TFSI 2008-2016
fit for Volkswagen Passat 2.0 TSI 2008-2015
fit for Seat Exeo 2.0 TSI 2008-2015
fit for Audi A4 2.0p 180-211bhp 2008-2016 CAEA, CDNB, CDNC, CFKA, 8K2, 8K5, 8KH, B8, TFSI, fit for Quattro, Allroad
fit for Audi A5 2.0p 180-211bhp 2009-2016 CAEA , CAEB, CDNB, CDNC, 8F7, 8T3, 8TA, TFSI, fit for Quattro
fit for Audi Q5 2.0p 180-211bhp 2009-2017 CDNB, CDNC, 8R, TFSI,fit for Quattro
fit for Seat Exeo 2.0p 211bhp 2008-2015 CDND, 3R2, 3R5, TFSI
Part Number & OEM Number:
06H145702L , 06H 145 702 L , 06H 145 702L, 06H145702LV ,
06H145702LX, 06H145702S , 06H 145 702 S , 06H 145 702S,
06H145702SV , 06H145702SX, 06H145702G , 06H 145 702 G ,
06H 145 702G , 06H145702GV , 06H145702GX, 06H145702Q ,
06H 145 702 Q , 06H 145 702Q , 06H145702QV , 06H145702QX,
06H145702R , 06H 145 702 R , 06H 145 702R , 06H145702RV ,
06H145702RX, 06H145701Q , 06H 145 701 Q , 06H 145 701Q ,
06H145702T , 06H145702TV, 06H145702TX, 5303-988-0291,
53039700291, 5303-970-0291 , 53039880291
Features:
1. Turbine Housing: Silicon-Molybdenum alloy steel - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.
2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown fit for smooth reliable operation.
3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.
Specification:
Turbo Model: RHF5Engine Code:CDNB, CDNC, CAEA, CAEB, CFKA, TFSI
Cooling Type:Water Cooled
Bearing Type: Floating Bearing
Trust Bearing:360 degree
Hosepower: 155KW/ 211 PS
Turbo Type: Individual
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New

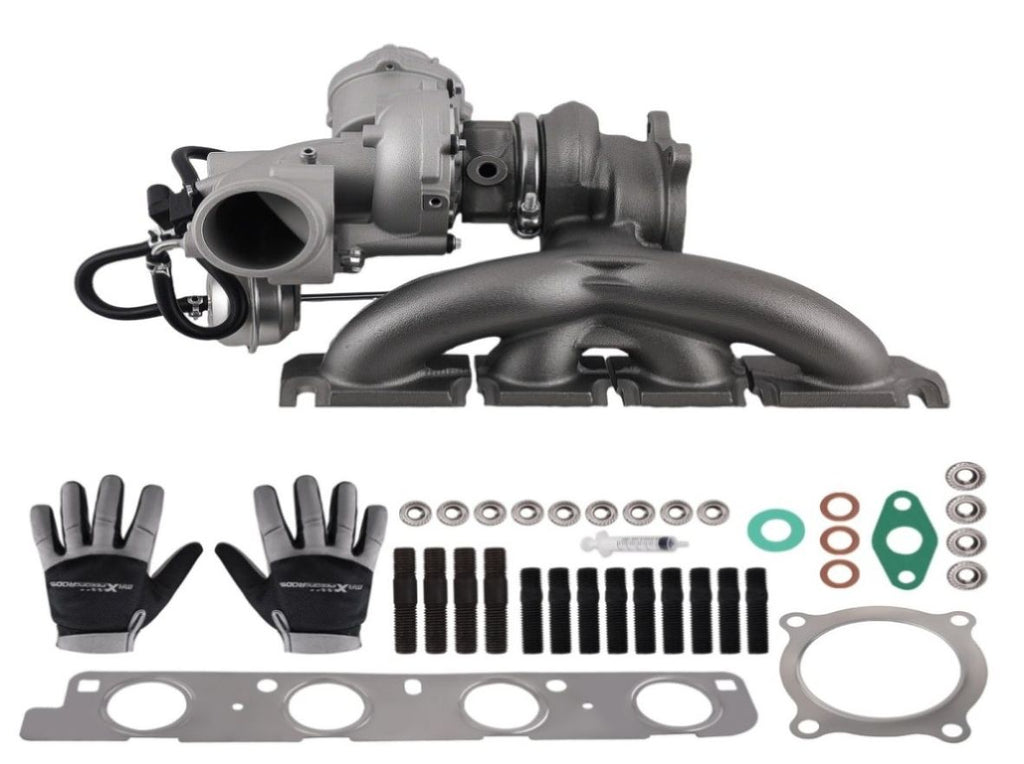

Accessories: You will get exactly as shown in the picture above
Package Size: 49 x 38 x 26 cm
Package Weight: 12850g
Note:
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
