Suspension Front Traction Control Arm Tie Bar Kit fit for Honda Civic 1992-1995 75886199

Traction Control Tie Bar Kit fit for Honda Civic 92-95 Acura Integra 94-01

Application:

fit for Honda Civic 1992-1995
fit for Honda Civic 1996-2000
fit for Honda Del Sol 1993-1997
fit for Acura Integra 1994-2001

Specifications:

Color: Silver

Material: Steel

Adjustable tie bar fit for easy installation

Tie Bar Length Range: 480-550mm

Weight: 9100g

Package dimension: 93*23*11cm

Warranty: 2 year warranty

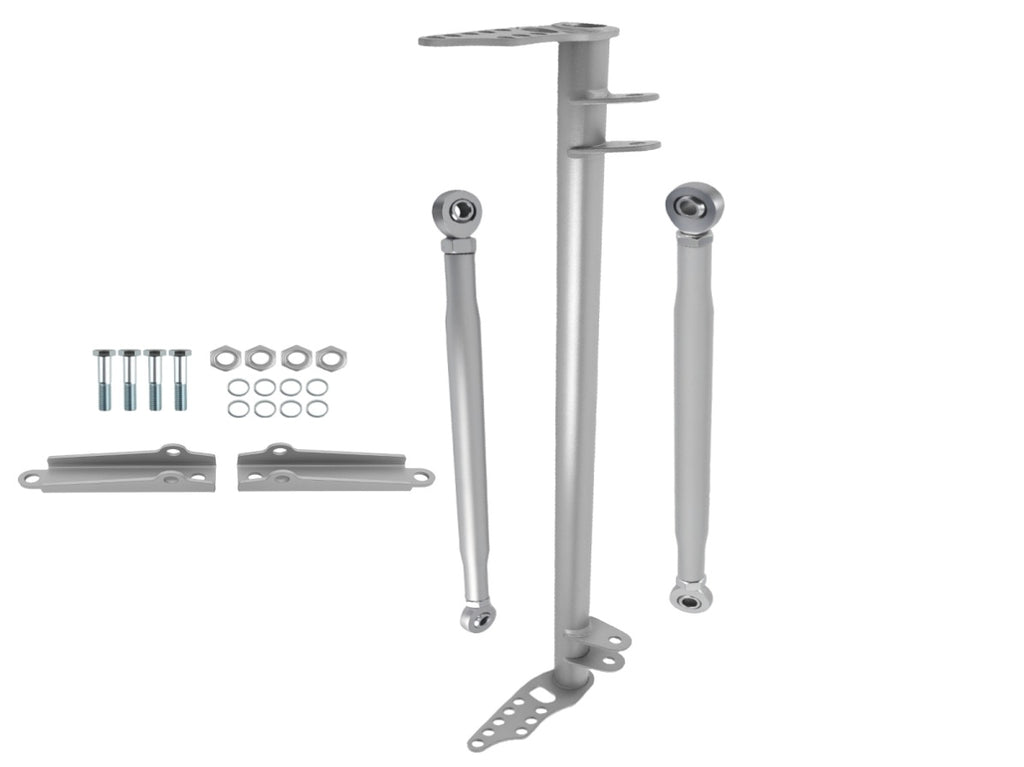

Package Includes:

1* Traction bar

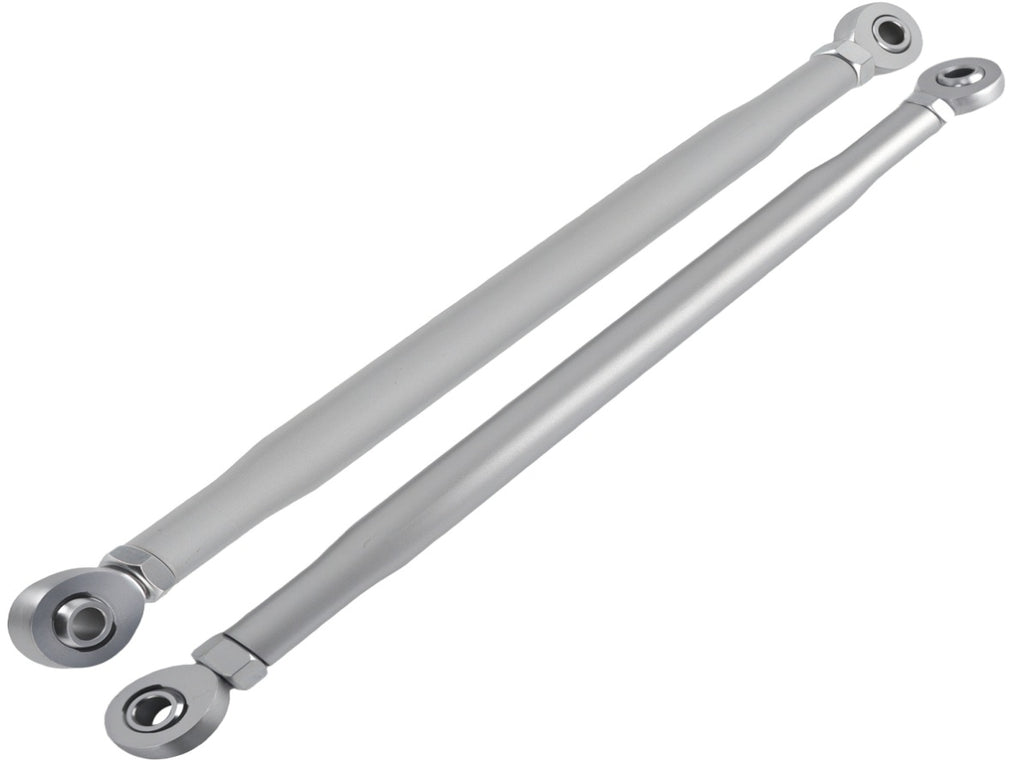

2* Tie bars

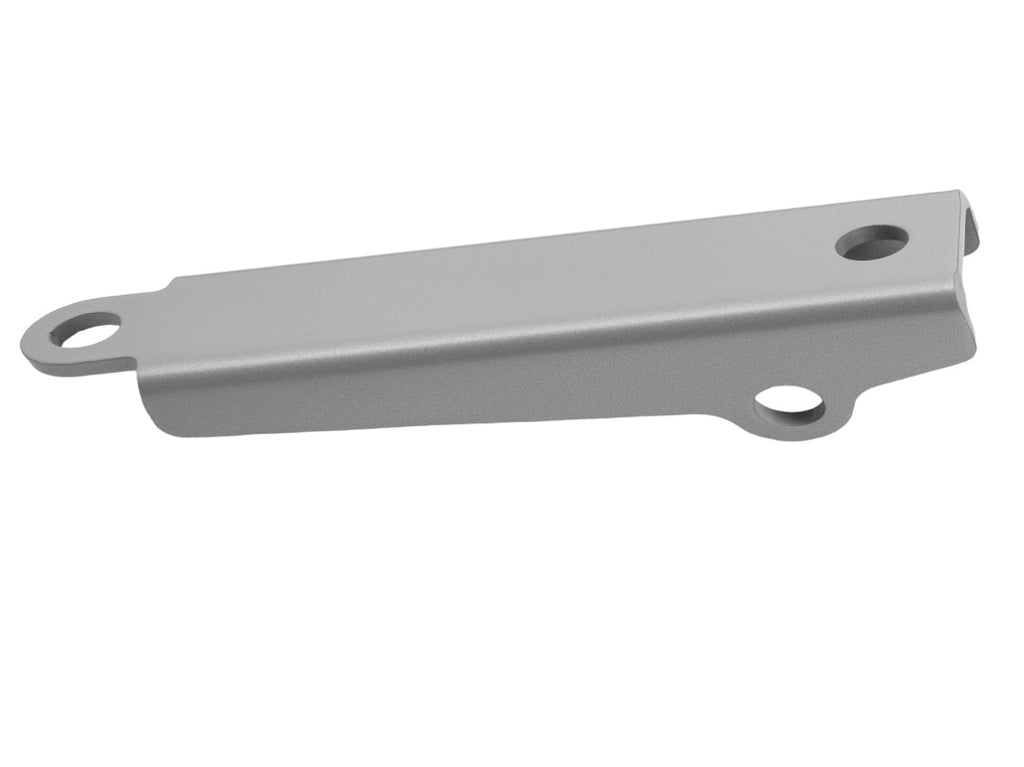

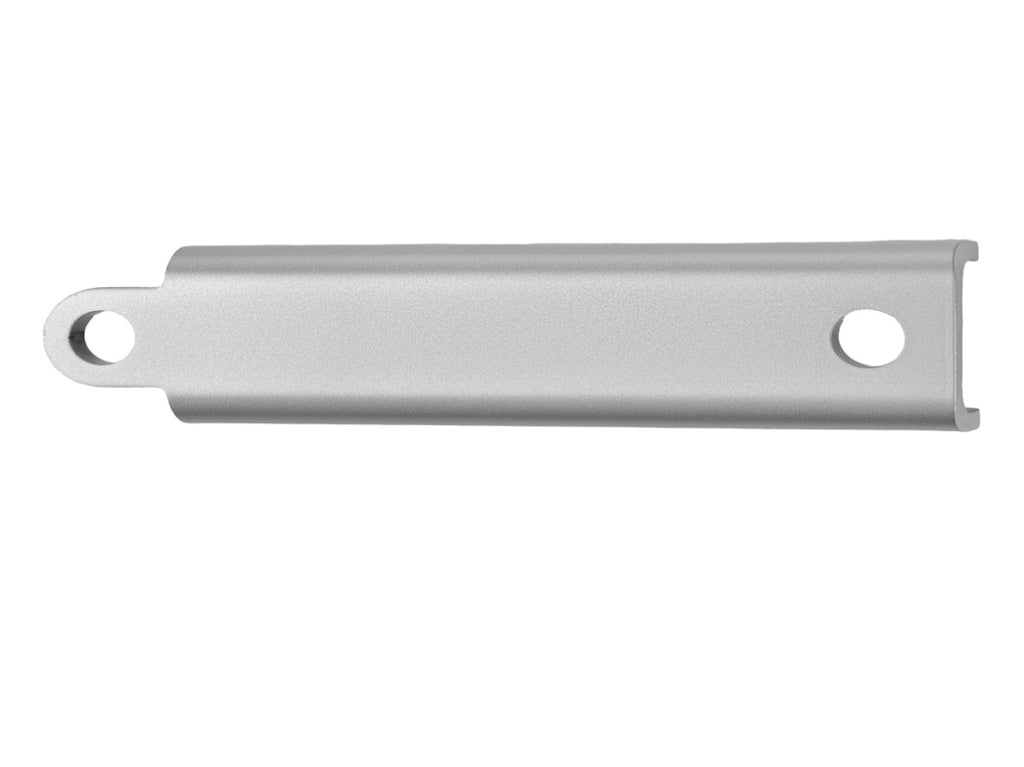

2*Heim joint brackets

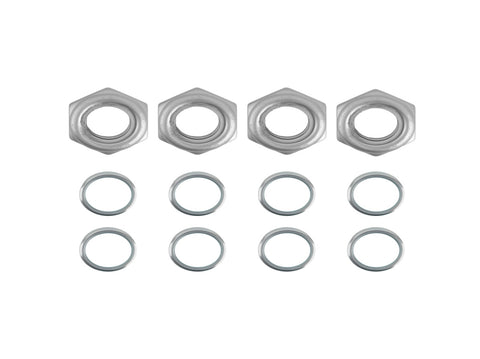

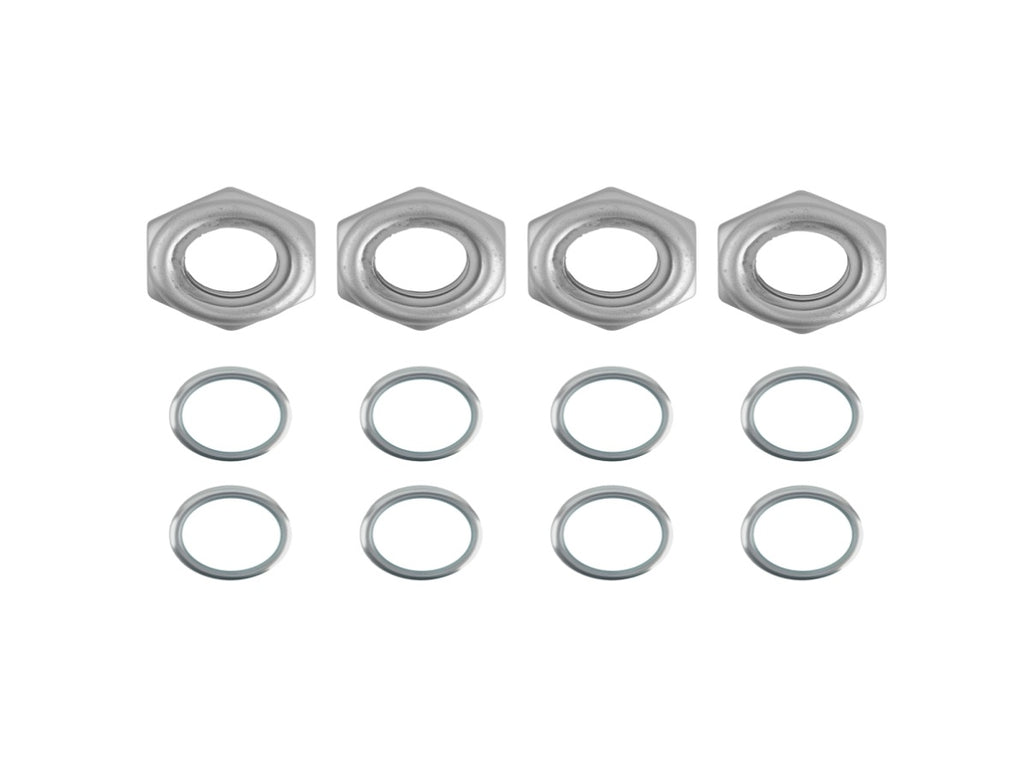

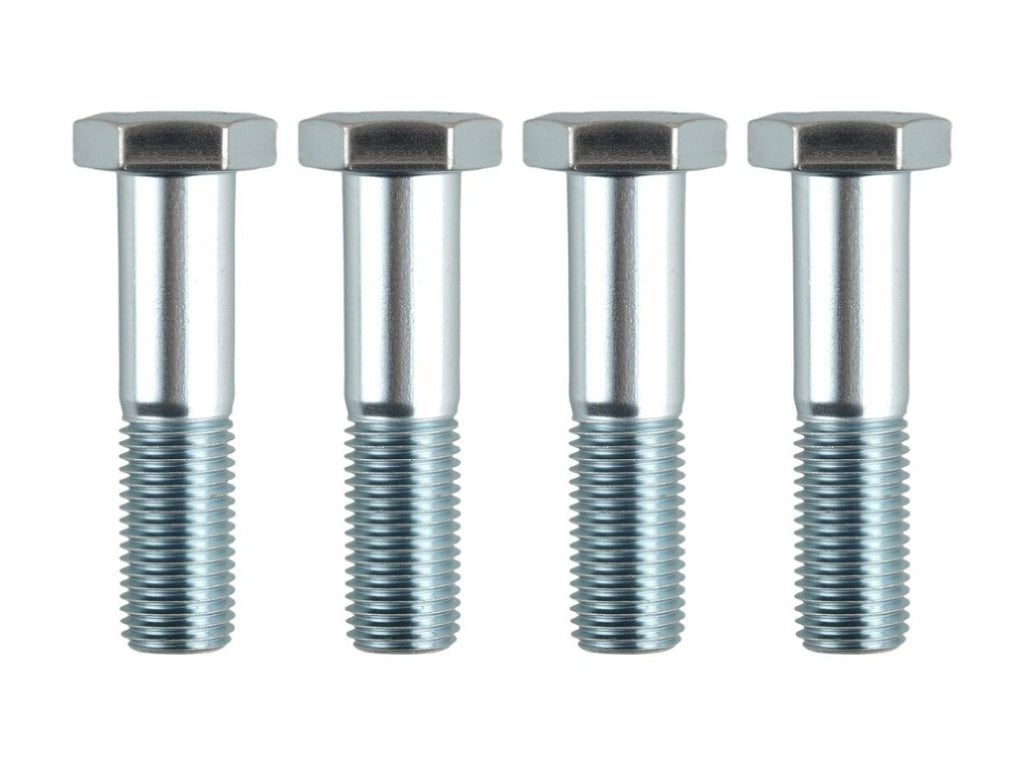

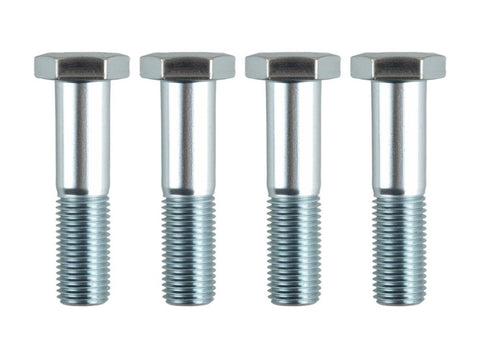

hardware

Description:

• 100% brand new in box
• Made of T-304 light weight stainless steel.
• Quality Finish to proof rust and corrossion
• Increase traction to ground.
• Prevent spring windup during breaking.
• Easy to fit, direct bolt on.

Installation steps:

1. Remove the old crossmember
2. Remove both front tow hooks.
3. Mount the Traction bar without the radius arms.
4. Install radius arms.
5. loosen up the nut on the heims and adjust length until the holes line up to the top of the front lower control arm(be sure to count the threads on the heims to make sure both side is equal length)
6. Tighten up all bolts and make sure to not forget the nut on the heims.

Note:

* Please feel free to contact us fit for whatever we can help via eBay message.

* Instruction is not included. Professional installation is highly recommended.
