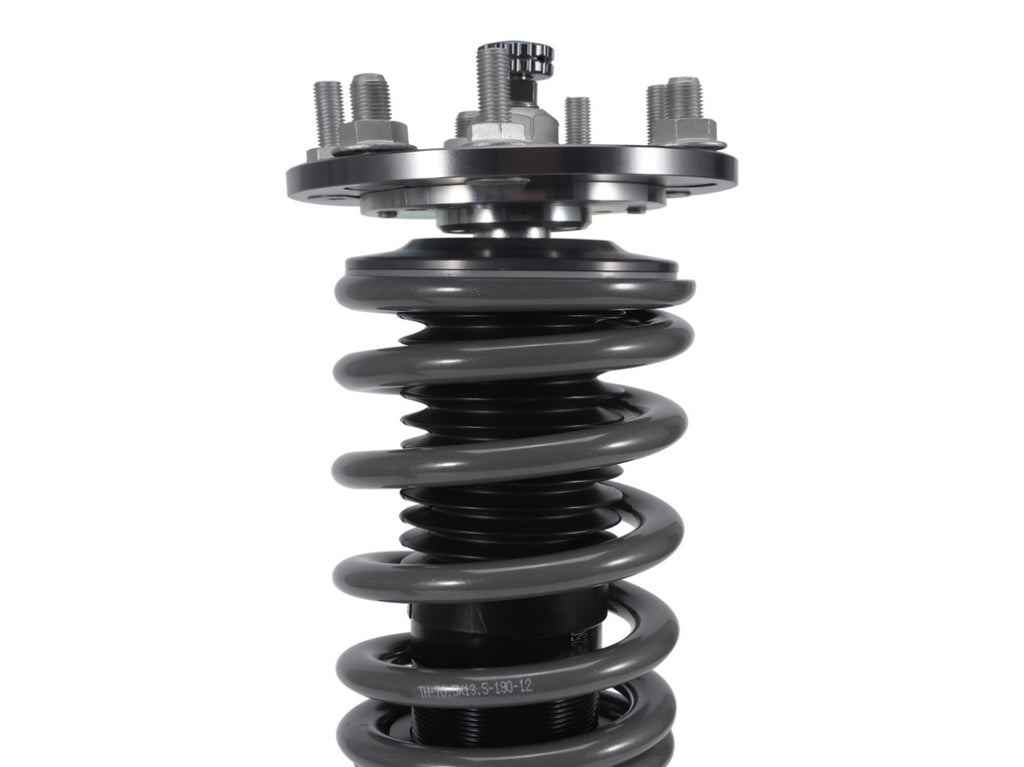

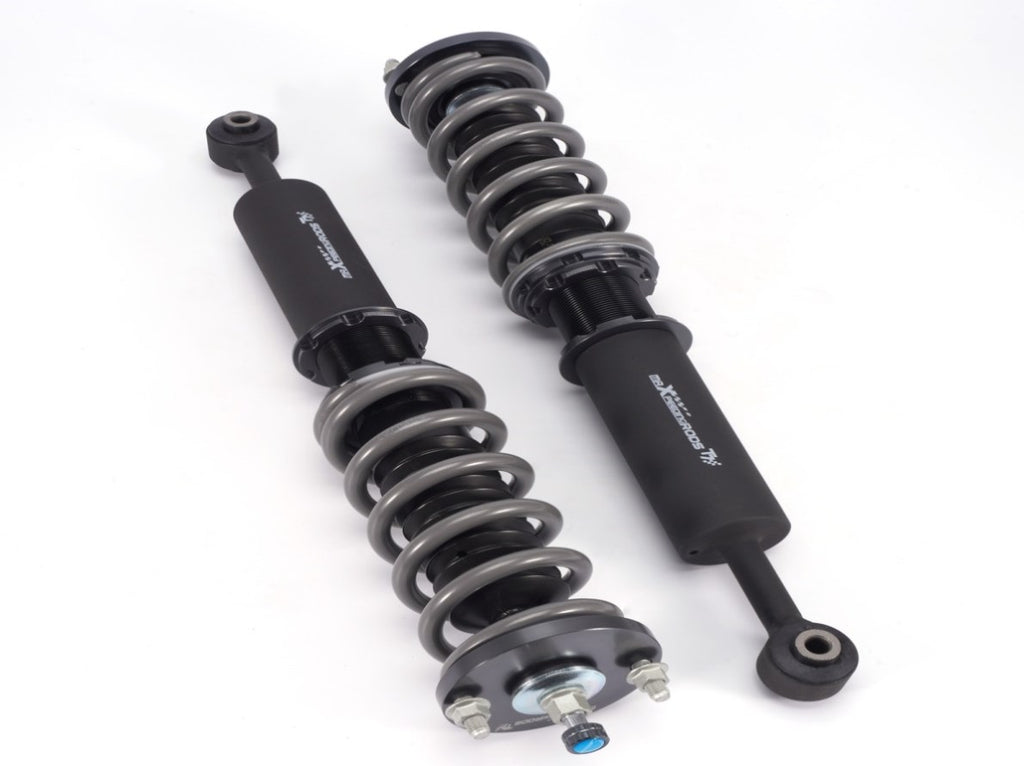

T7 Coilovers Suspension Kit Fit for Acura TL & Type S 2004-2008 FWD 82043086

Application

Fit For Honda Accord VII 4-door sedan CM4/CM5/CM6 2003-2007

Fit For Honda Accord VII 2-door coupe CM7/CM8 2003-2007

Fit For Honda Inspire 2003-2007 (Japan market only)

Fit For Honda Acura TL/TL Type-S 2004-2008

Specification

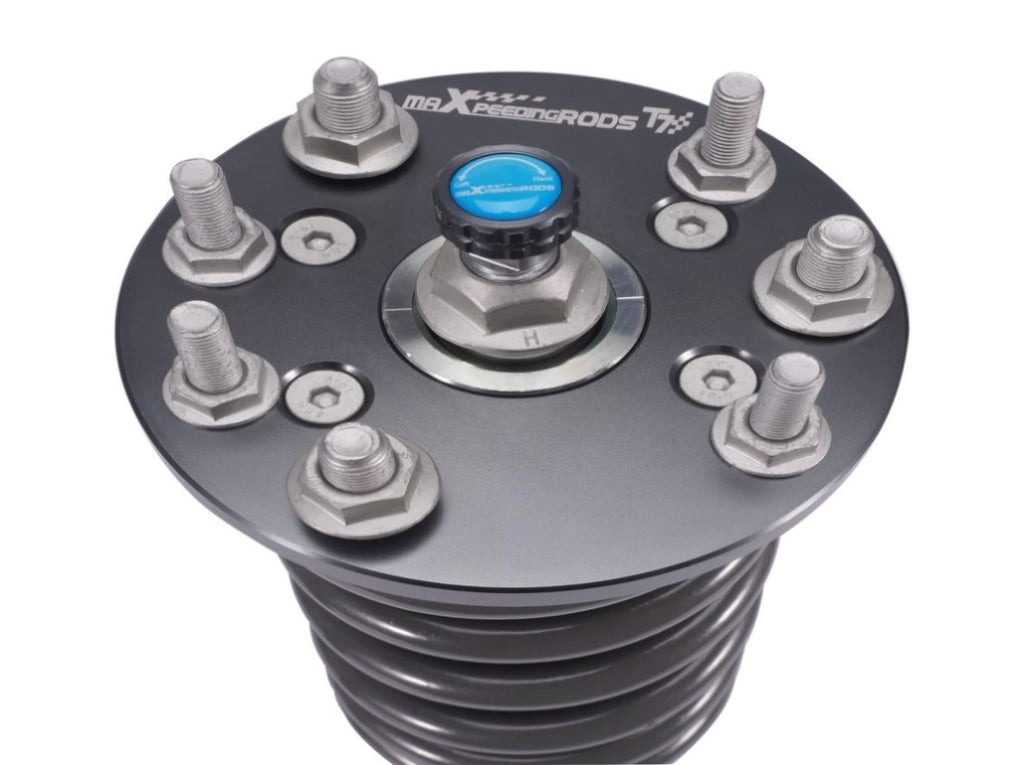

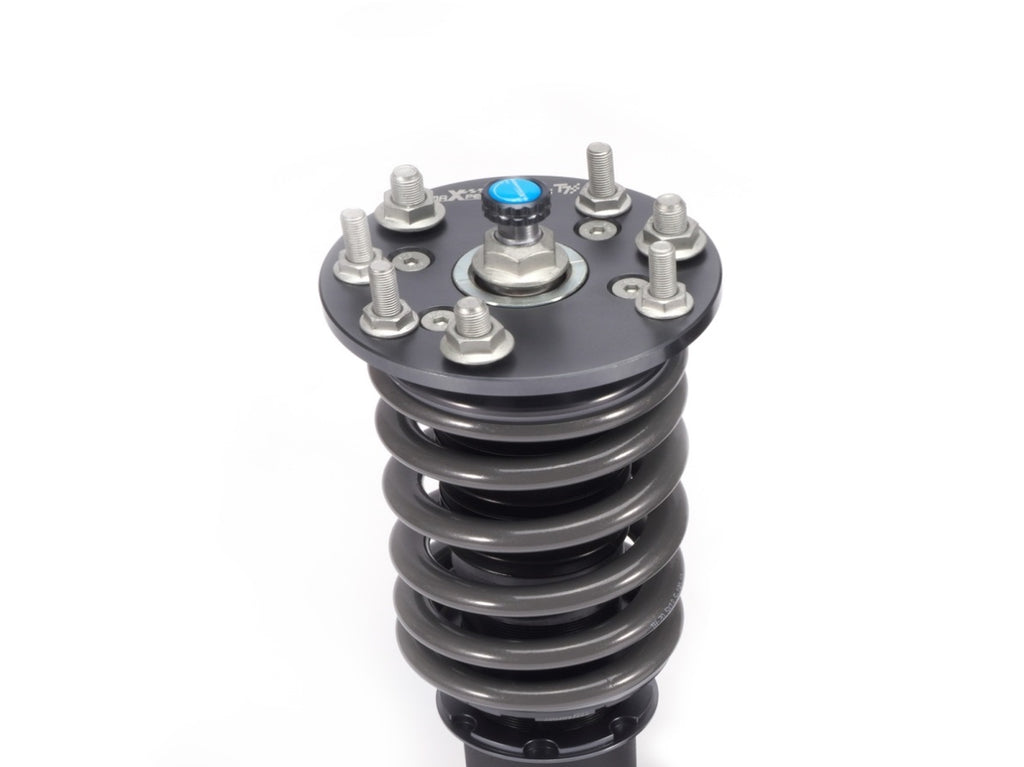

Front top mount: Pillow ball

Rear top mount: Standard rubber

Damping adjustable: Available, 24 levels of rebound damping force

Camber adjustable: Not available

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Spring rate Front: 12kg/mm (672 lbs/in)

Spring rate Rear: 7 kg/mm (392 lbs/in)​

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 190 mm

Spring length Rear: 220 mm

Spring Preload advised: 7-10 mm

Color: Black body with grey spring

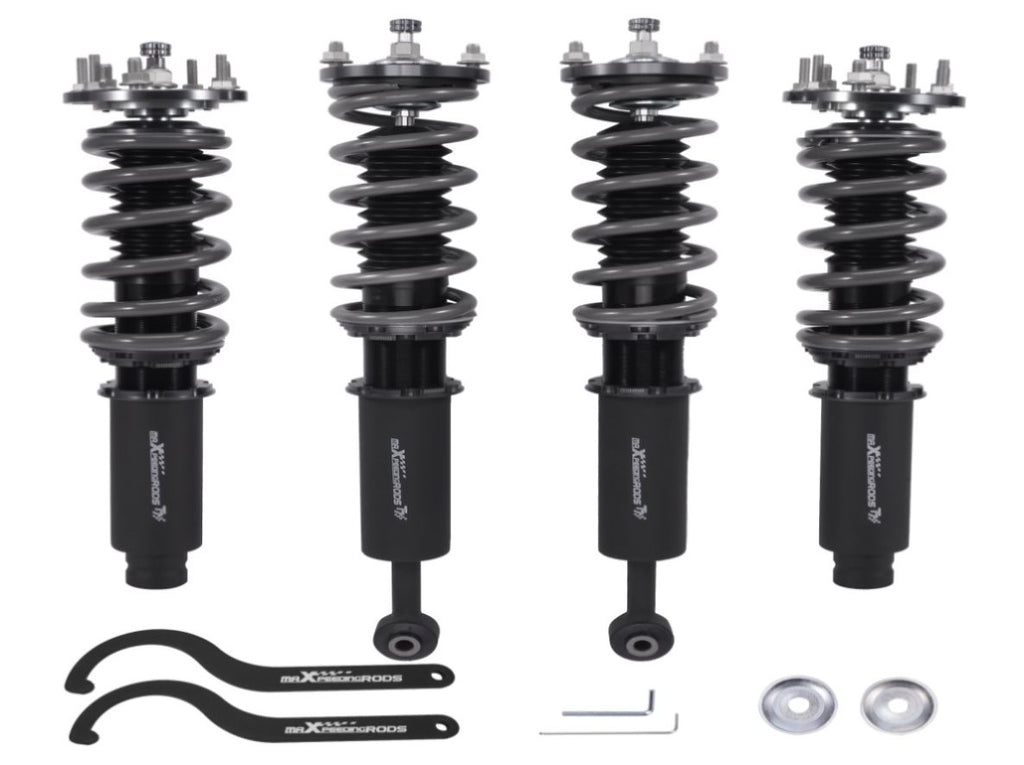

Package included

2x Front coil-overs

2x Rear coil-overs

2x C spanners

2x Allen wrench

1x sticker

Feature

1)Racing damping oil and spring rates set for occassinal track use and daily street use;

2)With better damping setting,you will get better performance and enhanced handling;

3) Lowered height adjustment from 25-75mm (depends on vehicle models)which allow lower center of gravity and also add a more aggressive stance;

4) Adjustable pre-load spring tension to reduce the shaking motion to a certain extent;

5) 24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system.;

6) CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight;

7)  Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable;

8) All inserts come with fitted long rubber boots--- To protect the damper more well and be durable;

9)Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

10) Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts, matt finished surface

11) Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.

12) Clean room assembled---maintain higher level of accuracy and reliability.


Note
1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
