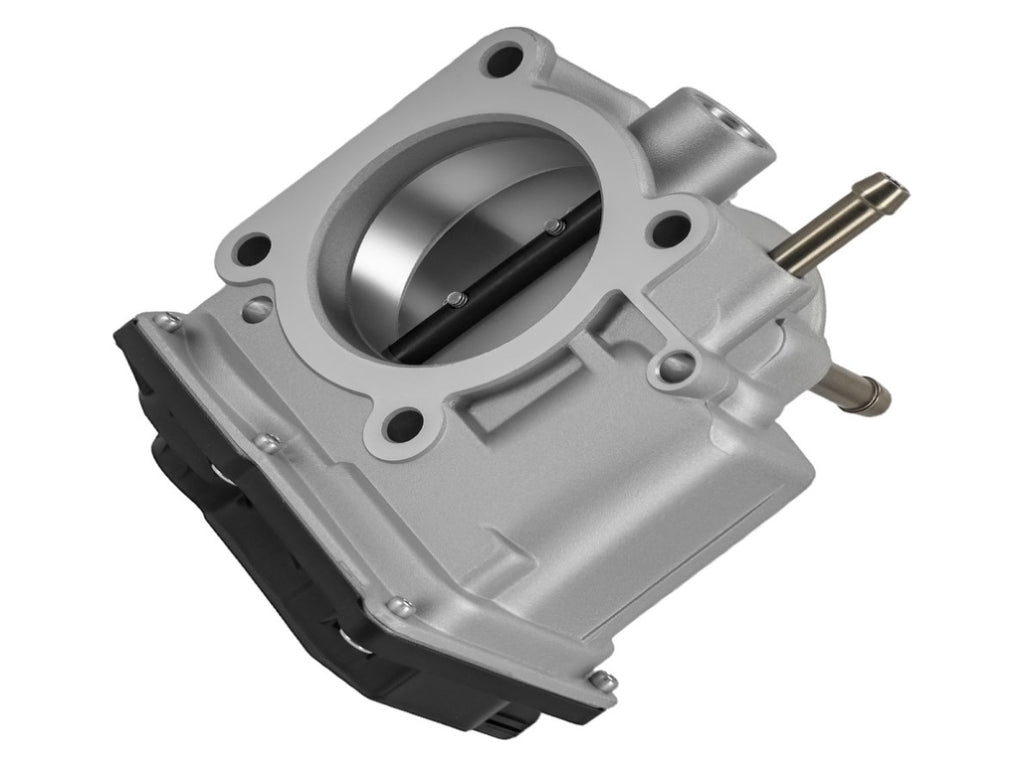

Throttle Body fit for Suzuki Grand Vitara 2.4L 2009-2022 Escudo 05-2017 13400-78K00 60659584

OEM & Part Number

13400-78K00, 1340078K00

Application:

fit for Suzuki Grand Vitara II JT, TD, TE 2.4 2393 cc, 124 KW, 169 HP  2009/09-2022/12
fit for Suzuki Grand Vitara II JT, TD, TE 2.4 AWD 2393 cc, 124 KW, 169 HP  2009/01-2022/12
fit for Suzuki Escudo CBA-TDA4W J24B 2005-2017

Specification:

Type: Throttle Body
Color: Silver
Bore Diameter: 60mm
Main Port Inside Diameter(in): 2.36(60mm)
Air Intake Port Maximum Diameter (in): 2.36(60mm)
Throttle Plate Diameter (in): 2.36(60mm)
Material: Aluminum
Throttle Body Actuation Type: Electrical
Fuel Type: Gasoline
Housing Length: 134.5
Housing Width: 125.2
Connector Quantity: 1
Terminal QTY: 6
Mount Hole Quantity: 4
Fuel System Type: FI
Connector Type: Blade
Universal Fitment: No
Gaskets Included: No
Throttle Body with Sensor: YES

Feature:
1. High Strength Corrosion Resistance: The Throttle Body is a high-quality product that offers High Strength Corrosion Resistance, ensuring durability and longevity in various conditions.

2. Adjusts the Intake Air Volume Precisely: Equipped with advanced technology, it Adjusts the Intake Air Volume Precisely, optimizing your engine's performance and fuel efficiency.

3. Faster Response: Designed fit for Faster Response, this Throttle Body significantly improves acceleration, providing a smoother and more responsive driving experience.

4. Stable Idling: It also ensures Stable Idling, reducing engine vibration and noise fit for a comfortable and quiet ride.

5. Direct Replacement: The Throttle Body is easy to install.

Note:

- Please check again whether the types you choose are accordance with your make before you pay your order.
- Professional Installation is Highly Recommended
- No Instruction Included
