Timing Belt Water Pump fit for 1996-2001 Acura Integra CRV 2.0L 1.8L Honda B18B1 B20 68699032

Fitment:

• fit for Acura Integra GS Hatchback 2 - Door 1.8L DOHC Non - VTEC (B18A1, B18B1) 1998 - 2001
• fit for Acura Integra GS Sedan 4 - Door 1.8L DOHC Non - VTEC (B18A1, B18B1) 1999 - 2001
• fit for Acura Integra LS Hatchback 2 - Door 1.8L DOHC Non - VTEC (B18A1, B18B1) 1999 - 2001
• fit for Acura Integra LS Sedan 4 - Door 1.8L DOHC Non - VTEC (B18A1, B18B1) 1999 - 2001
• fit for Acura Integra RS Hatchback 2 - Door 1.8L DOHC Non - VTEC (B18A1, B18B1) 1996 - 1998
• fit for Acura Integra RS Sedan 4 - Door 1.8L DOHC Non - VTEC (B18A1, B18B1) 1996 - 1998
• fit for Acura Integra Special Edition Hatchback 2 - Door 1.8L DOHC Non - VTEC (B18A1, B18B1) 1996
• fit for Acura Integra Special Edition Sedan 4 - Door 1.8L DOHC Non - VTEC (B18A1, B18B1) 1996
• fit for Honda CR - V EX Sport Utility 4 - Door 2.0L DOHC Non - VTEC (B20B4) 1997 - 1998
• fit for Honda CR - V LX Sport Utility 4 - Door 2.0L DOHC Non - VTEC (B20B4) 1997 - 1998

OE/Part number:

• Timing Belt & Component Kit:  14400PR4A01, 14510P30003, 14510P30003R, 19200PR4013R1, 91203PFB013, 91203PFB013R, 14510PR3004, 14510PR3003

• Timing Belt : 14400P7J004, 14400PR4A01, 14400PR4A01M1

• Water Pump : 19200P75003, 19200PT5000, 19200PT5003

• Camshaft Seal:  9099243590, 91203611003, 91203611004, 91203PA5004, 91203PFB013, 91203PG6003, 91203PG6013, 91203PR4004

Specification:

• Condition: Brand New

• Type: Timing Belt Kit &  Water Pump

• Material: Rubber/Steel/Plastic

• Fitment Type: Direct Replacement

• Manufacturer Warranty: 1 Year

• Placement on Vehicle: Front

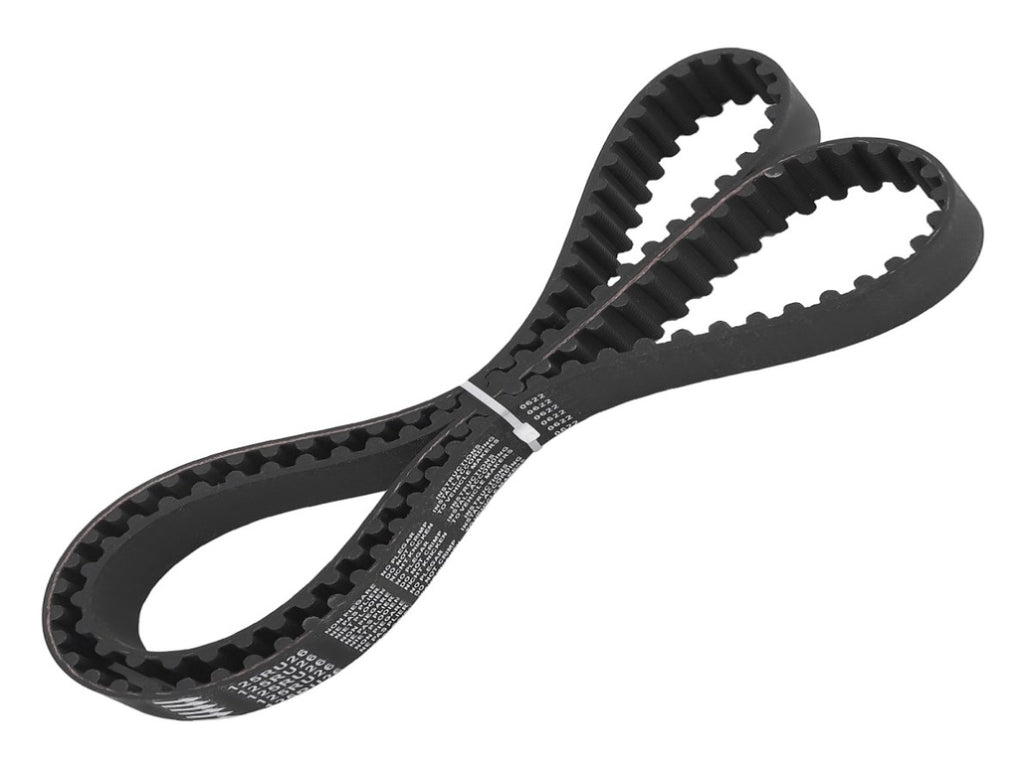

Timing Belt

• Pitch Length: 1191 mm / 46.89 in
• Top Width: 26 mm / 1.02 in
• Cog Quantity: 125
• Pitch: 9.5 mm / 0.37 in
• Profile Type: Modified Curvilinear (III)
• Timing Marks: No
• Material: EPDM
• Color: Black
• Type: Automotive Timing Belt

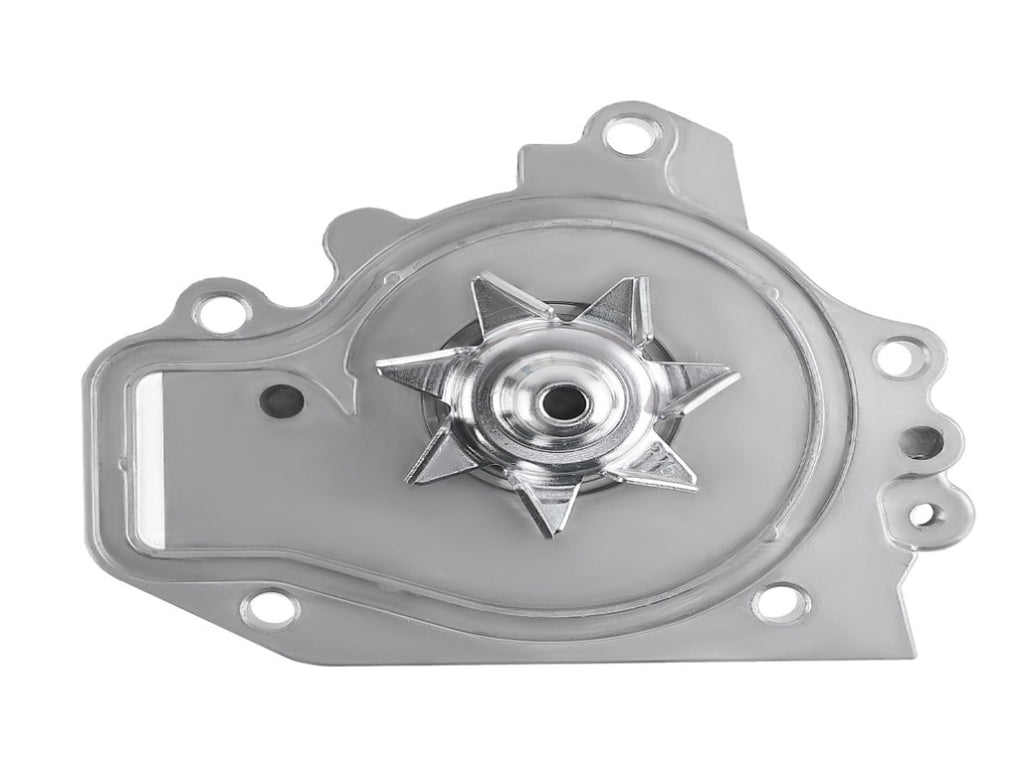

Water Pump

• Housing Material: Aluminium
• Impeller Material: Brass
• Impeller Rotation: Reverse
• Pulley Included: Yes
• Pulley Teeth Quantity: 19
• Mounting Hole Quantity: 6
• Water Pump Drive Type: Timing Belt
• Impeller Outside Diameter: 50 mm / 1.97 in
• Pulley Width: 28.6 mm / 1.13 in
• Bearing Outside Diameter: 30 mm / 1.18 in
• Bearing Type: Ball/Ball
• Gasket or Seal Included: Yes
• Impeller Vane Quantity: 7

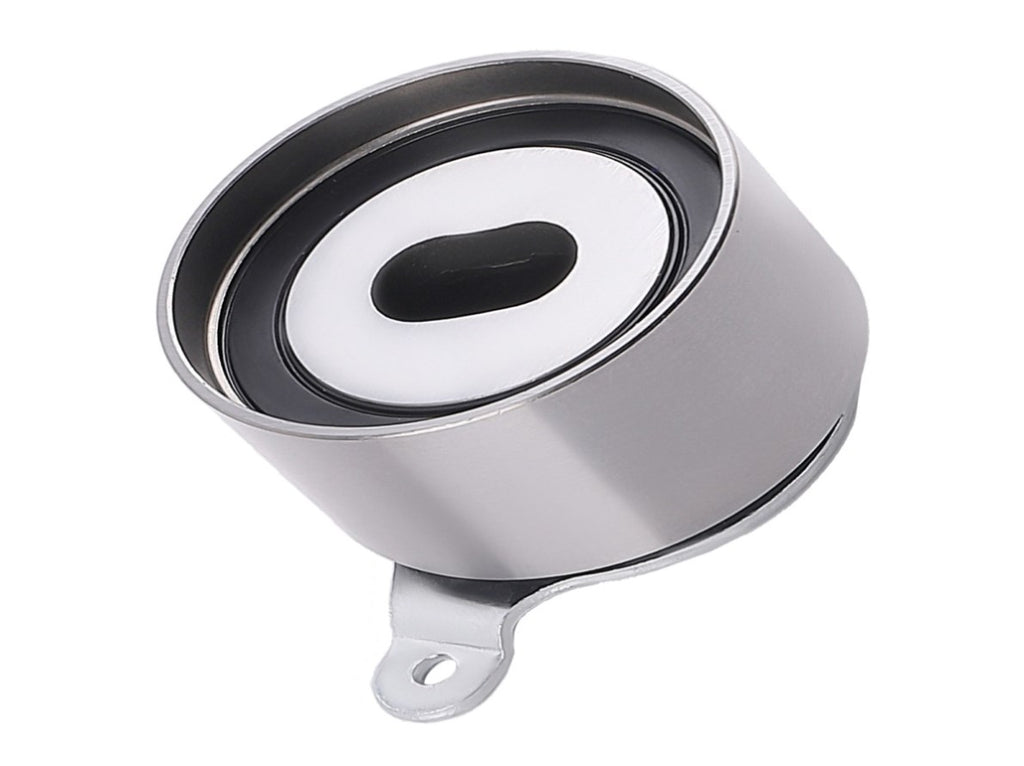

Tensioner

• Tensioner Type: Spring
• Pulley Outside Diameter: 55 mm / 2.17 in
• Pulley Width: 30 mm / 1.18 in
• Mounting Hole Diameter: 10.5 mm / 0.41 in
• Contact Surface: Smooth/Backside
• Pulley Type: Flat
• Pulley 1 Flanged: No
• Material: Steel
• Pulley Quantity: 1

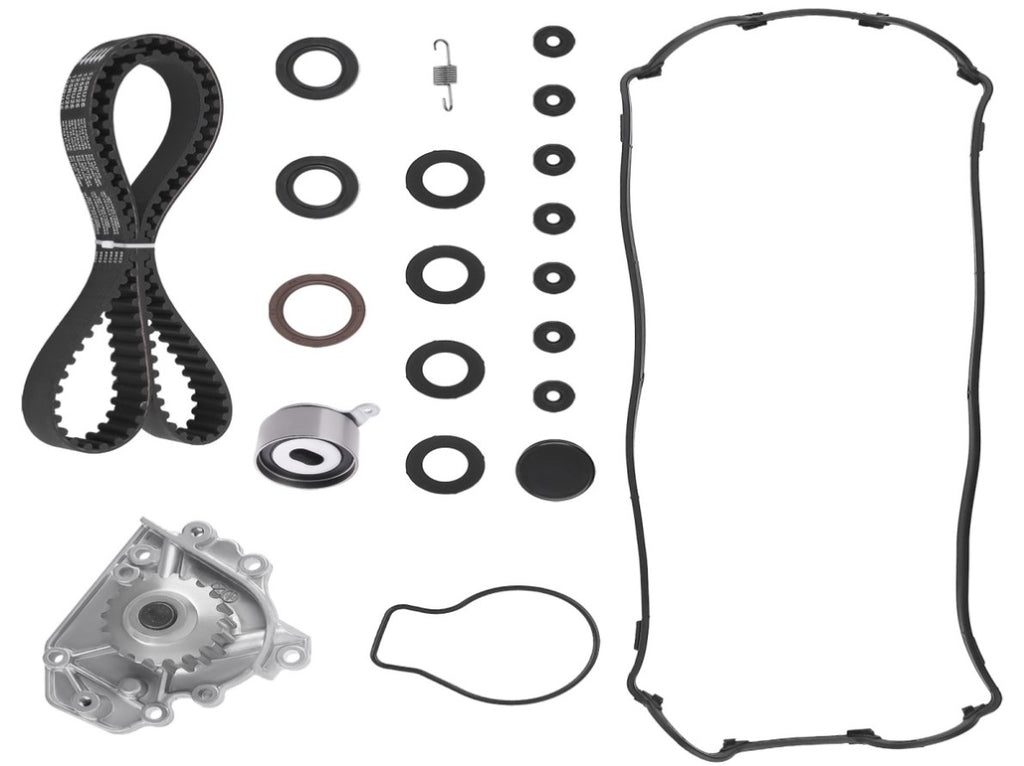

Package included:

• 1*Timing Belt (125 teeth)

• 1*Tensioner Roller (bearing assembly)

• 1*Tensioner Spring

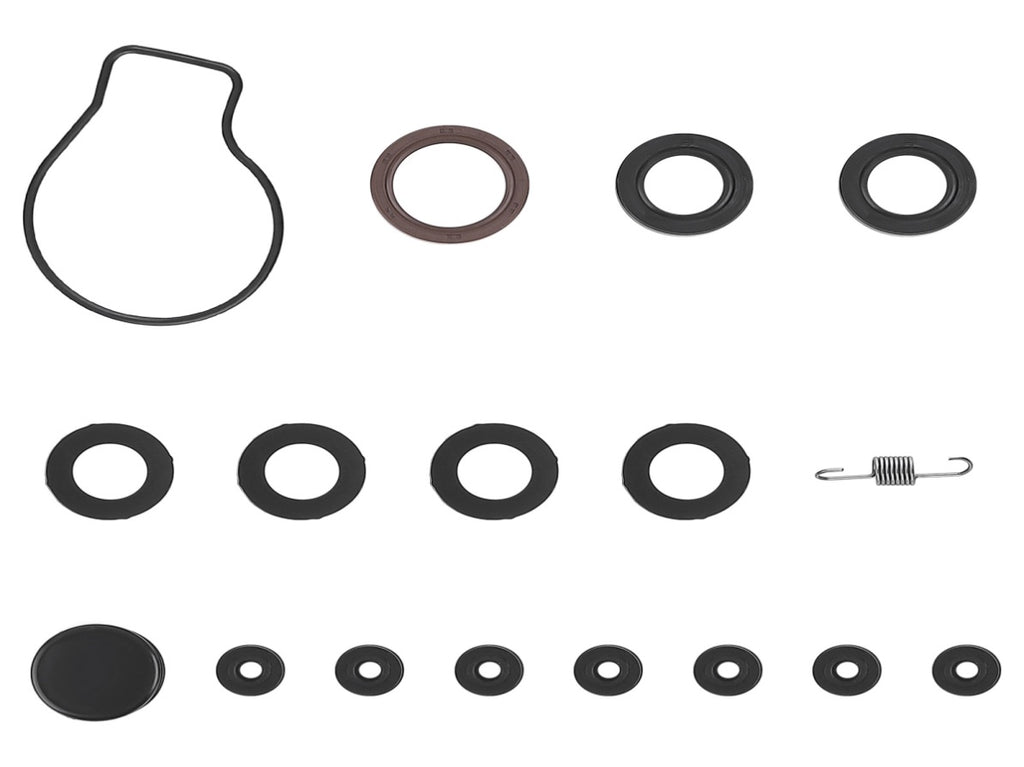

• 2*Camshaft Seals

• 1*Front Crankshaft Seal

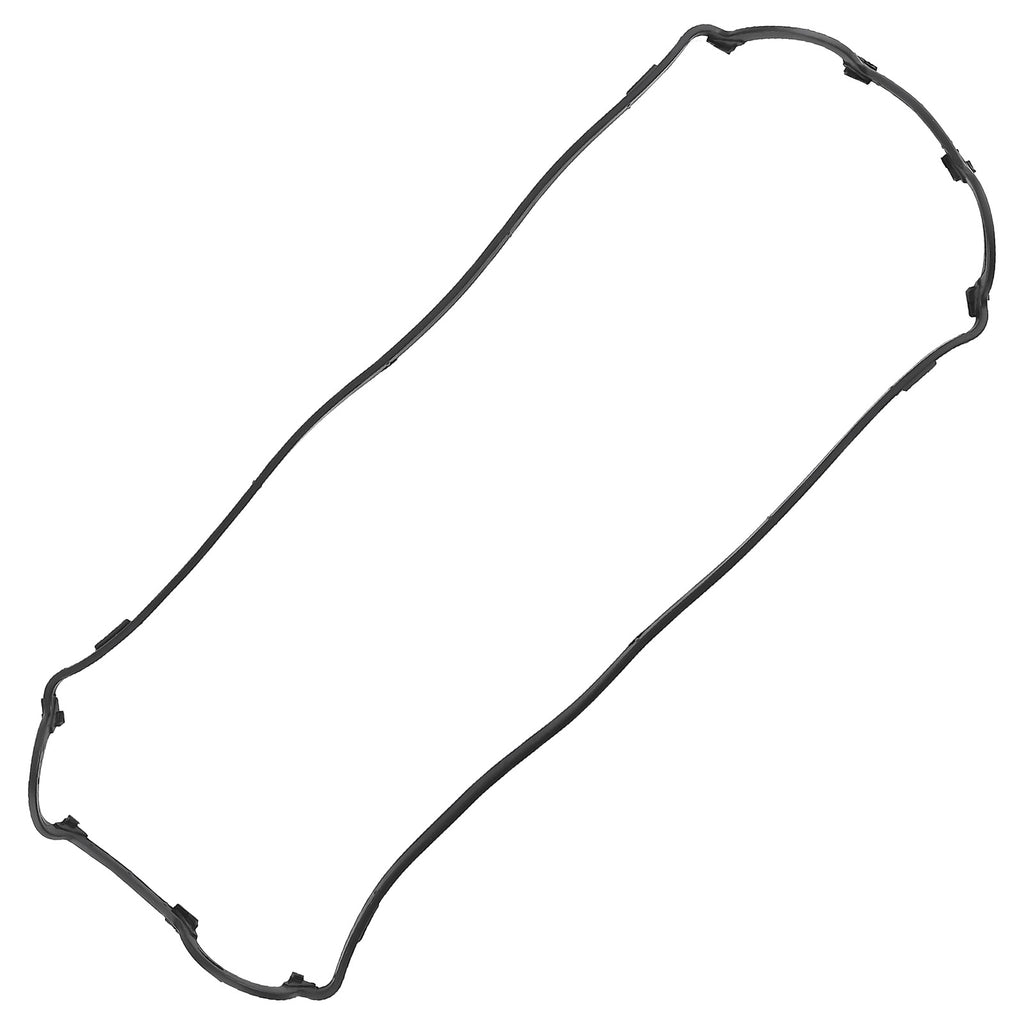

• 1*Valve Cover Gasket

• 1*Pully

• 4*Spark Plug Tube Seals

• 7*Grommets

• 1*Water Pump with Seal

Feature:

1.100% NEW.
Every product has quality inspection before leaving the factory.
2.High Quality
Components and materials ensure a longer service life.
3.Direct Fit
Less expensive, easier to install.

Notice:

1.Professional installation is highly recommended.
2.Please make sure it will fit your machine before purchasing it.
3.Please check pictures fit for more details.
