Top End Kit 78.5mm Bore Cylinder Head Piston Kit fit for 00-06 Honda Rancher TRX350 93061698

Application:

fit for Honda TRX 350FA Rancher 2000-2006
fit for Honda TRX 350FM Rancher 2000-2006
fit for Honda TRX 350TE Rancher 2000-2006
fit for Honda TRX 350TM Rancher 2000-2006

Replacement Part Number:
12100-HN5-670, 13101-HN5-670, 13010-HN5-671, 13111-HC0-000,
13112-HN5-670, 12251-HN5-671, 12191-HN5-670, 12200-HN5-670,
12200-HN5-M00, 98069-57916
12100HN5670, 13101HN5670, 13010HN5671, 13111HC0000,
13112HN5670, 9806957916, 12251HN5671, 12191HN5670，
12200HN5670, 12200HN5M00

Specification:
Type: Cylinder Piston Top End Rebuild Kit
​Material: Aluminum
Placement on Vehicle: Front
Compression: 8.8:1
Compatible Type: ATV
Cylinder Displacement: 350cc
Cylinder Bore and Stroke: 78.50mm x 68.00mm
Height of the Cylinder: 118.8mm
Internal Cylinder Coating: No
Piston: Cast Piston
Pistons Size: 78.5mm
Displacement Type: Direct replacement


Feature:
* Heavy duty aluminum construction.
* If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, the Cylinder Piston Kit is exactly the right choice fit for you.
* The Piston is anodized fit for superior heat resistance and longer life.
* These gaskets are made of performance materials to increase durability and provide greater reliability.
​​* Cylinder Bore and Stroke 78.50mm x 68.00mm.
* Cylinder Displacement 350cc / Compression 8.8:1.

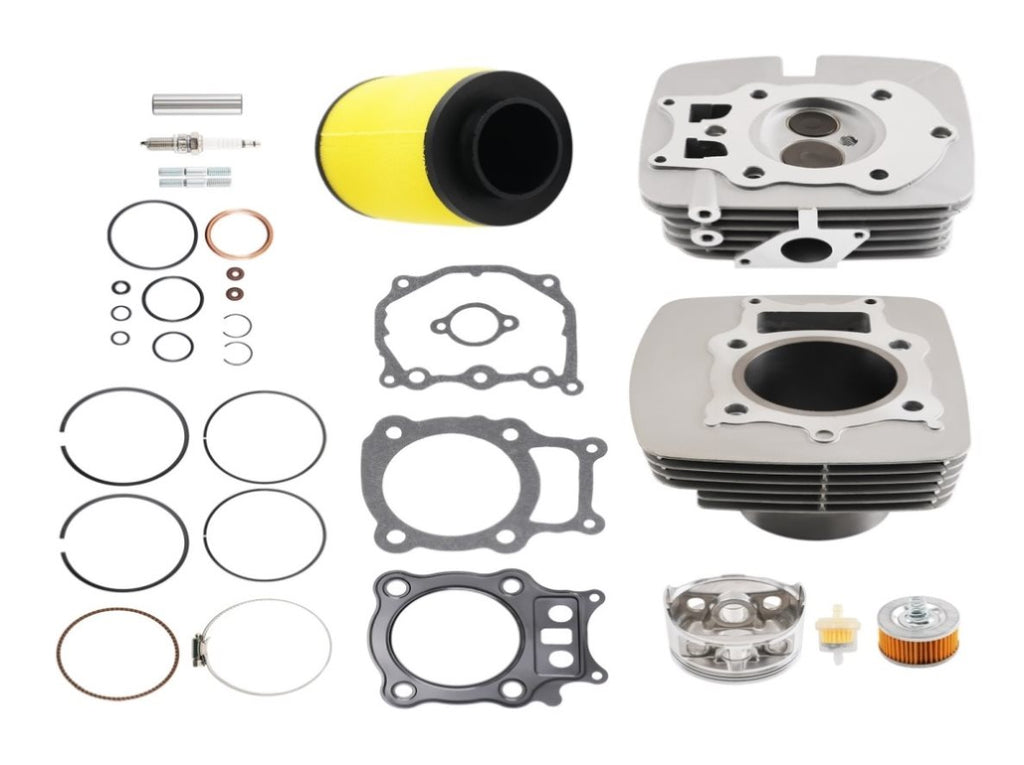

Package includes:
1x Cylinder
1x Cylinder Head

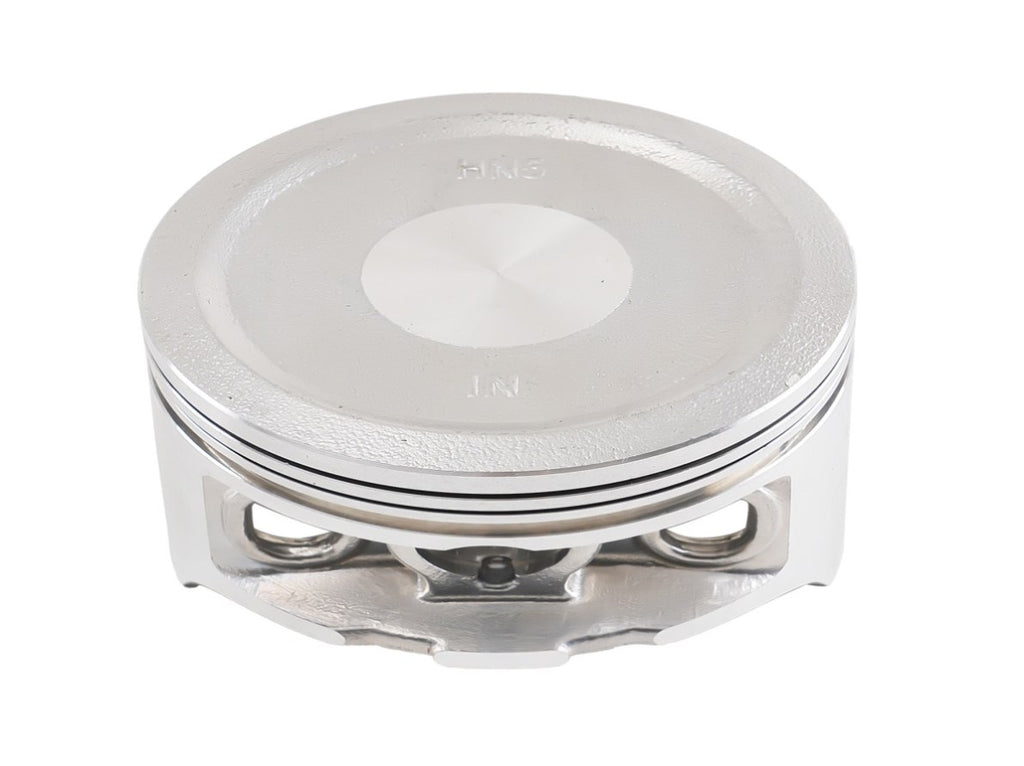

1x Piston
1x Piston Pin
2x Circlips

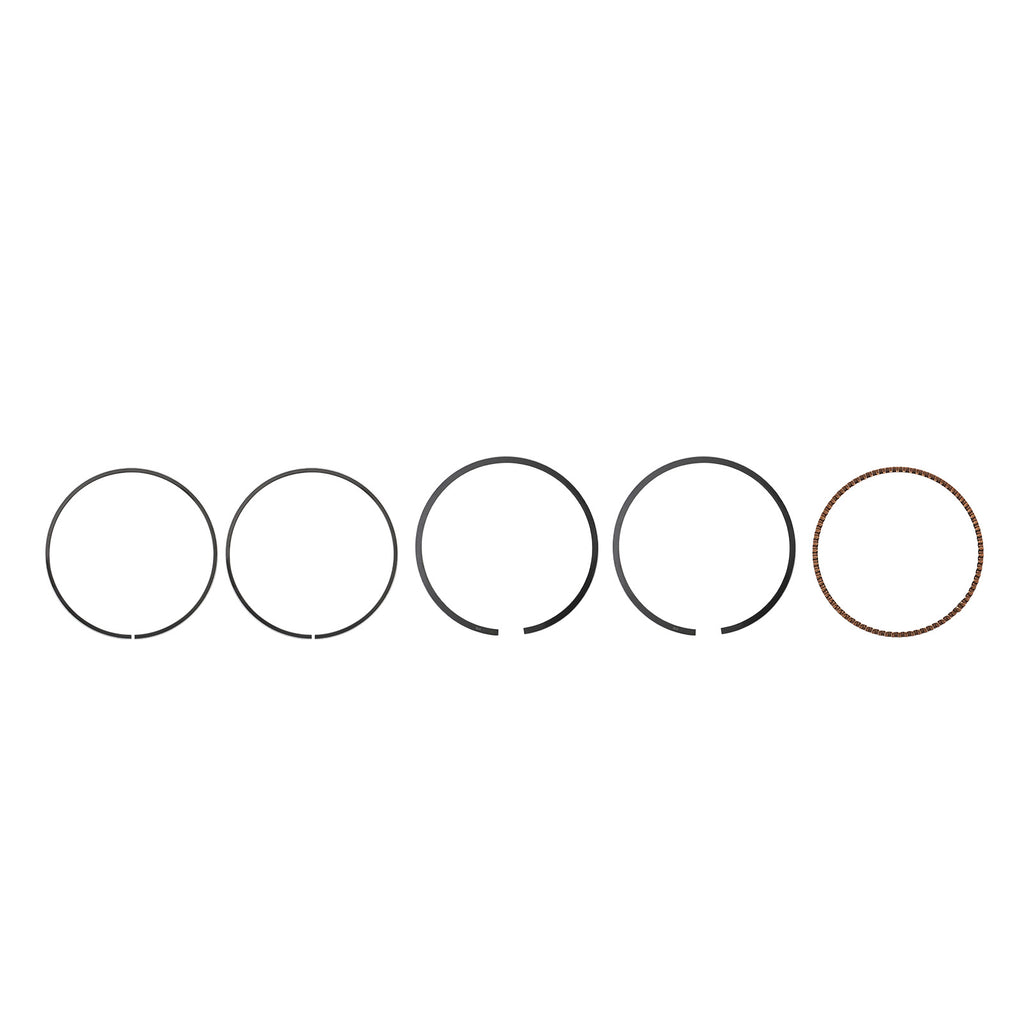

1x Complete Set Of Rings
1x Head Gasket
1x Base Gasket
1x Valve Cover Gasket
1x Exhaust Gasket
1x Air Filter

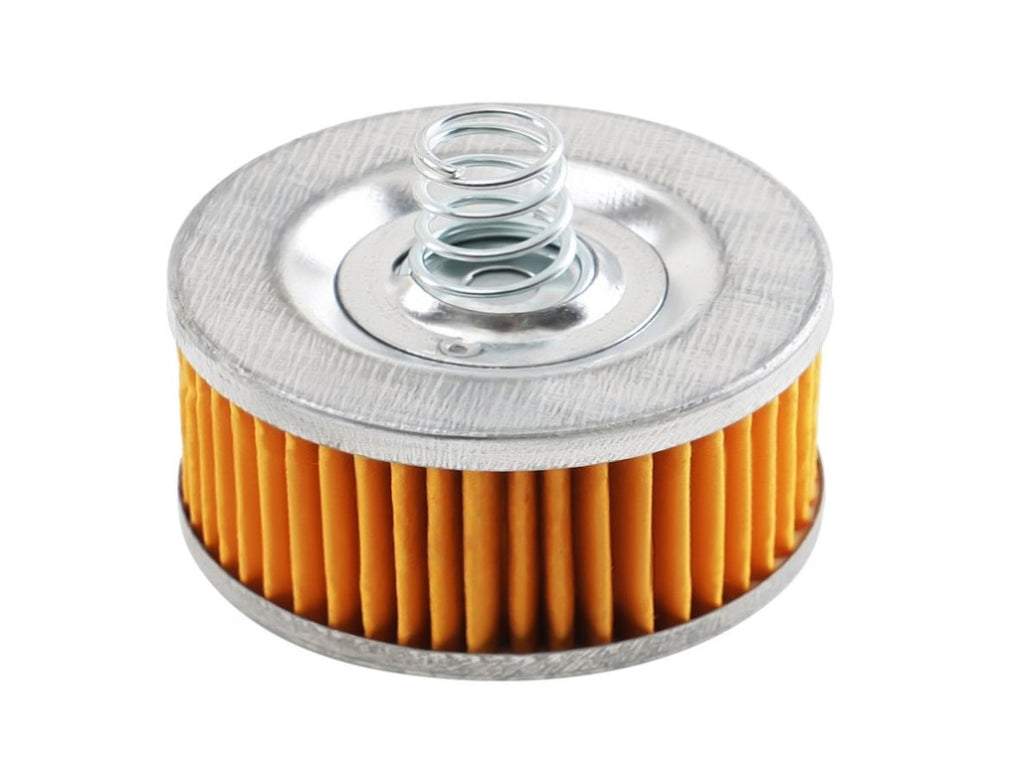

1x Oil Filter

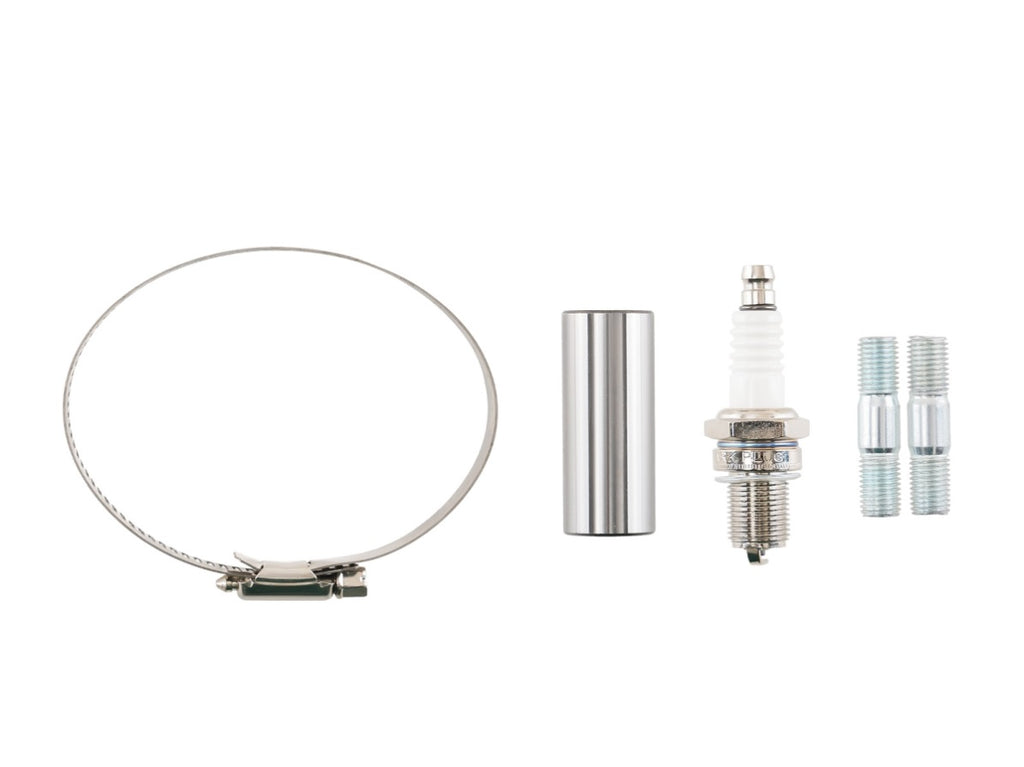

1x Spark Plug
(As the Pictures Show)

Note:
- Please confirm the model number before purchase
- Not Included installation instructions
