Turbo Charger fit for AUDI A4 A5 Q5 2.0 TFSI 2009 -16 Quattro 06H145702G 53039700291 35768999
Please confirm your original turbo part number before purchasing. The part number is located on the turbo NAMEPLATE of the compressor housing, you can check it with your mechanic as well.
Applications:
fit for Audi A4, A4 Avant, fit for A4 Quattro Avant 2.0 TFSI 2009-2016
fit for Audi A5 Coupe, A5 SportBack 2.0 TFSI 2008-2016
fit for Audi A5 Cabriolet 2.0 TFSI 2009-2016
fit for Audi Q5 2.0L, S4 Avant, S5 Coupe, S5 Sport Back 2.0 TFSI 2009-2017
fit for Audi A4, A5, A6, S4, S5 2.0 TFSI 2008-2016
fit for Volkswagen Passat 2.0 TSI 2008-2015
fit for Seat Exeo 2.0 TSI 2008-2015
fit for Audi A4 2.0p 180-211bhp 2008-2016 CAEA, CDNB, CDNC, CFKA, 8K2, 8K5, 8KH, B8, TFSI, fit for Quattro, Allroad
fit for Audi A5 2.0p 180-211bhp 2009-2016 CAEA , CAEB, CDNB, CDNC, 8F7, 8T3, 8TA, TFSI, fit for Quattro
fit for Audi Q5 2.0p 180-211bhp 2009-2017 CDNB, CDNC, 8R, TFSI,fit for Quattro
fit for Seat Exeo 2.0p 211bhp 2008-2015 CDND, 3R2, 3R5, TFSI
Part Number & OEM Number:
06H145702L , 06H 145 702 L , 06H 145 702L, 06H145702LV ,
06H145702LX, 06H145702S , 06H 145 702 S , 06H 145 702S,
06H145702SV , 06H145702SX, 06H145702G , 06H 145 702 G ,
06H 145 702G , 06H145702GV , 06H145702GX, 06H145702Q ,
06H 145 702 Q , 06H 145 702Q , 06H145702QV , 06H145702QX,
06H145702R , 06H 145 702 R , 06H 145 702R , 06H145702RV ,
06H145702RX, 06H145701Q , 06H 145 701 Q , 06H 145 701Q ,
06H145702T , 06H145702TV, 06H145702TX, 5303-988-0291,
53039700291, 5303-970-0291 , 53039880291
Feature:
* Product Material
1. Turbine housing : Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
* Product Features:
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Specification:
Turbo Model: RHF5
Engine Code: CDNB, CDNC, CAEA, CAEB, CFKA, TFSI
Cooling Type: Water & Oil Cooled
Bearing Type: Floating Bearing
Trust Bearing: 360 degree
Hosepower: 155KW/ 211 PS
Turbo Type: Individual
Condition: 100% Brand New
Package Size: 49 x 38 x 26 cm
Package Weight: 12850g
Warranty: 2 years warranty fit for any manufacturing defect

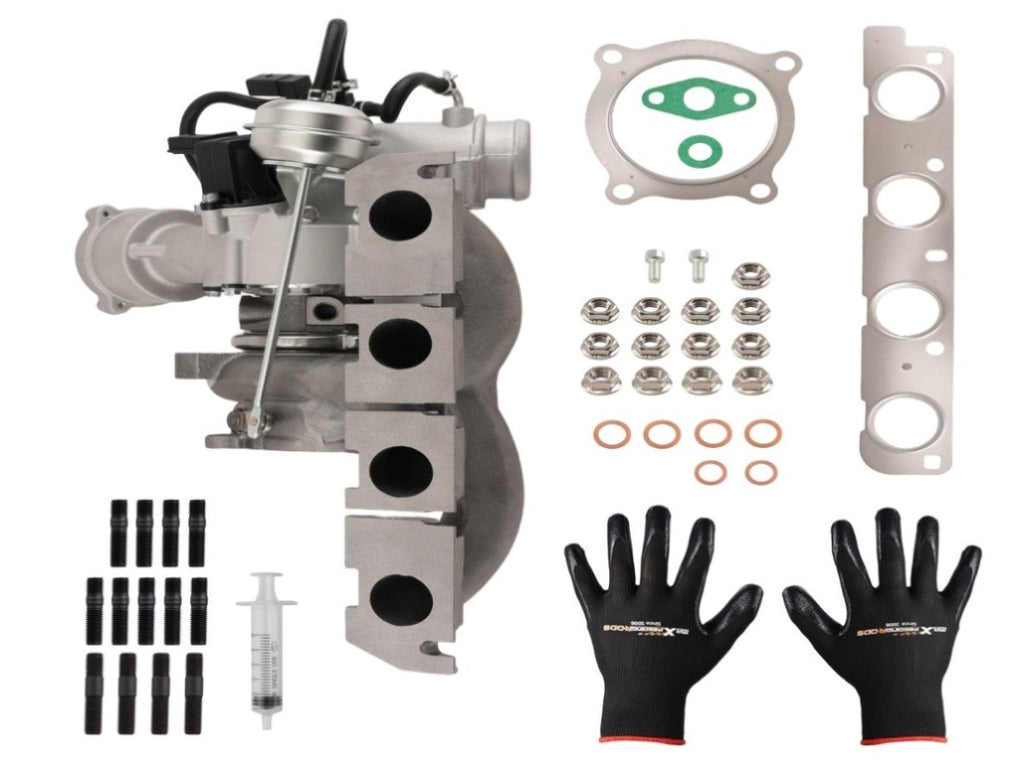

Accessories: You will get exactly as shown in the picture above
Note:
Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
