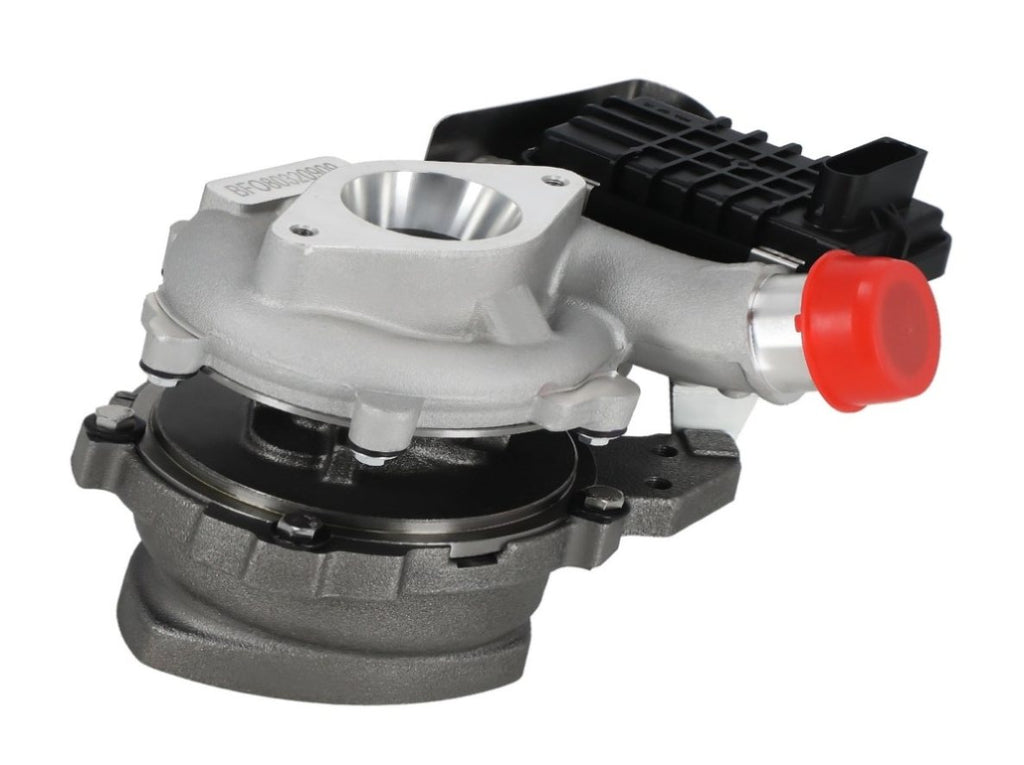

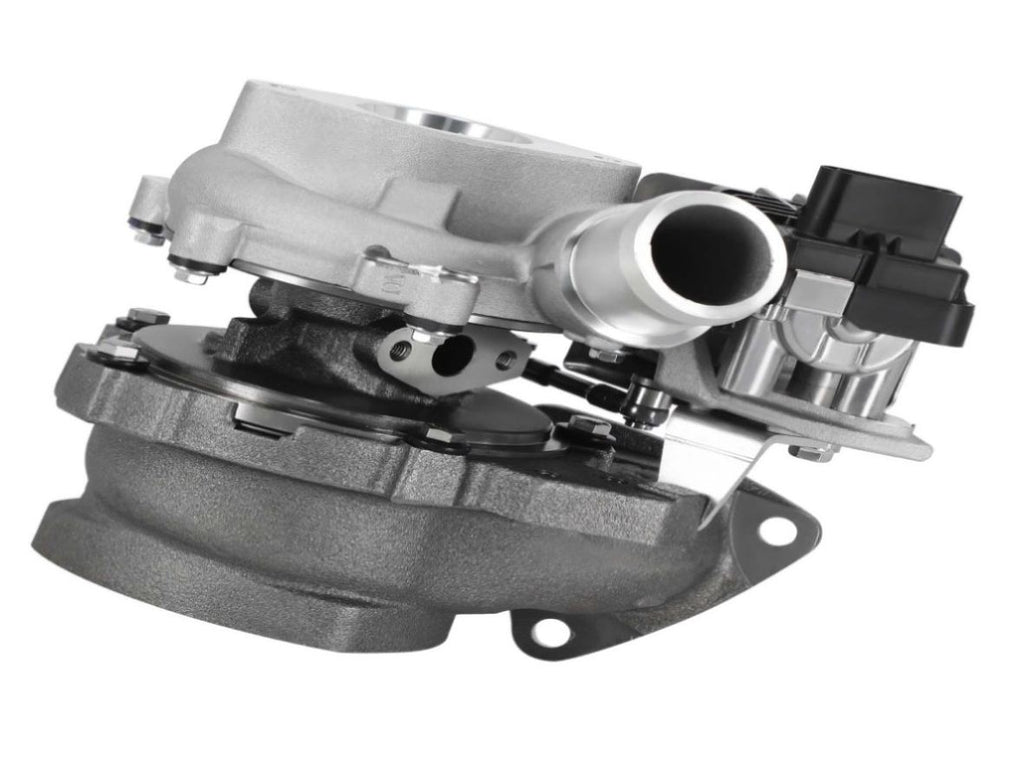

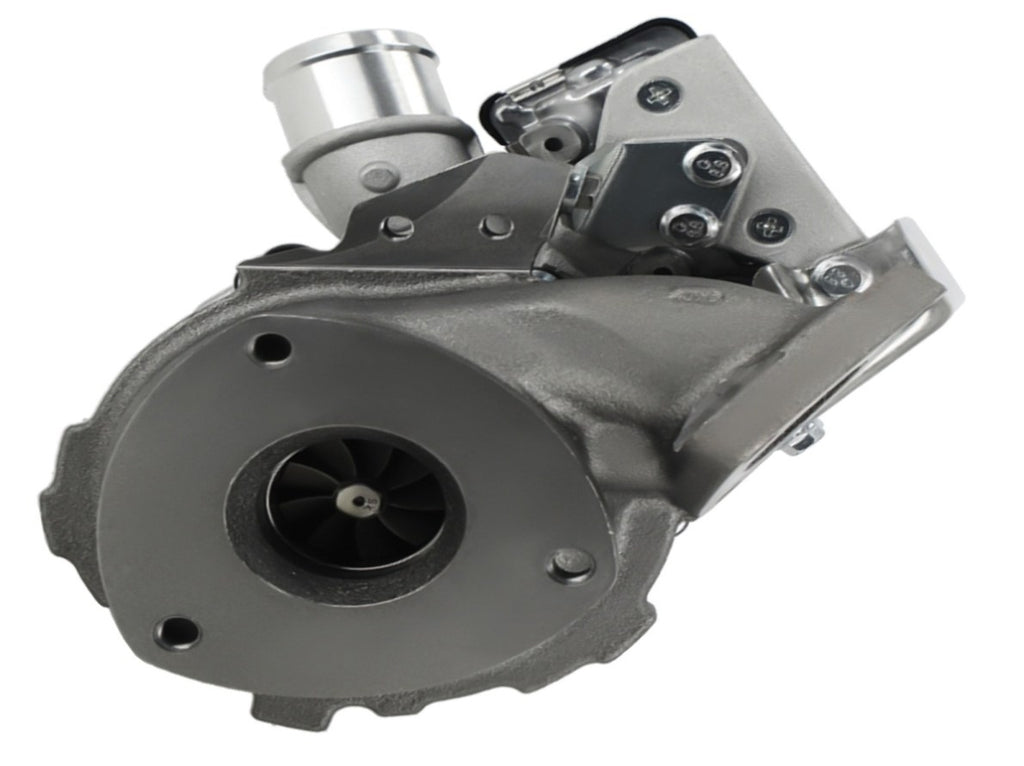

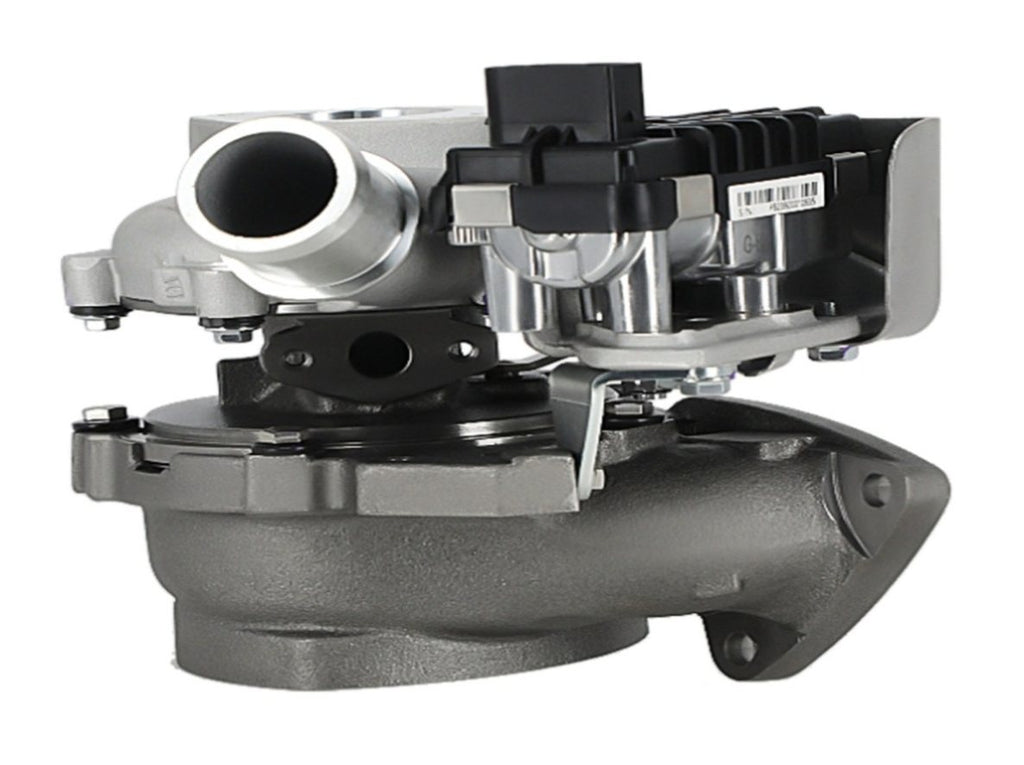

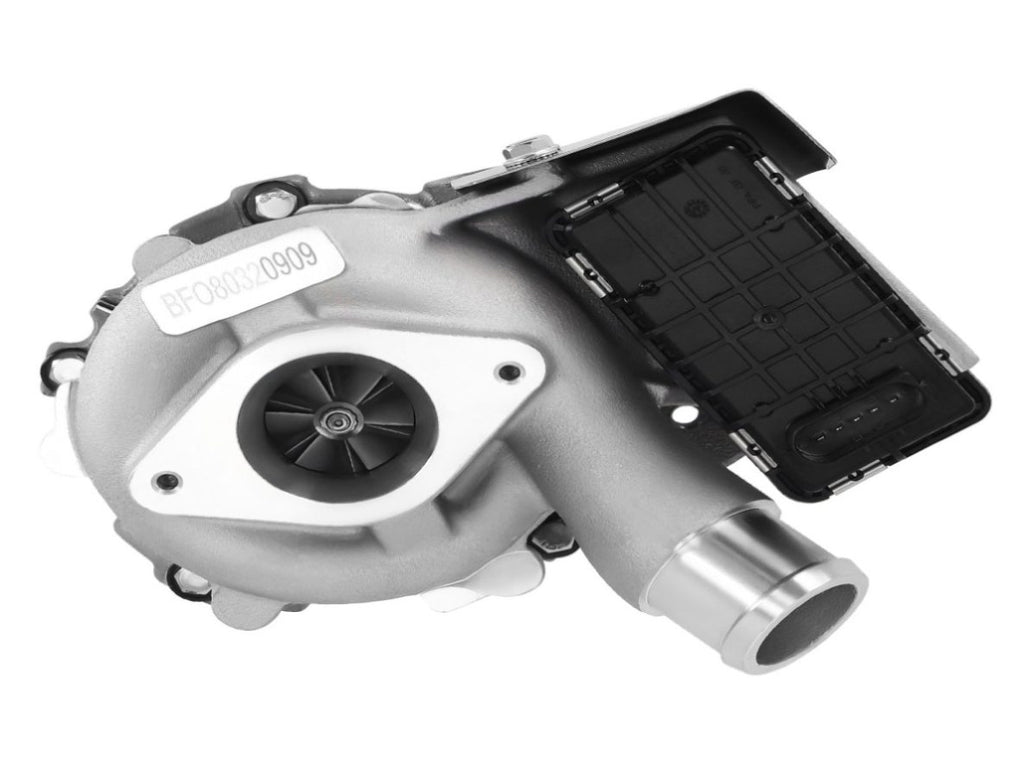

Turbo fit for Ford Commercial Transit 2.2L Duratorq Tdci Euro-5 114kw 153hp Turbine 53472457

Turbocharger GT1749V Turbo fit for Ford Ranger Transit 2.2TDCI

Applications:

fit for Mazda BT50 2.2L 2011-2021
fit for Ford Ranger (TKE) 2.2TDCI 4x4 110KW ENQJ, GBVAJQJ 2011-2025
fit for Ford Ranger (TKE) 2.2TDCI 110KW ENQJ, GBVAJQJ 2011-2025
fit for Ford Ranger (TKE) 2.2TDCI 118KW GBVAJQJ, T22DD0P 2015-2025
fit for Ford Ranger (TKE) 2.2TDCI 4x4 118KW GBVAJQJ, T22DD0P 2015-2025
fit for Ford Transit Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2TDCI RWD 74KW DRRA, DRRB, DRRC 2011-2014
fit for Ford Transit Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2TDCI RWD 92KW CYRA 2011-2014
fit for Ford Transit Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2TDCI RWD 100KW USRA, USRB 2011-2014
fit for Ford Transit Kasten (FA_ _) 2.2TDCI RWD 74KW DRRA, DRRB, DRRC 2011-2014
fit for Ford Transit Kasten (FA_ _) 2.2TDCI RWD 92KW CYRA 2011-2014
fit for Ford Transit Kasten (FA_ _) 2.2TDCI 4x4 92KW CYRB, CYRC 2011-2014
fit for Ford Transit Kasten (FA_ _) 2.2TDCI RWD 100KW USRA, USRB 2011-2014
fit for Ford Transit Kasten (FA_ _) 2.2TDCI RWD 114KW CVRA, CVRB, CVRC 2011-2014
fit for Ford Transit Pritsche/Fahrgestell (FM_ _, FN_ _, FF_ _) 2.2TDCI RWD 74KW DRRA, DRRB, DRRC 2011-2014
fit for Ford Transit Pritsche/Fahrgestell (FM_ _, FN_ _, FF_ _) 2.2TDCI RWD 92KW CYRA 2011-2014
fit for Ford Transit Pritsche/Fahrgestell (FM_ _, FN_ _, FF_ _) 2.2TDCI 4x4 92KW CYRB, CYRC 2011-2014
fit for Ford Transit Pritsche/Fahrgestell (FM_ _, FN_ _, FF_ _) 2.2TDCI RWD 114KW CVRA, CVRB, CVRC 2011-2014
fit for Ford Transit V363 Bus (FAD, FBD) 2.2TDCI RWD 74KW DRR5 2013-2018
fit for Ford Transit V363 Bus (FAD, FBD) 2.2TDCI RWD 92KW CYR5, USR6 2013-2018
fit for Ford Transit V363 Bus (FAD, FBD) 2.2TDCI 4x4 92KW CY24, CYR5 2013-2018
fit for Ford Transit V363 Bus (FAD, FBD) 2.2TDCI RWD 99KW UHR5 2013-2018
fit for Ford Transit V363 Bus (FAD, FBD) 2.2TDCI RWD 114KW CV24, CVR5, UYR6 2013-2018
fit for Ford Transit V363 Bus (FAD, FBD) 2.2TDCI Allrad 114KW CV24, CVR5 2015-2018
fit for Ford Transit V363 Kasten (FCD, FDD) 2.2TDCI RWD 74KW DRR5 2013-2018
fit for Ford Transit V363 Kasten (FCD, FDD) 2.2TDCI RWD 92KW CYR5, USR6 2013-2018
fit for Ford Transit V363 Kasten (FCD, FDD) 2.2TDCI 4x4 92KW CY24, CYR5 2013-2018
fit for Ford Transit V363 Kasten (FCD, FDD) 2.2TDCI RWD 114KW CV24, CVR5, UYR6 2013-2018
fit for Ford Transit V363 Kasten (FCD, FDD) 2.2TDCI 4x4 114KW CV24, CVR5 2015-2018
fit for Ford Transit V363 Pritsche/Fahrgestell (FED, FFD) 2.2TDCI RWD 74KW DRR5 2013-2018
fit for Ford Transit V363 Pritsche/Fahrgestell (FED, FFD) 2.2TDCI RWD 92KW CYR5, USR6 2013-2018
fit for Ford Transit V363 Pritsche/Fahrgestell (FED, FFD) 2.2TDCI 4x4 92KW CY24, CYR5 2013-2018
fit for Ford Transit V363 Pritsche/Fahrgestell (FED, FFD) 2.2TDCI RWD 114KW CV24, CVR5, UYR6 2013-2018
fit for Ford Transit V363 Pritsche/Fahrgestell (FED, FFD) 2.2TDCI 4x4 114KW CV24, CVR5 2013-2018

Turbo Part Number:

854800-0001,  854800-1,  854800,  787556-5017S,
787556-17,  787556-0017,  7875560017, 787556-9017S,
787556-5016S,  787556-16,  787556-0016,  7875560016,
787556-9016S,  787556-5022S,  787556-22,  787556-0022,
7875560022,  1717628,  1719695,  1760759

Interchange Part Number:

BK3Q6K682PC,  BK3Q-6K682-PC,   BK3Q6K682PB,
BK3Q-6K682-PB,   BK3Q6K682CB,   BK3Q-6K682-CB,
BK3Q-6K682-CC，BK3Q6K682HA,   BK3Q-6K682-HA,  BK3Q6K682CC,


Specification:

Turbo Model: GTB1749VK
Actuator Type: Electronic Actuator
Cooling Type: Oil Cooled
Bearing Type: Journal Bearing / Floating Bearing
Thrust Bearings: 270 Degrees
Condition: Brand New
Accessories: You will get exactly as shown in the picture above
Package Size: 26* 25 * 23  cm
Package Weight: 7840 g

Features:

*Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

*Product  Feature
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

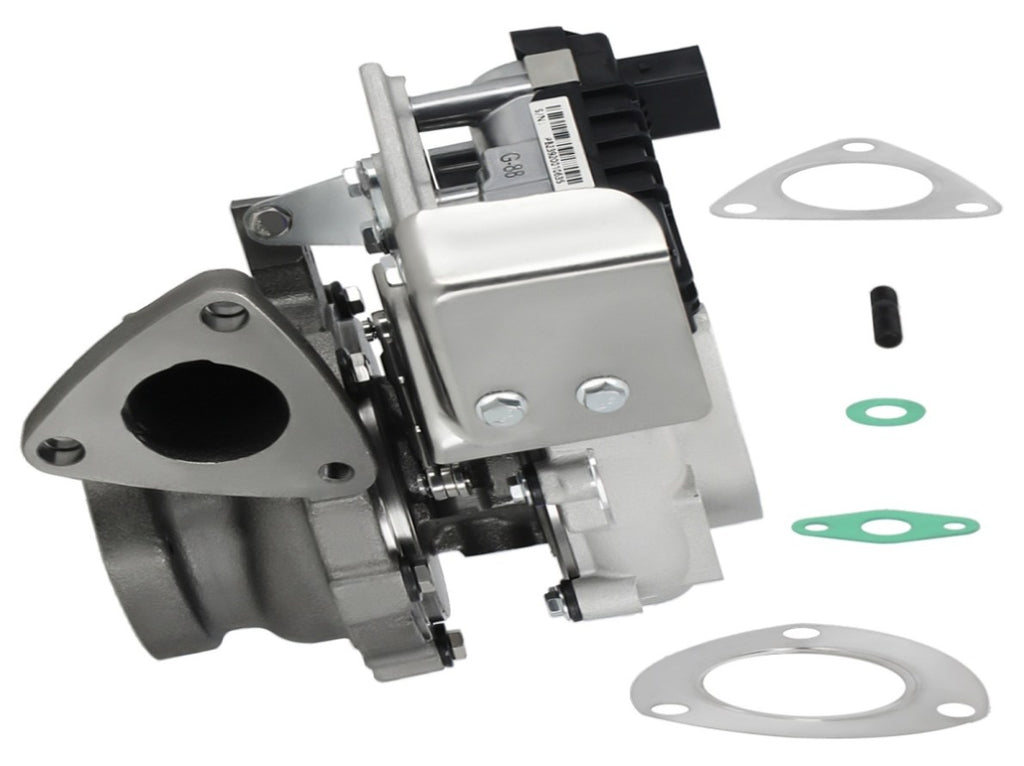

*All necessary gaskets included fit for ease of installation

NOTE:

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
