Turbo Turbocharger RH55 VF52 fit For Subaru Impreza WRX 2.5L Gas 2009-2014 39082456
Adaptability fit for :
fit for Subaru Impreza WRX 2009-2014
fit for Subaru Legacy 2005-2009
fit for Forester 2.5XT 2007-2011
fit for Outback 2005-2009
Turbo Part Number:
14411AA800,14411-AA800,1-4411-AA800,
40-30186 R,VF52, VF55,
Compressor Wheel Diameter: 46/59mm
Turbine Wheel Diameter: 47/51 mm

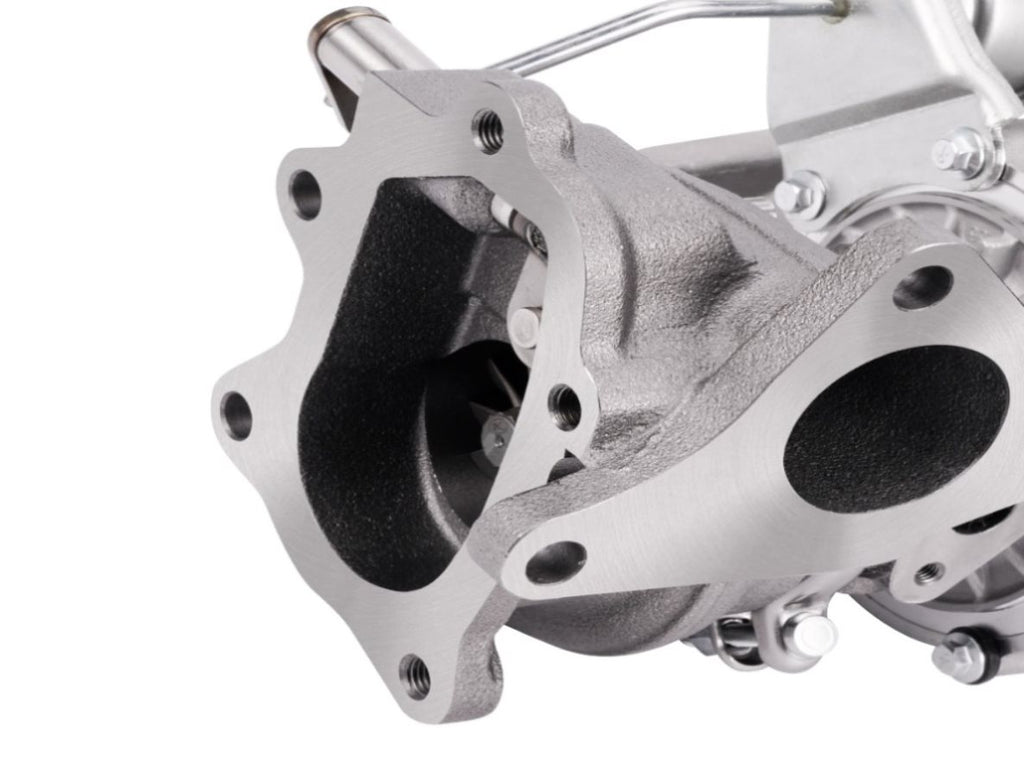

Exhaust Inlet Flange: 3 Bolts
Exhaust Outlet Flange: 5 Bolt
Nozzle Area: 7cm
Turbo Model: RHF5H, RHF5H 09 098E
Engine Code: 6MT, EJ25 2.5 GT
Cooling Type: Water & Oil Cooling
Thrust Bearing: 360 Degrees
Horsepower: 320HP
Bearing Type: Floating Bearing
Turbo Type: Individual
Condition: 100% Brand New

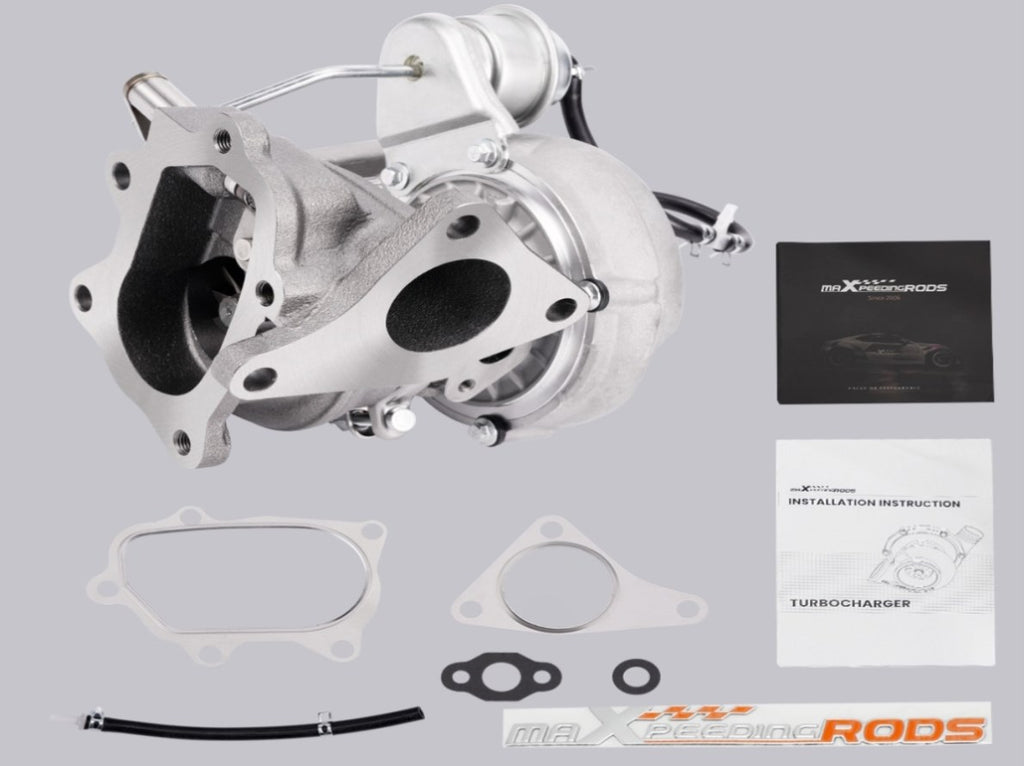

Accessories: You will get exactly as shown in the picture above
Package Weight: 6740g
Package Size: 30*28*24cm
* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight

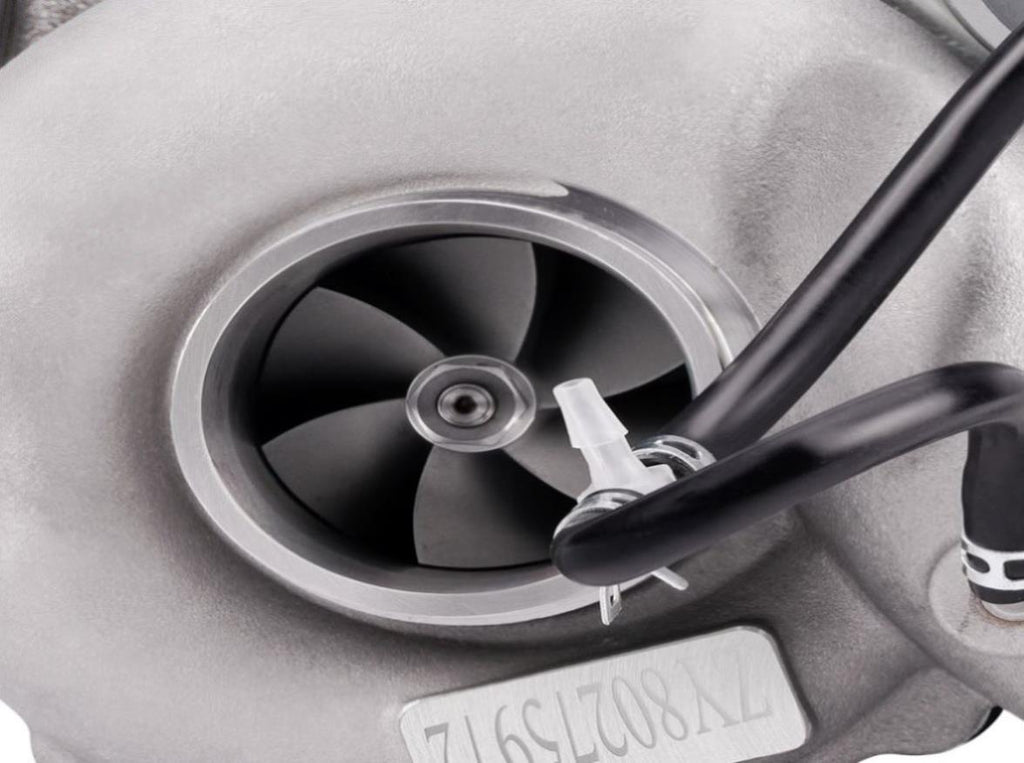

4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
* Product
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programme
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
How to Find Turbo Code:
If you are not sure the fitment fit for your old turbo , please let us know this information on your old turbo :
1 . The OEM/ part number information on your original turbo nameplate
2 . The Engine code & KW , HP , Year fit for your car
3 . The Photos of your complete turbo
4. Please note that the registration number cannot identify the turbo application
