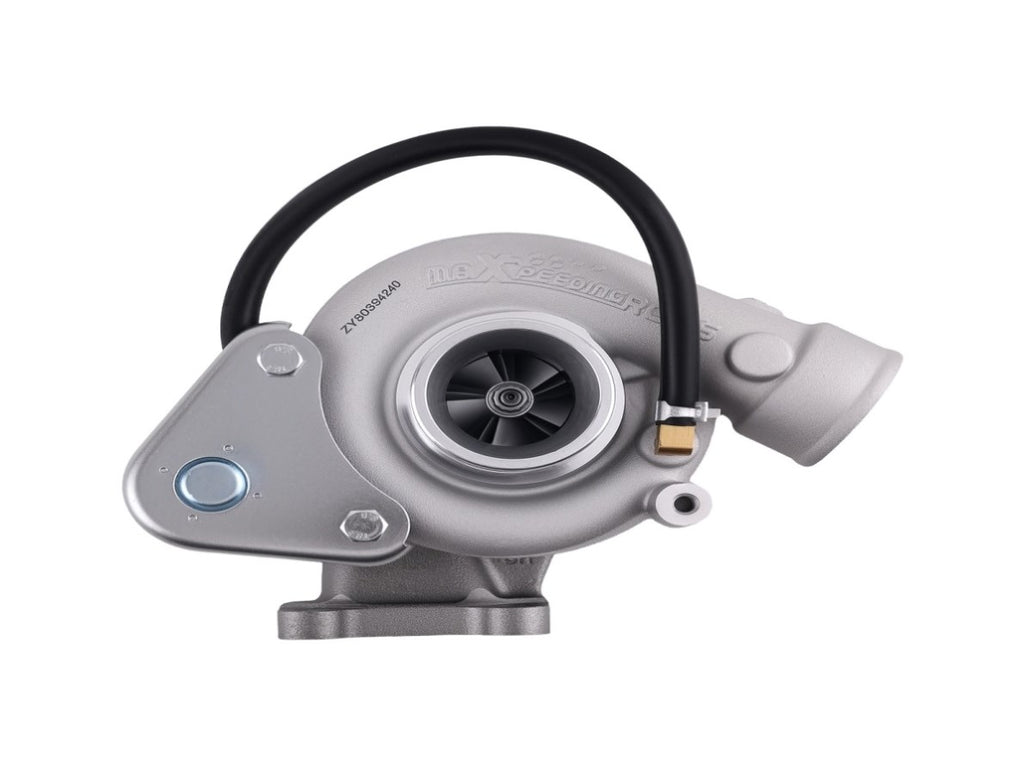

Turbocharger Kit fit for Toyota LANDCRUISER 2.4L TD 1990 2L-T -2.4 90 D 1720154060 99841548

Application:
fit for Toyota 4-RUNNER 1984- 2L-T 2.4/4 90 D
fit for Toyota 4-RUNNER 1984- 2.4L TD 2L-T -2.4 90 D
fit for Toyota Hiace 1995- 2L-T 2.4/4 90 D
fit for Toyota Hiace 1990- 2.4L TD 2L-T -2.4 90 D
fit for Toyota Hiace TD (H12) 1995-1998 2LT -2.4 90 D
fit for Toyota Hilux 1997- 2L-T 2.4/4 90 D
fit for Toyota Hilux 1997- 2.4L TD 2L-T -2.4 90 D
fit for Toyota Hilux TD (LN7RNZ) 1997-1998 2LT -2.4 90 D
fit for Toyota LANDCRUISER 1990-1996 2LT -2.4 86 D
fit for Toyota LANDCRUISER 1985-1989 2C67LT -2.4 86 D
fit for Toyota LANDCRUISER 1990- 2L-T 2.4/4 0 D
fit for Toyota LANDCRUISER 1985- 2L-T 2.4/4 90 D
fit for Toyota LANDCRUISER 2.4L TD 1985- 2L-T -2.4 90 D
fit for Toyota LANDCRUISER 2.4L TD 1990- 2L-T -2.4 90 D


Part Number:

17201-54060,1720154060, 17201 54060

17201-54061,1720154061, 17201 54061

Specification

Turbo Model : CT20
Engine: 2L-T
Cooling Type: Water + Oil cooled
Bearing Type: Journal Bearing / Floating Bearing
Thrust Bearings: 270 Degrees
Hosepower: Up to 88 HP
Turbo Type: Individual
Condition: 100% Brand New

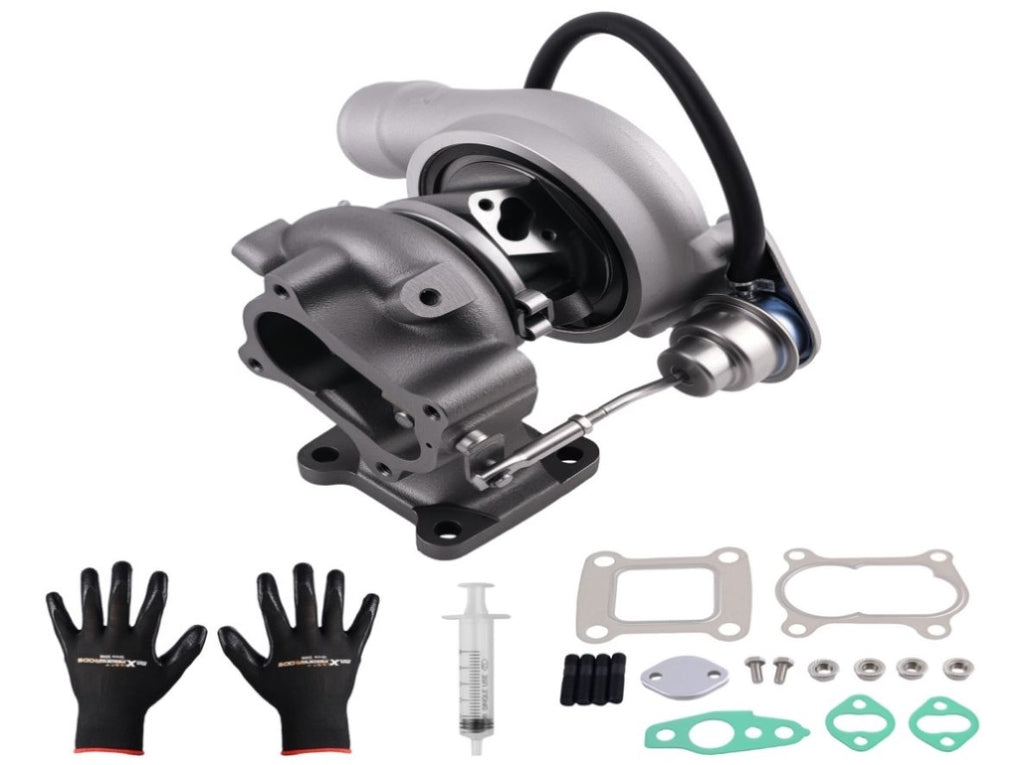

Accessories: You will receive the parts exactly as shown in the picture above
Package Size: 25x 24 x 23 cm
Package Weight: 7740g

Feature:

* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

* Product
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2. G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
