Vibration Damper Holding Tool Fit fit for Audi Skoda VW 1.8 2.0 4V TFSi EA888 Engine 60283161

Application

fit for Audi Seat Skoda VW

Engine Codes (1.8L TFSI):

BZB, CDAA, BPU, BYT, CABA, CABB, CDHA, CDHB, CABD, DAJB, CJSA, CJSB, CJEB, CJEE, CJED, CYGA, CDAC, CJSC, CGYA, DAJA

Engine Codes (2.0L TFSI):

CAWB, CCZA, CBFA, CCTA, CDNB, CDNC CDND, CJXA, CJXE, CJXH, CHHB, CHHA, CULA, CFKA, DEDA, CHJA, CAWA, CCZC, CCZD, CPSA, CJKA, CJKB, CESA, CETA, CFPA, CNCD, CPLA, CYRB, CYRC; CNCE, CYNB, CYPA, CULB, CULC, CNCB, CWZA, CJXF, CJXC, CJHB, CJXB

OE/Part number

T10531

Specification

Condition: Brand new

Material: Steel

Reverse Fixation Tool Size: 30x12cm / 11.81"x4.72"

Reverse Fixation Tool Inside Diameter: 4.7cm / 1.85"

Hole Size: 9mm / 0.35"

Thread Size: M16 x 1.5, 1/4-25 UNF

Replacement: Direct replacement

The vibration damper holding tool is used to fix the timing chain drive sprockets while installing and removing the vibration damper on 4cyl 1.8L 2.0L 4V TFSI EA888 engines.

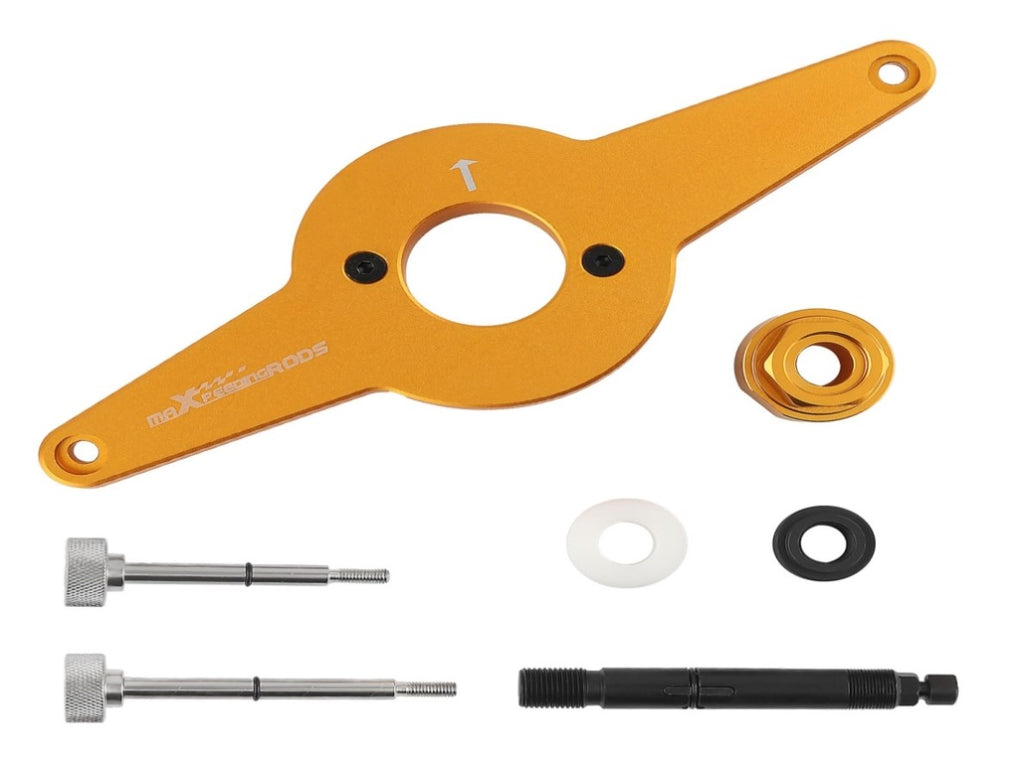

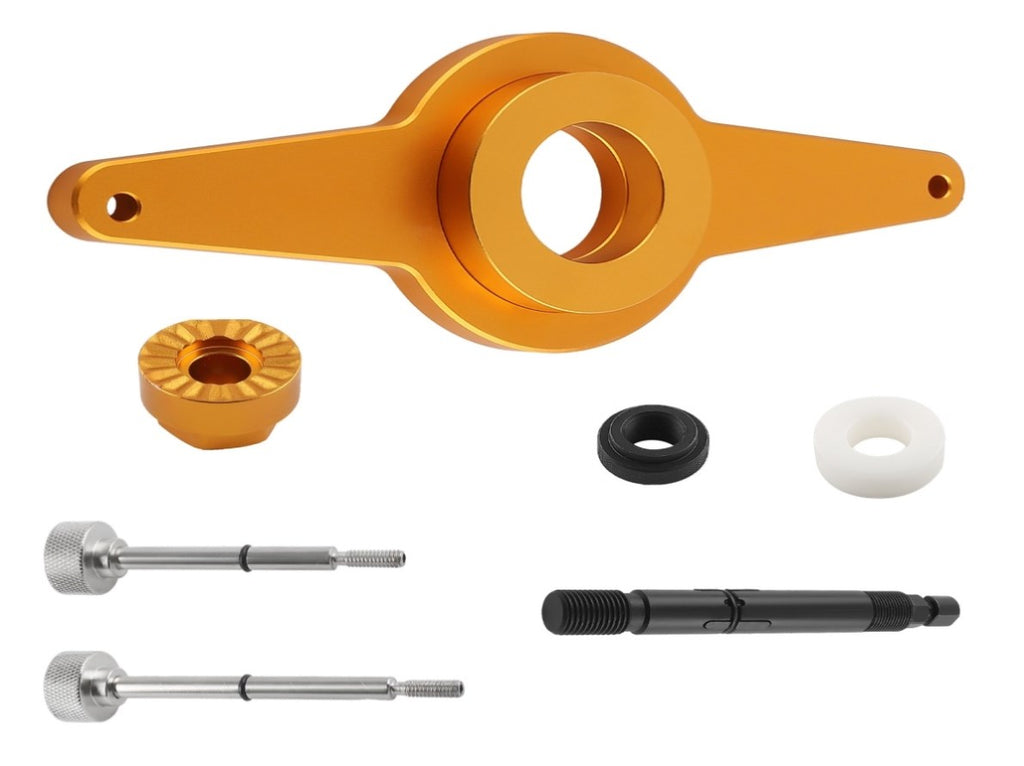

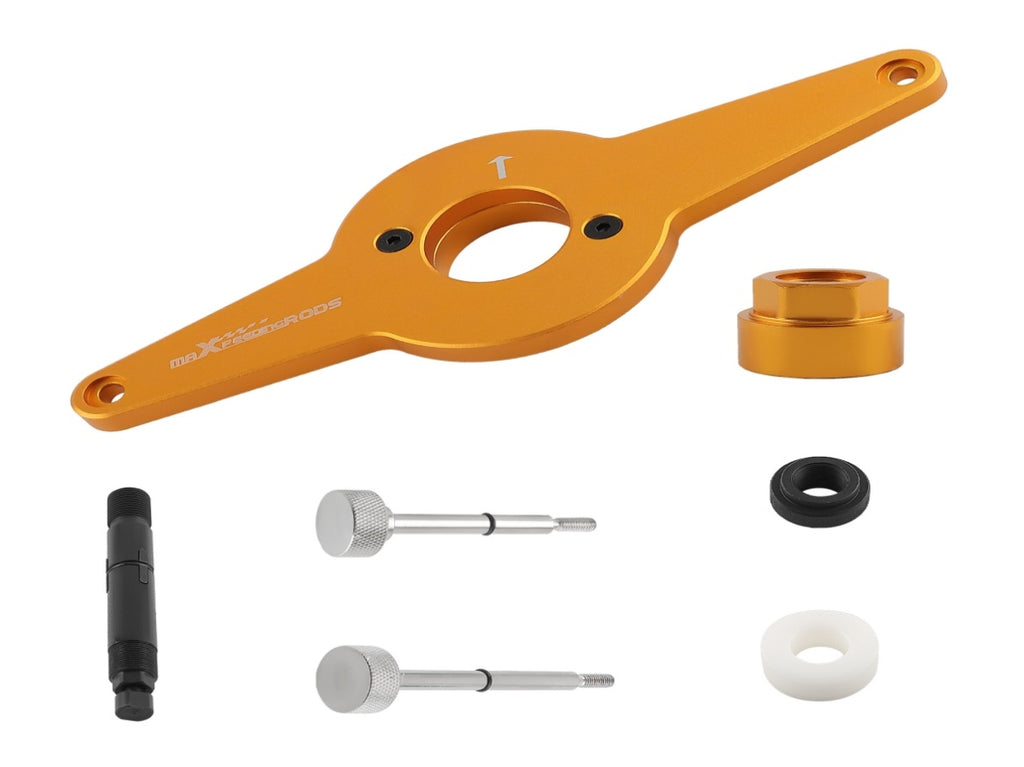

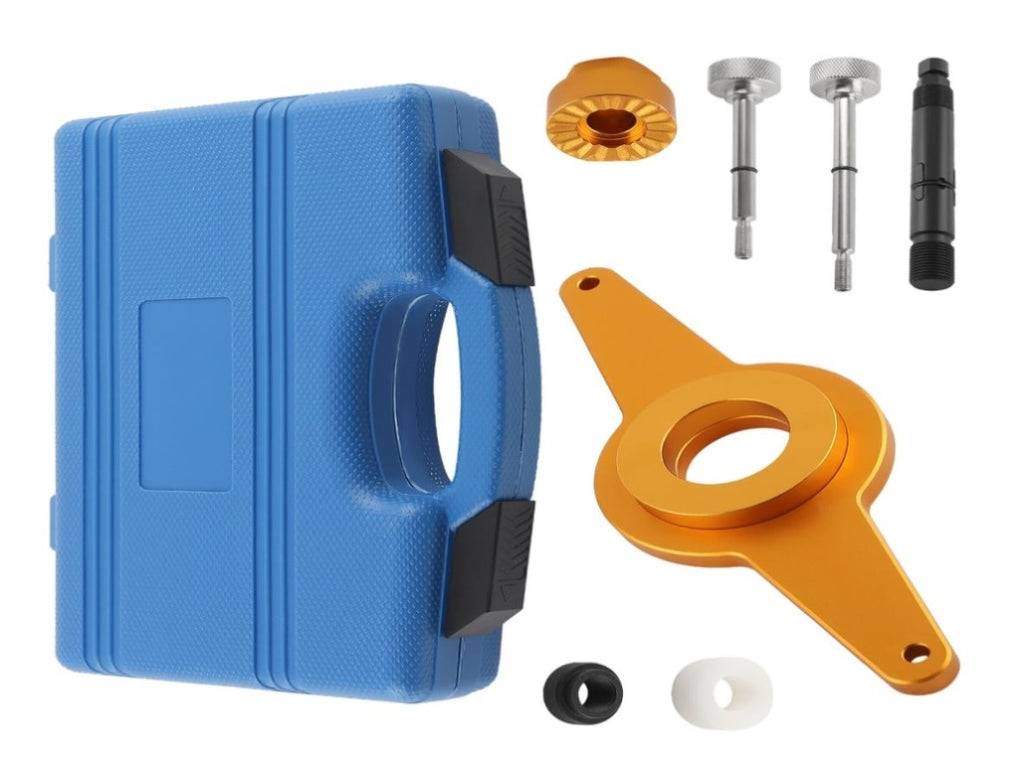

Package included

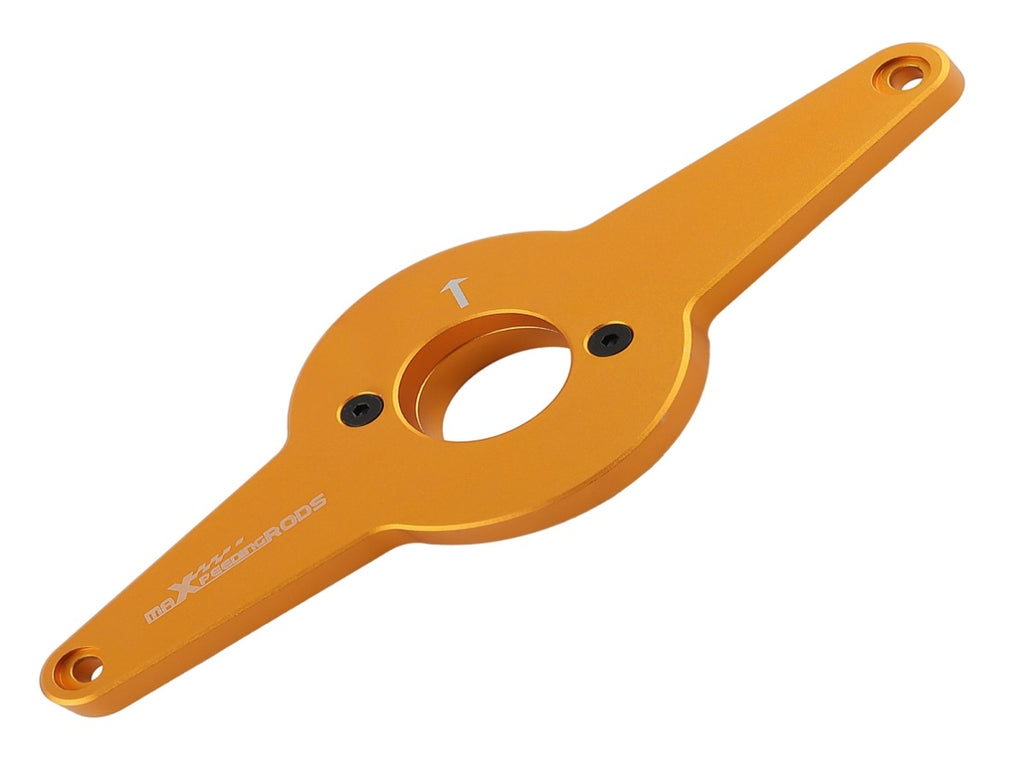

Assembly of timing fixing bracket (T10351/1)

Tightening screw pin (T10351/2)

Flip tool (T10351/3)

Flange nut (T10351/4)

Crankshaft press block (T10368)

Support fixing screw *2

（as shown in the picture ）

Feature

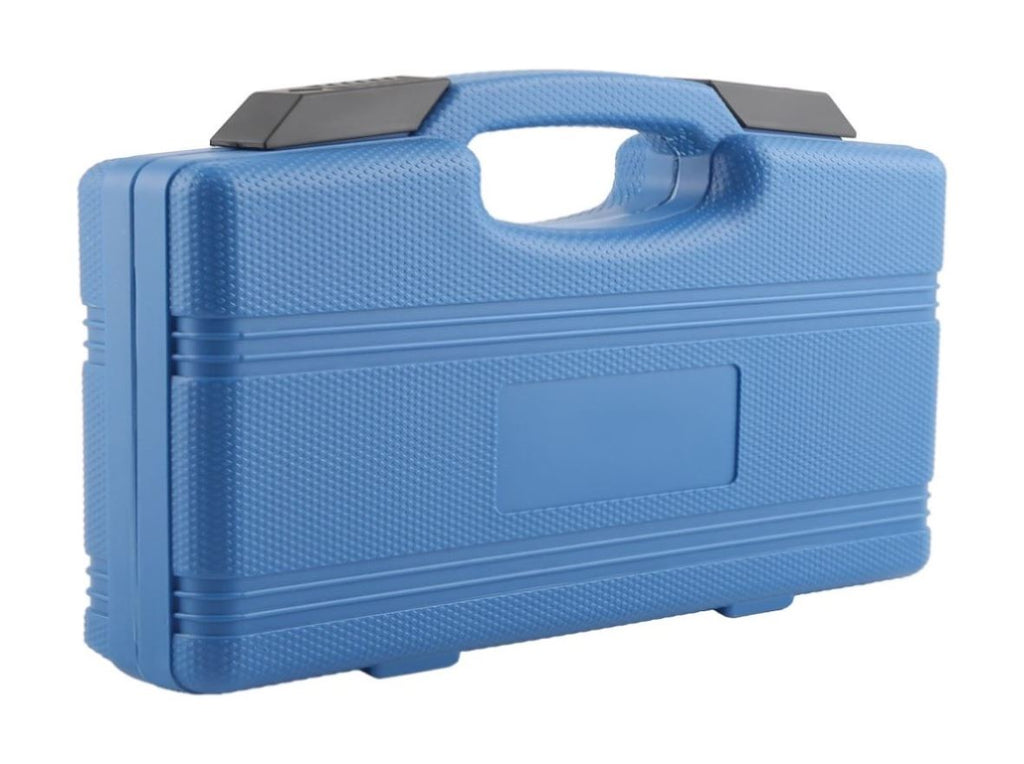

Convenient to transport and store. Comes with a carrying case, includes counter hold tool, tension pins, turning over tool, knurled nut.

Made of high quality material, with high strength, anti-rust, not easy to break.

Note

There might be a bit color distortions due to different computer resolutions.

There might be a slight errors due to different hand measurement.

Please make sure your original part number matches one of the numbers in this listing and compare with the images provided here to ensure fit before purchasing.
