ZUN Turbo charger 0.63A/R for Nissan SKyline R32 R33 R34 RB20 RB20DET RB25DET 500BHP 55060401

SKU: GT-55060401
  • Sale
  • Regular price $255.00
Tax is calculated at next step but shipping is free.



Turbo charger 0.63A/R for Nissan SKyline R32 R33 R34 RB20 RB20DET RB25DET 500BHP

Application:

Directly bolt on for Nissan Skyline R32 R34 2.0L-2.5L RB20DET RB25DET Engine.

For RB20 / RB20E / RB20ET / RB20DE / RB20DET / RB20DET-R / RB20P / RB20DE NEO / RB25DE / RB25DENEO / RB25DET / RB25DET NEOEngine

For some R33 models few modifications may be required(A direct Bolt on turbo upgrade for RB20DET and RB25DET for Skyline Engines!

Will require a coupler to connect turbo to hotpipe but other than that its a OEM Bolt on with upgrade 3" air inlet and larger wheels for optimum power. )

Specification:

Compressor Size:

CompressorTrim:48.1

CompressorInducer Diamter:52.7 mm

CompressorExducer Diamter:76mm

CompressorA/R:0.5

Turbine Size:

Turbine Inducer Diameter: 64.4mm

Turbine Exducer Diameter: 47.9mm

Turbine Trim: 55.3

Turbine A/R: 0.63

Exhaust (Turbo Manifold) Flange:T3 flange

Exhaust Outlet Flange:6 bolt Flange

Cooling Type:Water Cooled

Horse Power:Boost Horse Power up to 500 BHP

Bearing Type:Journal Bearing

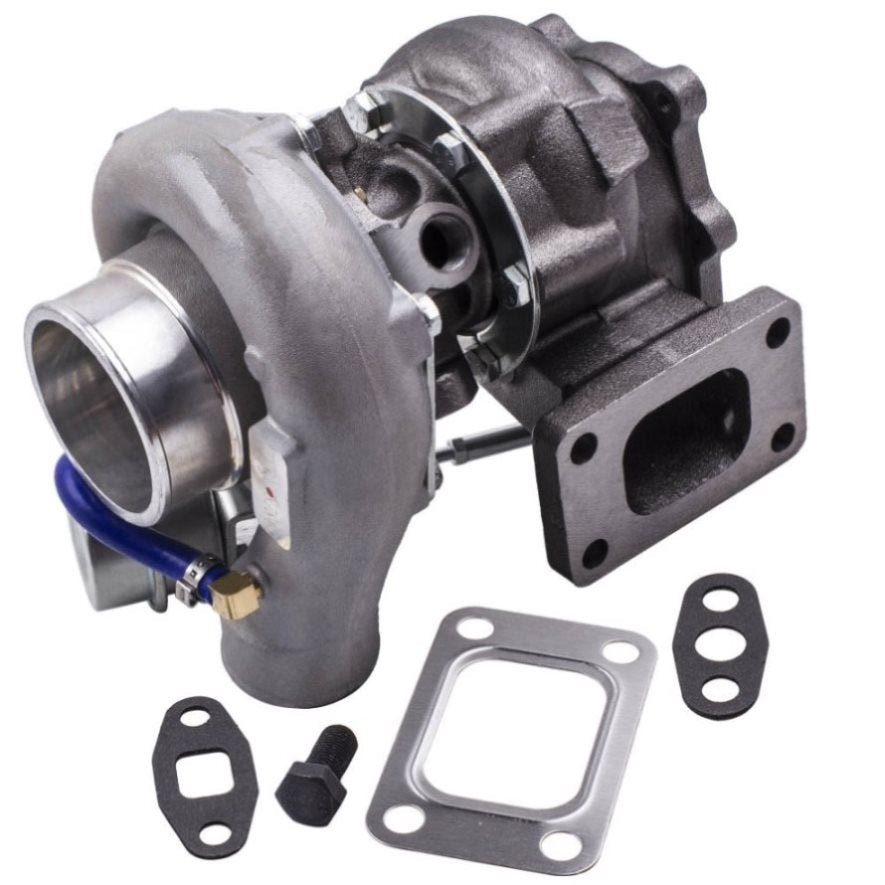

Accessories:You will get exactly as picture shown

Oil Inlet:M12*1.25, side hole: M8*1.25

Oil Return:18,side hole: M8*1.25, Center-center: 50.8

Water Hole:M18*1.5

Internal Wastegate:Yes

Feature:

*Product Material

1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700°C

2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900°C

3. Compressor housing: ZL104 aluminum with lightweight

4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

*Product Performance

1. Cost-effective turbo increase 20-40% power for your car

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

4. Built for durability and strength

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS VSR3

3. Advanced Actuator Tester/Programmer

Note:* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding

* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
